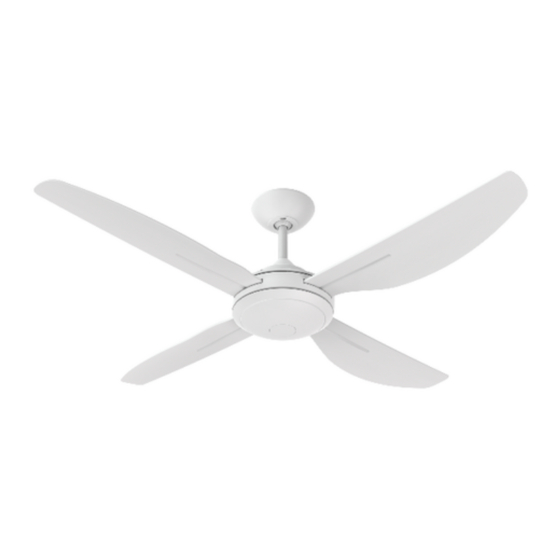

- Page 1 SERENE AC CEILING FANS 4 BLADES Instruction Manual...
- Page 2 5. Blades provided are paired for individual fan and must not be mixed with blades from other fans. This may affect performance and cause vibration/wobble. If unusual oscillating movement is observed, stop using the ceiling fan immediately and contact Legrand Australia, its service agent or a suitably qualified person. QUICK-FIT BLADE INSTALLATION A.
- Page 3 FIXING THE MOUNTING BRACKET TO CEILING Select a suitable location for the fan. Use the 2 coach screws provided (or similar) to make an attachment to a solid structural member. Ensure the mounting method is capable of supporting a hanging weight of 30 kg. Fix mounting bracket (supplied) firmly to timber or concrete.
- Page 4 POWER SUPPLY CONNECTION TO THE TERMINAL BLOCK A. Connect supply wiring to the terminal block provided in hangsure bracket. Max. Torque:0.4 Nm SUPPLY WIRING BRACKET 230-240 V ~ HANGING THE FAN ON THE BRACKET • After completing the electrical connection at the mounting bracket terminal block, connect the ceiling fan by joining the male and female connector plugs (See Fig.1).
- Page 5 FAN WALL CONTROL The ceiling fan comes with a Legrand Excel life rotary 3-speed control. Fan wall control only (Supplied) Note: Legrand Excel Life rotary 3 speed fan control (Cat. No:ED3FCSERWE) is available as spare part. ACCESSORIES (SOLD SEPARATELY) Remote control...
- Page 6 DOWNROD INSTALLATION REMOVING THE ROD Warning: Ceiling fan must be mounted so that blades are 2.1m from the floor and 300mm from the wall and other obstructions to the blade tip (Refer to Section 2. Fixing the mounting bracket to ceiling on page 2). Make sure the power is switched OFF during installation.
- Page 7 ■ Legrand offers this product with a 6 year (2 year + 4 year) express warranty. The first 2 years are in-home whereas the following 4 years are parts only. To access this warranty please contact Legrand. The following conditions apply to this express warranty: ●...
