THANK YOU

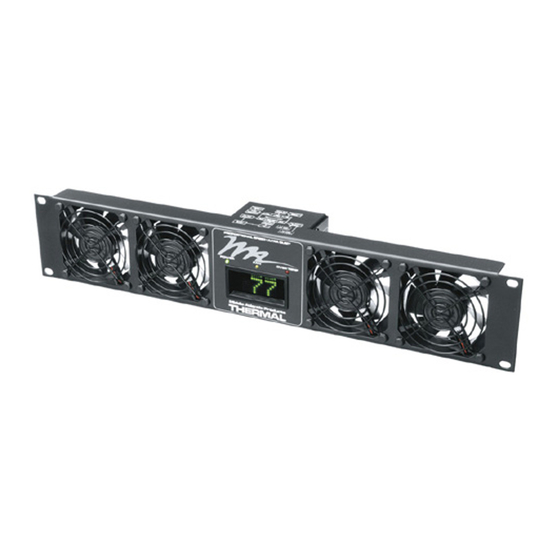

Thank you for purchasing the UQFP Series Ultra Quiet Fan Panel. Please read these instructions
thoroughly before installing this product.
PRODUCT FEATURES
- Reliable cooling with minimal noise
- Local and remote status notification
- On-board processor controls fan speed
proportional to enclosure temperature
22
PAP
Instruction Sheet
UQFP SERIES
Ultra Quiet Fan Panels
100-00080
Rev B
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for LEGRAND MIDDLE ATLANTIC UQFP Series
Summary of Contents for LEGRAND MIDDLE ATLANTIC UQFP Series

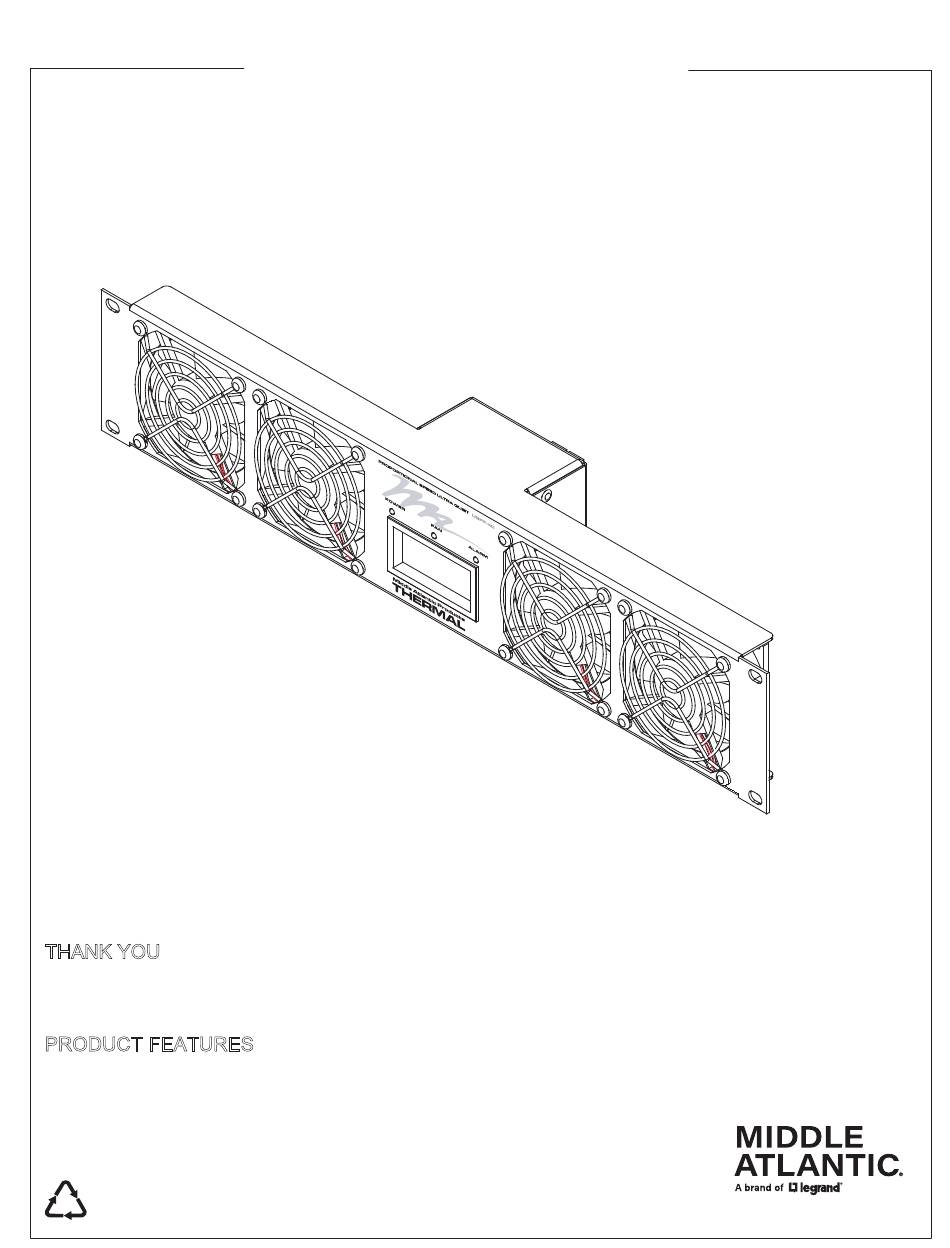

- Page 1 Instruction Sheet UQFP SERIES Ultra Quiet Fan Panels THANK YOU Thank you for purchasing the UQFP Series Ultra Quiet Fan Panel. Please read these instructions thoroughly before installing this product. PRODUCT FEATURES - Reliable cooling with minimal noise - Local and remote status notification - On-board processor controls fan speed proportional to enclosure temperature 100-00080...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS - EN • Read these instructions. • Heed all warnings. • Clean only with dry cloth. • Keep these instructions. • Follow all instructions. • Only use attachments/accessories specified by the manufacturer. UNDERSTANDING SAFETY SYMBOLS DANGER HAZARDOUS VOLTAGE: The lightning flash with the arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magni- tude to constitute a risk of electric shock to persons.
-
Page 3: Waste Electrical And Electronic Equipment (Weee) Directive
IMPORTANT SAFETY INSTRUCTIONS - EN (Continued) CAUTION: Do not plug into another relocatable power tap CAUTION: Do not plug into another relocatable power tap. CAUTION: A caution alerts you to a situation that may result in minor personal injury or damage to the product and/or property. - Page 4 INSTRUCCIONES DE SEGURIDAD IMPORTANTES - ES • Lea estas instrucciones. • Preste atención a todas las advertencias. • Limpie solamente con un paño seco. • Guarda estas • Siga todas las instrucciones instrucciones. • Utilice únicamente accesorios especificados por el fabricane UNDERSTANDING SAFETY SYMBOLS PELIGRO VOLTAJE PELIGROSO: El rayo con el símbolo de punta de flecha dentro de un triángulo equilátero alerta al usuario de la presencia de voltaje peligroso no aislado dentro del producto que puede ser de suficiente magnitud como para...
- Page 5 INSTRUCCIONES DE SEGURIDAD IMPORTANTES - ES (Continuacion) PRECAUCIÓN: No lo conecte a otro tomacorriente de energía reubicable. PRECAUCIÓN: La toma de corriente debe instalarse cerca del equipo y debe ser de fácil acceso. PRECAUCIÓN: Cualquier instalación eléctrica debe realizarse de acuerdo con los códigos eléctricos nacionales y locales. Instrucciones de seguridad: montaje en rack Ambiente de operación elevado: si se instala en un ensamblaje de bastidor cerrado o de varias unidades, la temperatura ambiente de funcionamiento del entorno del bastidor puede ser mayor que el ambiente ambiental.
- Page 6 INSTRUCTIONS DE SÉCURITÉ IMPORTANTES - FR • Respectez tous les avertissements. • Nettoyer uniquement avec un chiffon sec. • Lire ces instructions. • Suivez toutes les instructions • N'utilisez que des accessoires spécifiés par le fabricant. • Conservez ces instructions. COMPRENDRE LES SYMBOLES DE SÉCURITÉ...
- Page 7 INSTRUCTIONS DE SÉCURITÉ IMPORTANTES - FR (Continuer) ATTENTION: Ne branchez pas dans une autre puissance robinet relocalisable. ATTENTION: La prise de courant doit être installée près de l'équipement et doit être facilement accessible. ATTENTION: Toute installation électrique doit être effectuée conformément aux codes électriques nationaux et locaux. Consignes de sécurité: montage en rack Température de fonctionnement élevée: Si installé...
- Page 8 SPECIFICATIONS UQFP-2 & UQFP-2D/IUQFP-2 & IUQFP-2D Current Draw: 270 mA @ 5V DC (UQFP-2/IUQFP-2) Airflow: 50 CFM @ Full Speed 310 mA @ 5V DC (UQFP-2D/IUQFP-2D) RPM: 1900 @ Full Speed Noise: 24 dB @ Full Speed UQFP-4 & UQFP-4D/IUQFP-4 & IUQFP-4D Current Draw: 510 mA @ 5V DC (UQFP-4/IUQFP-4) Airflow:...
-
Page 9: Front View
FUNCTIONS Models UQFP-2 & UQFP-4/IUQFP-2 & IUQFP-4 (UQFP-4 Model Shown) FAN (YELLOW) POWER (GREEN) OVERTEMP (RED) FRONT VIEW 5V DC INPUT JACK OVERTEMP ALARM OUTPUT DO NOT OPEN. NO USER SERVICEABLE PARTS INSIDE. OVER 5VDC TEMP ALARM (N.O.) TEMPERATURE PROBE REAR VIEW POWER (GREEN): This LED indicates that the unit is receiving power. -
Page 10: Power (Green)
Models UQFP-2D & UQFP-4D/IUQFP-2D & IUQFP-4D (UQFP-4D Model Shown) FAN (YELLOW) POWER (GREEN) ALARM (RED) DISPLAY FRONT VIEW POWER (GREEN): This indicates that the unit is receiving power. FAN (YELLOW): When rack temperature reaches 81 F (27 C), this LED will begin to flash indicating that the fans have turned on. -
Page 11: Side View
OVERTEMP ALARM OUTPUT FAN FAULT ALARM OUTPUT 5V DC INPUT JACK DO NOT OPEN. NO USER SERVICEABLE PARTS INSIDE. OVER 5VDC FAULT TEMP ALARM ALARM (N.O.) (N.O.) TEMPERATURE PROBE REAR VIEW ALARM SET POINT BUTTON CONTROL SETTINGS PUSH Press once to view the current overtemp alarm setting. -
Page 12: Temperature Probe
INSTALLATION UQFP-2D (left) & UQFP-4D (right) Shown. E T T IN G P re s s o n c e o v e to v rt e ie w E a c a la th e d d it th e c u rr o v e io n... - Page 13 THERMAL MANAGEMENT GUIDELINES - Mount fan panel in highest available location of enclosure. - Use vent blockers to cover any vent at the top of side panels. - Do not place vent panels within six rackspaces below fan panel. Cover any of these spaces. - If heat producing equipment is in the middle of the rack, use a 3 space vent panel at the bottom - Use a 2 space vent panel if heat producing equipment is at the bottom of the enclosure.
-
Page 14: Warranty
Unit C, Island Rd. Eden Prairie, MN, 55344, USA DK, Weert, Netherlands Reading RG2, 0RP- UK At Legrand AV Inc. we are always listening. Your comments are welcome. Legrand AV is an ISO 9001 and ISO 14001 Registered Company. Page 14...
