LEGRAND HPM Inspire Instruction Manual

Product Notes
This product must be installed by a licensed electrician and used as
1.
per these instructions.
2. This product contains no serviceable parts and no attempt should
be made to repair this product. If the product is faulty it should be
discarded.
3. This product must be cleaned periodically with a damp cloth.
Cleaning agents and solvents should never be used.
4. This product has been designed to operate in ambient temperatures
between 5°C to 40°C.
5. This product must be securely attached to a structural member for
support. Fixing means (hooks & brackets) must be fixed to the
structural member with sufficient strength to withstand 4 times the
weight of the ceiling fan.
6. During installation the mains supply wiring terminals should be
tightened between 0.4Nm and 0.6Nm. Over-tightening may damage
the terminal. Under-tightening may result in hot joints.
7. This product is for Indoor use only. This product is not intended to
be exposed to direct weathering. It is not suitable for installation
in hazardous and/or corrosive areas. It is not suitable for marine
environments such as areas subjected to salt spray and/or mist.

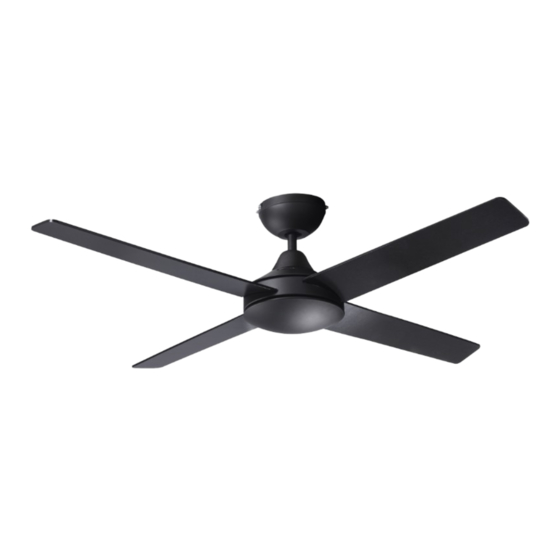

Inspire Ceiling Fans
RCF12H4WE Inspire Ceiling Fan Plywood, 4 Blades, 1220 mm, 48", Hangsure - White
RCF12H4BL Inspire Ceiling Fan Plywood, 4 Blades, 1220 mm, 48", Hangsure - Black
RCF12H4BS Inspire Ceiling Fan Plywood, 4 Blades, 1220 mm, 48", Hangsure - Silver
Inspire Ceiling Fan Plywood, 4 Blades, 1420 mm, 56", Hangsure - White
RCF14H4WE
RCF14H4BL Inspire Ceiling Fan Plywood, 4 Blades, 1420 mm, 56", Hangsure - Black
Remote Control for Inspire range ceiling Fans
RCFREMOTE
Warranty
Legrand warrants this product for a period of 3 years from the date of purchase.
These goods come with guarantees that cannot be excluded under the Australian and
New Zealand Consumer Laws. You are entitled to a replacement or a refund for a major
failure and for compensation for any other reasonably foreseeable loss or damage. You
are also entitled to have the goods repaired if the goods fail to be of acceptable quality
and the failure does not amount to a major failure.
See the Warranty card enclosed with this product for further details.
8. This product is not intended for use by young children or infirm
persons without supervision. Young children should be supervised to
ensure that they do not play with the appliance.
9. Extended exposure to UV rays (such as exposure to direct sunlight)
may cause discolouration of this product.
10. The material in this product may vary in colour from batch to batch.
Colour matching from one batch to another cannot be guaranteed.
11. This product has been designed to operate on a nominal supply
voltage of 230 - 240 V a.c. 50Hz.
12. After installation this product must be tested as required by the
appropriate government and/or statutory regulations.
13. This product utilises intellectual property in the form of registered
designs, trademarks, and/or patents. Such intellectual property
remains the property of Legrand in all cases.
14. Legrand reserves the right to modify the specification of this product
at anytime.
Weight
5.6 kg
5.6 kg
5.6 kg
6.1 kg
6.1 kg
Customer Service
For all Customer Service and Technical Support
please call Monday to Friday during business hours.
Legrand New Zealand
Legrand Australia
1300 369 777 0800 476 009
www.hpm.com.au www.hpm.co.nz
Paper
ABN: 31 000 102 661
Box Contents
• 2 x screws and lugs for bracket
• Motor assembly
• 12 x screws for blades
• 4 blades
• Cover plate and screws
• 3-speed fan controller
• Instruction Sheet
• Mounting Bracket
PLEASE READ ALL INSTRUCTIONS CAREFULLY. RETAIN FOR FUTURE REFERENCE. INSTALLATION MUST BE CARRIED OUT BY A LICENSED
ELECTRICAL CONTRACTOR.
Important considerations
1. The Hang-sure style is suitable for both flat and inclined ceilings (up to maximum angle of 20°).
2. This fan has been supplied with a 3-speed fan controller. It is designed to operate a single fan only.
3. The fan is to be installed so that the fan blades are more than 2.1m above floor level. Fan blades should have clearances >300mm
from any obstacles.
4. During installation a switch disconnection should be incorporated in the supply circuit (switch supplied).
5. Blades provided are paired for individual fan and must not be mixed with blades from other fans. This may affect performance and
cause vibration/wobble. If unusual oscillating movement is observed, stop using the ceiling fan immediately and contact Legrand
Australia, its service agent or a suitably qualified person.

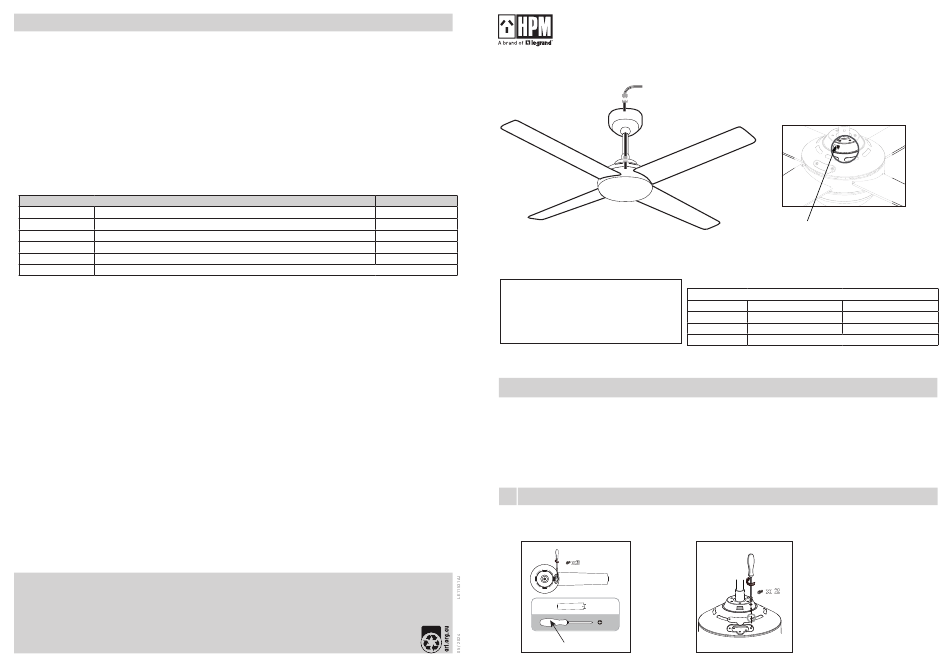

1 Fix fan blades to motor assembly
A. Assemble the blades to the motor with the
screws supplied (3 x screws per blade).
Max torque 0.5Nm
x3
x4
Magnetic Screw driver should be used
4
Inspire Ceiling Fan Plywood
Cat. No: RCF12H4WE, RCF12H4BL, RCF12H4BS
Quick- connect wiring
Summer and Winter Switch
Technical Specifications
FAN RCF12H4
Fan Motor 230-240 V a.c. 50Hz 50 W
Fan RPM Hi: 225, Med: 160, Low: 100
Fan Power Factor 0.95 @ 240 V a.c. 50 Hz
B. Assemble the cover plate to the motor housing with
2 x screws provided. Max. torque to 0.5 Nm.
x 2
RCF14H4WE, RCF14H4BL
Instruction Sheet
4-Blade Models
RCF14H4
230-240 V a.c. 50Hz 45 W
Hi: 180, Med: 115, Low: 70
1
