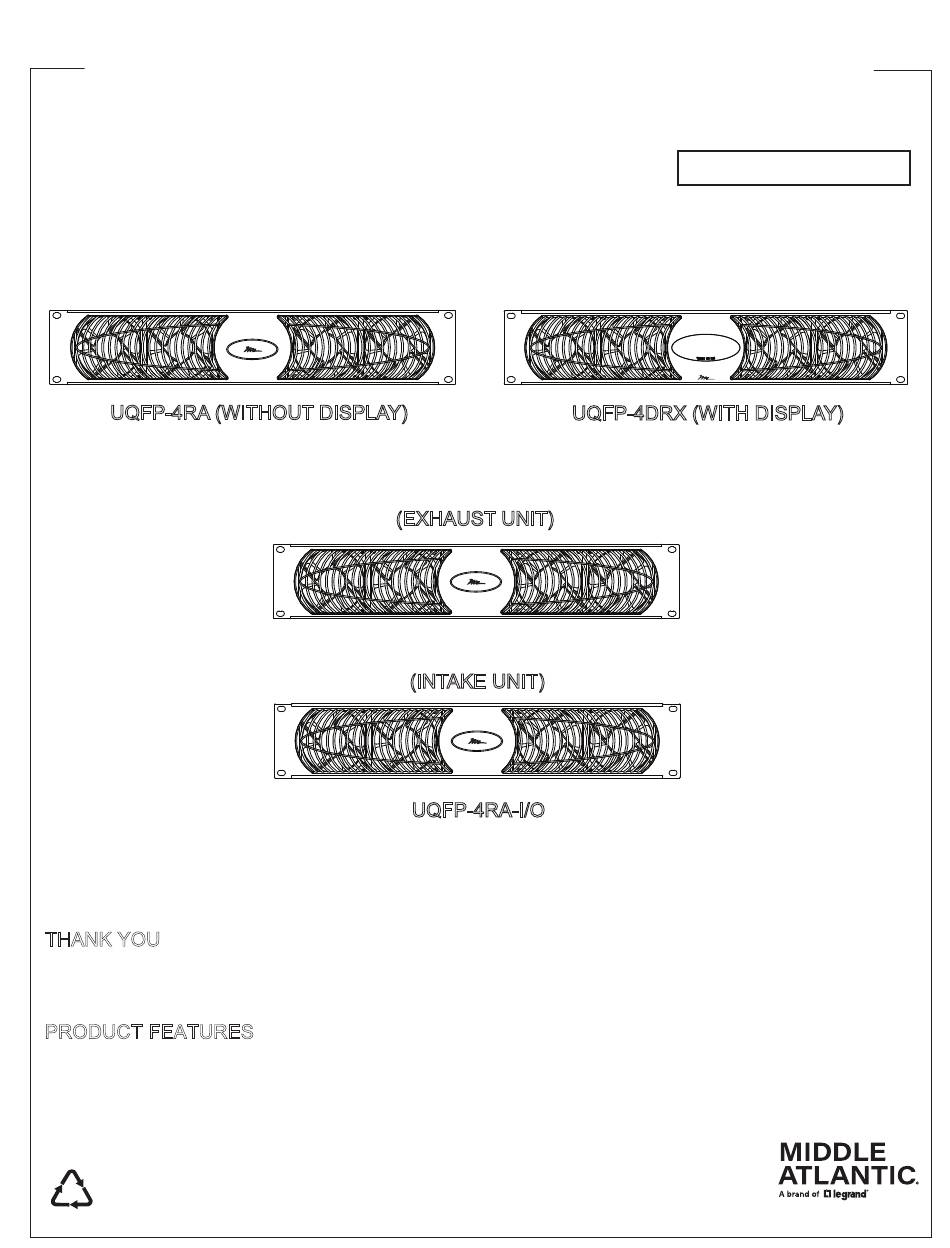

Instruction Sheet
UQFP RESIDENTIAL SERIES
Ultra Quiet Fan Panels
US Patent D537,935

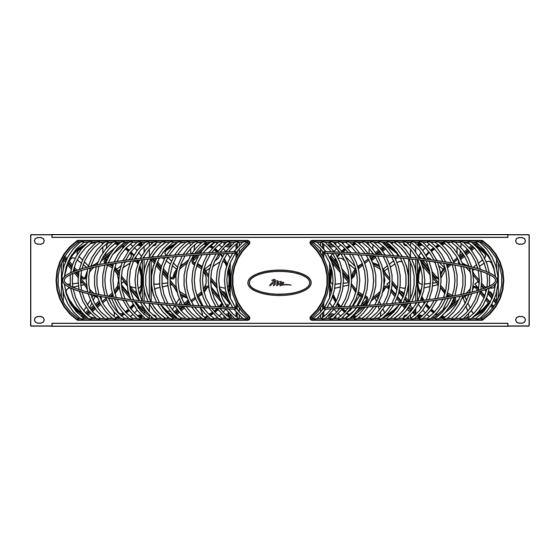

UQFP-4RA (WITHOUT DISPLAY)
UQFP-4DRX (WITH DISPLAY)
(EXHAUST UNIT)
(INTAKE UNIT)
UQFP-4RA-I/O
THANK YOU
Thank you for purchasing the UQFP Residential Series Ultra Quiet Fan Panel.
Please read these instructions thoroughly before installing this product.
PRODUCT FEATURES
- Reliable cooling with minimal noise
- Local (UQFP-4DRX only) and remote status notification
- Processor controls fan speed proportional to temperature
22
PAP
I-00449
Rev A
Advertisement
Table of Contents
Related Manuals for LEGRAND MIDDLE ATLANTIC RESIDENTIAL UQFP Series
Summary of Contents for LEGRAND MIDDLE ATLANTIC RESIDENTIAL UQFP Series
- Page 1 Instruction Sheet UQFP RESIDENTIAL SERIES Ultra Quiet Fan Panels US Patent D537,935 UQFP-4RA (WITHOUT DISPLAY) UQFP-4DRX (WITH DISPLAY) (EXHAUST UNIT) (INTAKE UNIT) UQFP-4RA-I/O THANK YOU Thank you for purchasing the UQFP Residential Series Ultra Quiet Fan Panel. Please read these instructions thoroughly before installing this product. PRODUCT FEATURES - Reliable cooling with minimal noise - Local (UQFP-4DRX only) and remote status notification...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS - EN • Read these instructions. • Heed all warnings. • Clean only with dry cloth. • Keep these instructions. • Follow all instructions. • Only use attachments/accessories specified by the manufacturer. UNDERSTANDING SAFETY SYMBOLS DANGER HAZARDOUS VOLTAGE: The lightning flash with the arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magni- tude to constitute a risk of electric shock to persons.
-
Page 3: Waste Electrical And Electronic Equipment (Weee) Directive
IMPORTANT SAFETY INSTRUCTIONS - EN (Continued) CAUTION: Do not plug into another relocatable power tap CAUTION: Do not plug into another relocatable power tap. CAUTION: A caution alerts you to a situation that may result in minor personal injury or damage to the product and/or property. - Page 4 INSTRUCCIONES DE SEGURIDAD IMPORTANTES - ES • Lea estas instrucciones. • Preste atención a todas las advertencias. • Limpie solamente con un paño seco. • Guarda estas • Siga todas las instrucciones instrucciones. • Utilice únicamente accesorios especificados por el fabricane UNDERSTANDING SAFETY SYMBOLS PELIGRO VOLTAJE PELIGROSO: El rayo con el símbolo de punta de flecha dentro de un triángulo equilátero alerta al usuario de la presencia de voltaje peligroso no aislado dentro del producto que puede ser de suficiente magnitud como para...
- Page 5 INSTRUCCIONES DE SEGURIDAD IMPORTANTES - ES (Continuacion) PRECAUCIÓN: No lo conecte a otro tomacorriente de energía reubicable. PRECAUCIÓN: La toma de corriente debe instalarse cerca del equipo y debe ser de fácil acceso. PRECAUCIÓN: Cualquier instalación eléctrica debe realizarse de acuerdo con los códigos eléctricos nacionales y locales. Instrucciones de seguridad: montaje en rack Ambiente de operación elevado: si se instala en un ensamblaje de bastidor cerrado o de varias unidades, la temperatura ambiente de funcionamiento del entorno del bastidor puede ser mayor que el ambiente ambiental.
- Page 6 INSTRUCTIONS DE SÉCURITÉ IMPORTANTES - FR • Respectez tous les avertissements. • Nettoyer uniquement avec un chiffon sec. • Lire ces instructions. • Suivez toutes les instructions • N'utilisez que des accessoires spécifiés par le fabricant. • Conservez ces instructions. COMPRENDRE LES SYMBOLES DE SÉCURITÉ...
- Page 7 INSTRUCTIONS DE SÉCURITÉ IMPORTANTES - FR (Continuer) ATTENTION: Ne branchez pas dans une autre puissance robinet relocalisable. ATTENTION: La prise de courant doit être installée près de l'équipement et doit être facilement accessible. ATTENTION: Toute installation électrique doit être effectuée conformément aux codes électriques nationaux et locaux. Consignes de sécurité: montage en rack Température de fonctionnement élevée: Si installé...
-
Page 8: Front View
SPECIFICATIONS (UQFP-4DRX AND UQFP-4RA) Airflow: 100 CFM @ Full Speed Noise: 27 dBA from 1 meter @ Full Speed Overtemp Alarm Setpoint: 100° F (37° C) Temperature Probe Wire Length: 9 Feet UQFP-4DRX/UQFP-4RA FEATURES FRONT VIEW DISPLAY NO DISPLAY UQFP-4RA/UQFP-4RA-I/O UQFP-4DRX DISPLAY (UQFP-4DRX Only) - Dimming the display is accomplished by touching anywhere on the display once. -
Page 9: Installation
FEATURES CONTINUED FAN FAULT/OVERTEMP ALARM OUTPUTS (For Optional Remote Monitoring): These normally open dry contact closures will provide notification to an external (remote) monitoring system if there is a fan fault or overtemp condition. TEMPERATURE PROBE: 9 foot temperature probe. Mount at the highest available location in the enclosure. - Page 10 THERMAL MANAGEMENT GUIDELINES - Mount the fan panel in the highest location of the rack. - Use magnetic vent blockers to cover any vents at the top of the side panels. Install the vent blockers on the inside of the side panel as shown. - Do not place vent panels within six rackspaces from below the fan panel.
-
Page 11: Warranty
Unit C, Island Rd. Eden Prairie, MN, 55344, USA DK, Weert, Netherlands Reading RG2, 0RP- UK At Legrand AV Inc. we are always listening. Your comments are welcome. Legrand AV is an ISO 9001 and ISO 14001 Registered Company. Page 12...
