Remote Controller - Daikin GTKC48UV16W Operation Manual

■
Read before Operation

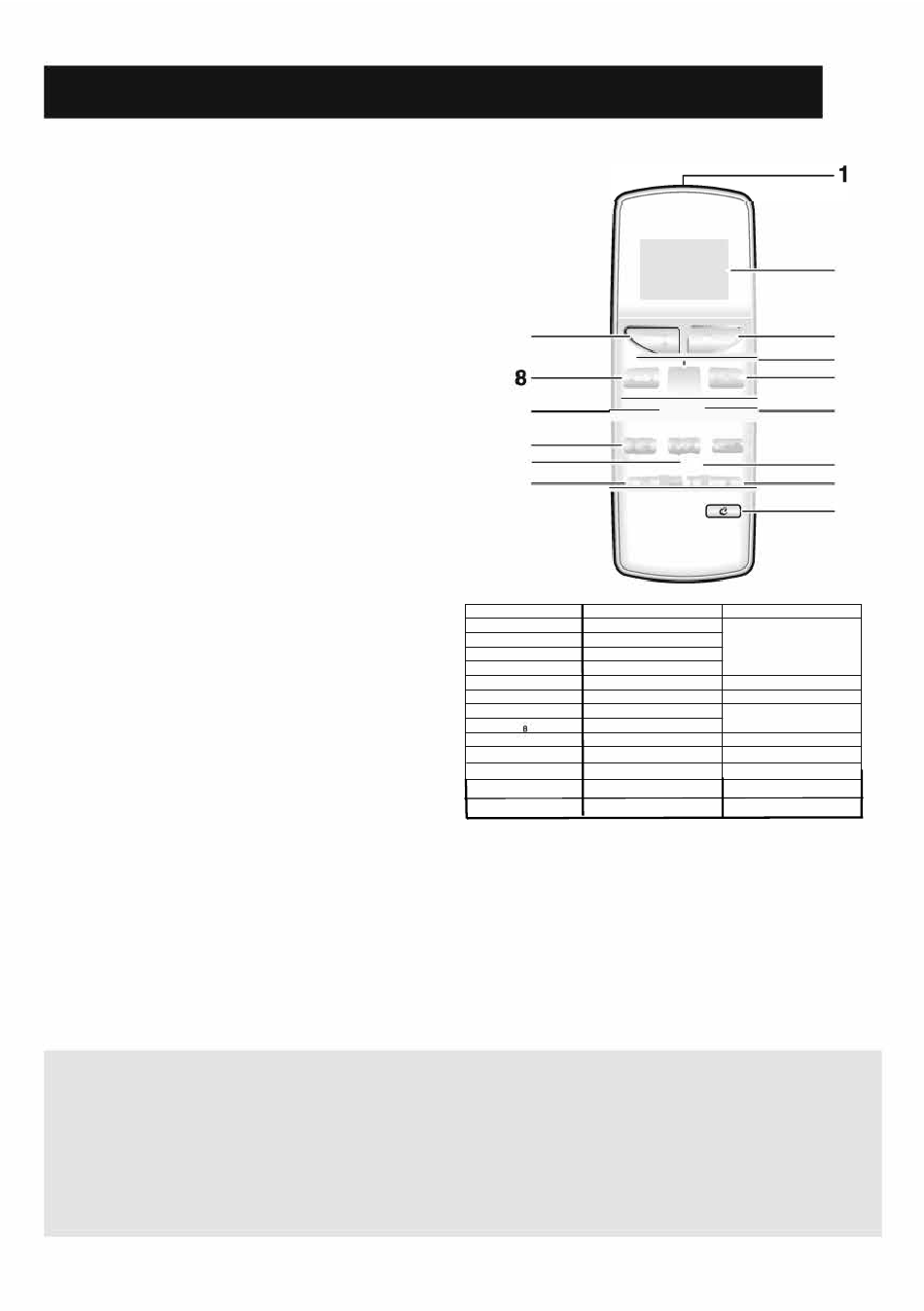

Name of Parts
■

Remote Controller

1. Signal transmitter:
• Send signals to the indoor unit.
2. Display {LCD):
• Displays the current setting.
(In this illustration, each section is
shown with its display on for the
purpose of explanation.)
3. ON/OFF button:
• Press this button once to start operation.
Press once again to stop it.
4. TEMPERATURE adjustment button:
• Changes the temperature setting.
5. FAN setting button:
• Selects the airflow rate setting.
6. SWING button:
• Adjusts the airflow direction.
7. POWER CHILL button:
POWER CHILL operation.
8. MODE selector button:
• Selects the operation mode.
(DRY/COOUFAN)
9. ECONO button:
• ECONO operation.
10.COANDA/STREAMER button:
• COANDA/STREAMER operation.
11. TIMER CANCEL button:
• Cancels the timer setting.
12.ON TIMER button
13.OFF TIMER button
14. GOOD SLEEP/DISPLAY button
15. DEW CLEAN button
NOTE
Notes on remote controller
• Never expose the remote controller to direct sunlight.
• Dust on the signal transmitter or receiver will reduce the sensitivity. Wipe off dust with soft cloth.
• Signal communication may be disabled if an electronic-starter-type fluorescent lamp (such
as inverter-type lamp ) is in the room. Consult your service centre if that is the case.
• If the remote controller activates other electric devices, move them away or consult your service centre.
• Remote appearance may
3
vary
as per applicable model.
