Summary of Contents for Daikin FTKL71UV16M

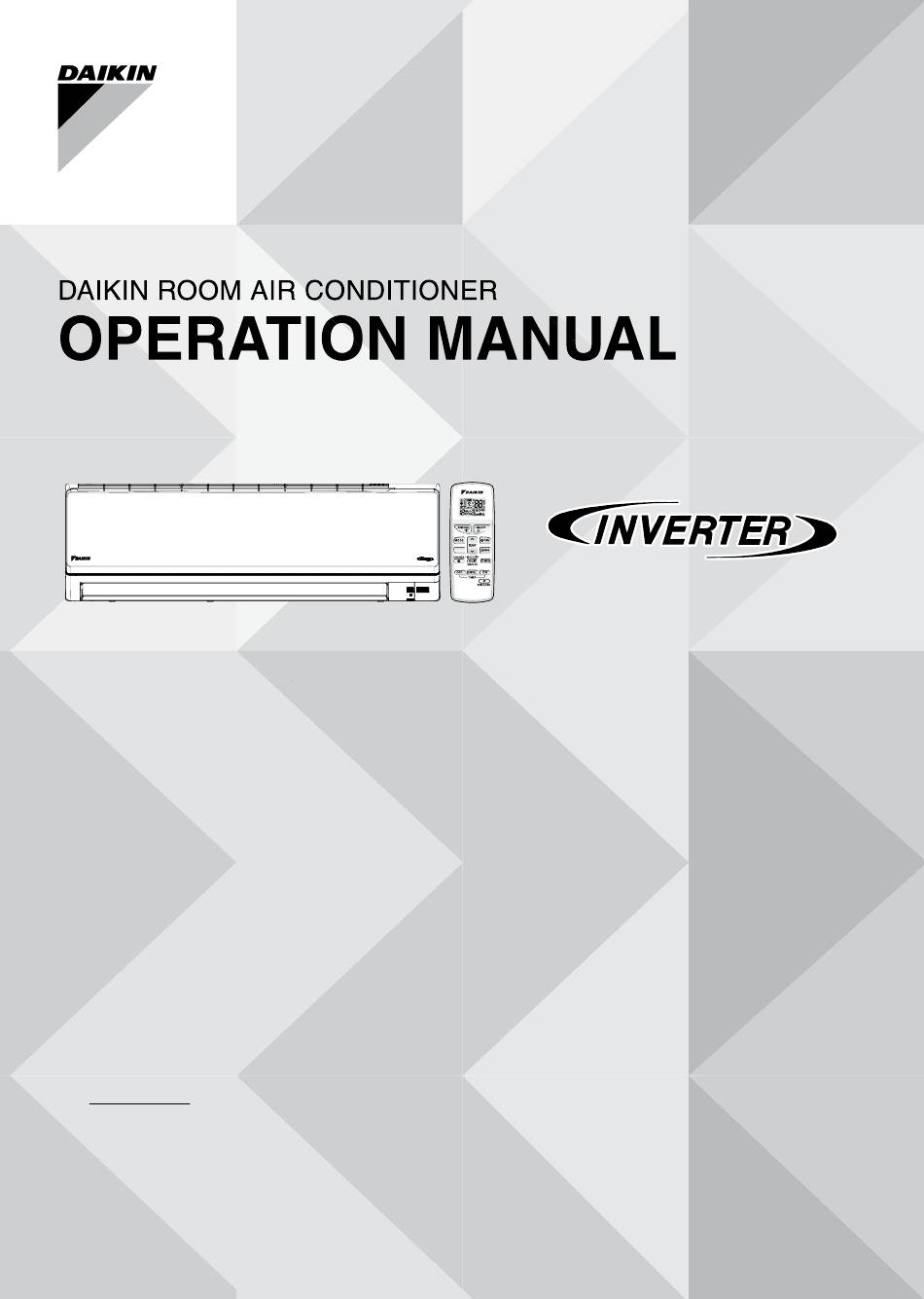

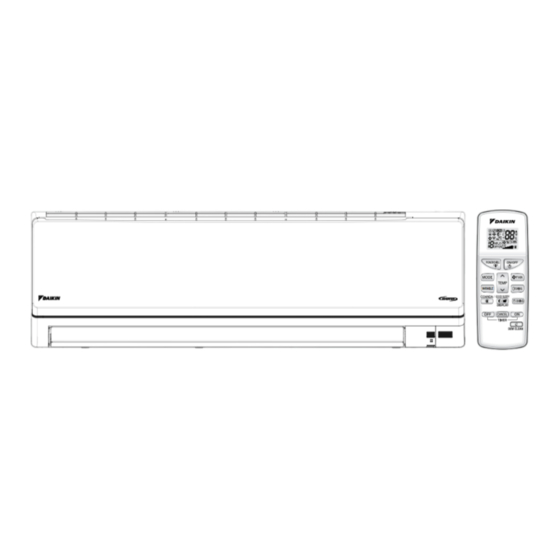

- Page 1 3P719813-18S VARIABLE MODEL: FTKL71UV16M FTKM60UV16M GTKL71UV16M GTKM60UV16M...
- Page 2 Safety Precautions .&, CAUTI O N--------- • Keep this manual where the user can easily find it. • Read the precautions in this manual carefully before operating the unit. • Do not use the air conditioner for purposes other than •...
- Page 3 *Features/parts available with selected models...
- Page 4 VARIABLE S.NO MODEL NO. REMOTE NO. FTKL71UV16M ARC484B52 FTKM60UV16M GTKL71UV16M ARC484B62 GTKM60UV16M VARIABLE button: VARIABLE operation.
- Page 5 Read before Operation Preparation before Operation & CAUTION----------------- incorrect handling of batteries can result in injury from battery leakage, rupturing or heating, or lead to equipment failure. Please observe the following precautions and use safely. • If the solution from the batteries should get in the eyes, do not rub the eyes. Instead, immediately flush the eyes with tap water and seek the attention of a medical professional.
-
Page 6: Dry · Cool · Fan Operation
Operation DRY · COOL · FAN Operation The air conditioner operates with the operation mode of your choice. From the next time on, the air conditioner will operate with the same operation mode. ■ ■ To start operation To stop operation 1. - Page 7 VARIABLE and POWERFULL button VARIABLE VARIABLE...
-
Page 8: Adjusting The Airflow Direction
Operation Adjusting the Airflow Direction You can adjust the airflow direction to increase your comfort. &CAUTION • Always use a remote controller to adjust the angles of the flaps. Moving the flaps forcibly by hand may cause a malfunction. • Be careful when adjusting the louvres. Inside the air outlet, a fan is rotating at a high speed. ■To start auto swing Upper and lower airflow direction �... - Page 9 Operation COANDA & POWER CHILL Operations COANDA Operation POWER CHILL Operation POWER CHILL operation quickly maximises the Directs airflow upward.This function prevents air cooling effect in any operation mode. In this mode, from blowing directly at users. the air conditioner operates at maximum capacity. ■...
- Page 10 Operation TIMER/GOOD SLEEP Operation TIMER Operation GOOD SLEEP Operations ■ �,9,� , D SL � EP OFF TIMER � peration. To use Timer functions are useful for automatically 1. Press durmg COOL operation. □ switching the air conditioner on or off in the •...
- Page 11 conditioner in standby mode. conditioner in standby mode.
- Page 12 “Ld” indicates for the brightness (Light) feature which is appeared on set temperature area. Remote will be in High Brightness Intensity by default whenever batteries inserted. Keep this in mind that If user sets LED lights to be in “OFF” state (using Brightness control feature) and if Power ...
- Page 13 DEW CLEAN function aids in cleaning the accumulation of dust and stains on the Indoor Heat Exchanger. To start the DEW CLEAN operation : Using the remote, turn on the air conditioner. Press, hold and release the “ ”...
- Page 14 VARIABLE Operation Variable operation provides users with manual control to select the air conditioner's capacity based on the number of persons, room size, and outside conditions. Users can adjust the air conditioner capacity to 100% (L1), 85% (L2), 70% (L3), 55% ...
- Page 15 Care Care and Cleaning & CAUTION---- -------- ----- • Before cleaning, be sure to stop the operation and turn off the circuit breaker. Units ■ Indoor unit and remote controller 1. Wipe them with a dry soft cloth. ■ Front panel 1.
- Page 16 Care Care and Cleaning &CAUTION • Do not touch the aluminium fins of the indoor unit. If you touch those parts, this may cause an injury. • When removing or attaching the front panel, use a robust and stable stool and watch your steps carefully. •...
- Page 17 Care Care and Cleaning [Replacement] t � t �1� Accessory filter 1. Replace the old accessory filters with new accessory filters. Accessory Filter Titanium apatite deodorizing air purifying filter/ Anti Filter type: microbial filter [Maintenance] The accessory filters can be renewed by washing them with water once every 6 months. We recommend replacing them once every 3 years.
-
Page 18: Troubleshooting
Troubleshooting Troubleshooting These cases are not problems The following cases are not air conditioner troubles but have some reasons. You may just continue using it. Case Explanation Operation does not start soon. • This is to protect the air conditioner. •... - Page 19 Troubleshooting Troubleshooting Case Explanation The indoor unit gives out • The room odour absorbed in the unit is discharged with the airflow. We recommend odour. you to have the indoor unit cleaned. Please consult your service centre. The outdoor fan rotates while ■...
- Page 20 ■ ■ ■ ■ ■ ■ ■ ■ ■ Troubleshooting Troubleshooting Call your service centre immediately � WARNING--------------- when an abnormality (such as a burning smell} occurs, stop operation and turn off the circuit breaker. Continued operation in an abnormal condition may result in problems, electric shock or fire. Consult your service centre.
- Page 21 Osaka Umeda Twin Towers South 1-13-1, Umeda, Kita-ku, Osaka 530-0001, Japan Yaesu Central Tower, Tokyo Midtown Yaesu, 2-2-1, Yaesu, Chuo-ku, Tokyo 104-0028, Japan http://www.daikin.com...
- Page 22 3P719813-18S VARIABLE MODEL: FTKL71UV16M FTKM60UV16M GTKL71UV16M GTKM60UV16M...
- Page 23 Safety Precautions • The precautions described herein are classified as WARNING and CAUTION. They both contain important information regarding safety. Be sure to observe all precautions without fail. • Meaning of WARNING and CAUTION notices & WARNING Failure to follow these instructions properly may result in personal injury or loss of life. &...
- Page 25 B Mounting plate fixing screw M4 x 25L (7 pcs.)
- Page 26 Remove the battery cover on the remote controller and cut the address jumper (J4). (The indoor unit OPERATION lamp will blink for about 1 minute.) Press the indoor unit ON/OFF switch while the OPERATION lamp is blinking...
- Page 27 Indoor Unit Installing The Mounting Plate • T he mounting plate should be installed on a wall which can support the weight of the indoor unit. 1) Temporarily secure the mounting plate to the wall, make sure that the panel is completely level, and mark the boring points on the wall.
- Page 29 Table No. 4...
- Page 30 Binding Of Insulation Pipe Sectional view 1. The slit direction should be upward. 2. It should be sealed with vinyl tape 1nsu..;:on Heatlnsuati o n"" " OIM!I" without any gap. -�- 3. Do not over tighten with vinyl tape. Communicationwire l��...
- Page 31 Outdoor Unit Installing The Outdoor Unit • When installing the outdoor unit, refer to and the "Precautions for Selecting a Location" "Outdoor Unit Installation Diagram" ..Flaring The Pipe End � WARNING c,1 o,ocily ,1 ��Remove burrs. Incomplete flaring may result refrigerant gas leakage. Flaring 1) Cut the pipe end with a pipe cutter.
- Page 32 Outoor Unit Purging Air And Checking Gas Leakage � WARNING -------------------------- • Do not mix any substance other than the specified refrigerant (R32) into the refrigeration cycle. • When refrigerant gas leaks occur, ventilate the room as soon and as much as possible. •...
- Page 33 Trail Operation And Testing 1. Trial operation and testing • Check that the inter-unit wire is correctly connected. • Trial operation should be carried out in COOL operation. 1-1 Measure the supply voltage and make sure that it is within the specified range. 1-2 Select the lowest programmable temperature.
- Page 34 210, 1st FLOOR, OKHLA INDUSTRIAL AREA, PHASE 3, DELHI-110020 Meaning of E-waste under E-Waste (Management) Rules,2022 (E-waste Rules) -Waste electrical and electronic equipment, whole or in part of reject from their manufacturing and repair process, which are intended to be discarded. Our product is RoHS compliant.
- Page 35 Indoor Unit -Wiring Diagram Applicable Model :- FTKM60UV16M, GTKM60UV16M, FTKL71UV16M & GTKL71UV16M. Outdoor Unit -Wiring Diagram Applicable Model :- RKM60UV16M, RKMG60UV16M, RKL71UV16M & RKLG71UV16M.
