 The DC/DC voltage- step up / step down converter

 Example of use: increasing voltage from 9,5V to 12V DC or

lowering voltage from 16V to 12V DC

 The input voltage range: 9,5÷16V DC

 The output voltage range: 12V DC

 The maximum load current 5A (60W)

 The PSU technical output indicating converter failure

triggered by:

 Short-circuit of the output

 Output overload

Example of use of the DC/DC50SE step up / step down DC/DC converter.

DC/DC 5A Step up / step down DC/DC converter 12V

The module's features:

Schematic diagram of the converter operation.

Converter output voltage: 12V DC, 5A max.

DC/DC50SE

v.1.0

Edition: 1 from 11.01.2016

Supercedes the edition: --------

 Protections:

 Short-circuit protection SCP

 Overload protection OLP

 High efficiency: 87%

 Optical LED indication

 Warranty – 2 years from the production date

 Mounting:

 Mounting strip with adhesive tape

 Mounting screws

EN**

Table of Contents

Need help?

Do you have a question about the DC/DC50SE and is the answer not in the manual?

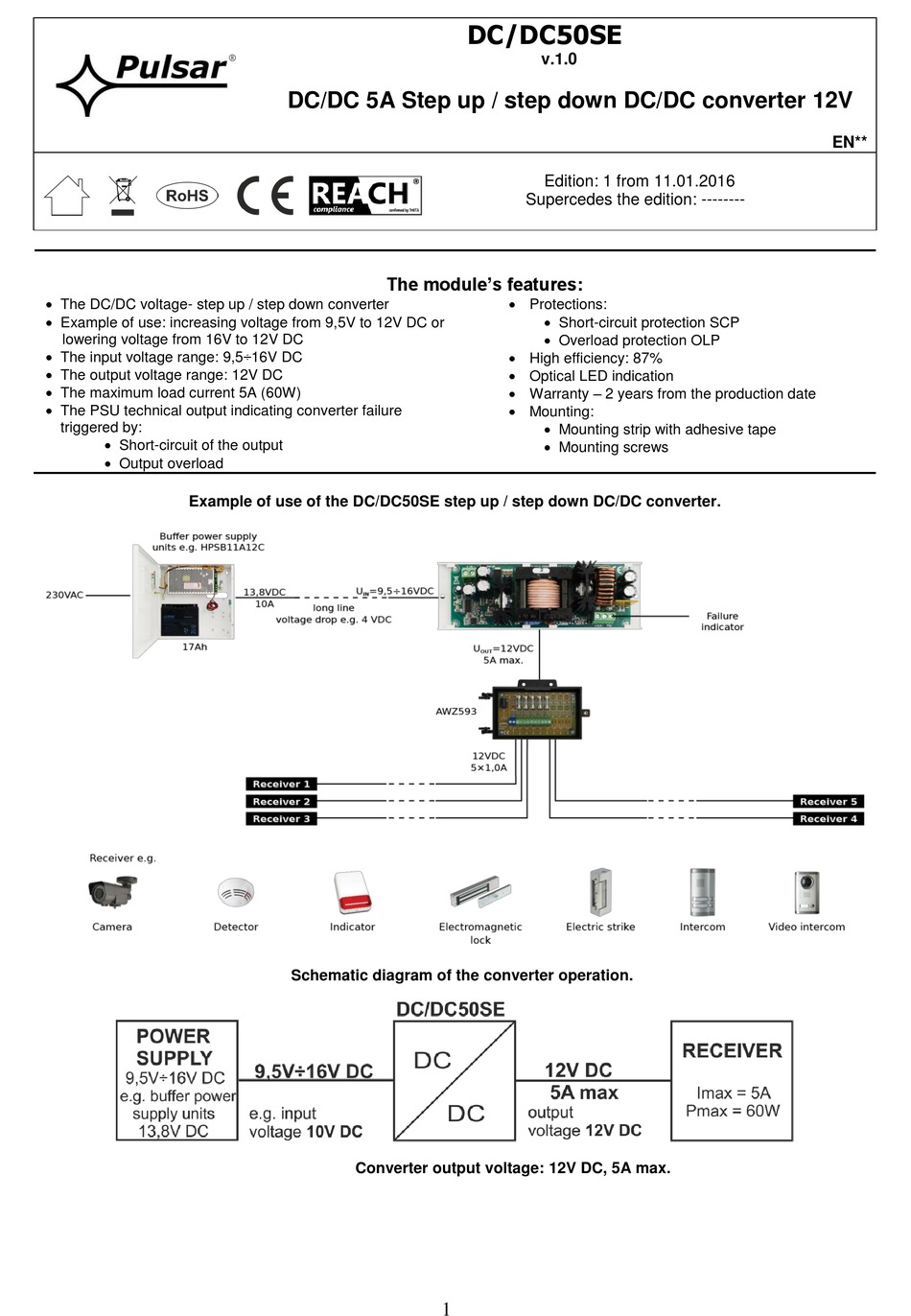

Page 1  Mounting strip with adhesive tape triggered by:  Short-circuit of the output  Mounting screws  Output overload Example of use of the DC/DC50SE step up / step down DC/DC converter. Schematic diagram of the converter operation. Converter output voltage: 12V DC, 5A max.
Page 2 Technical description The DC/DC 5A (DC/DC50SE) voltage- step up / step down converter is used for maintaining a constant output voltage 12V DC, regardless of the input voltage fluctuations in the range of 9,5V ÷ 16V DC. When the input voltage at the output is lower to 12V DC, the converter increases it to the value.
Page 3 1.3. Technical parameters: - Electrical parameters (Table 3) - Mechanical parameters (Table 4) Table 3. 9,5V÷16V DC The input voltage range (power supply) The output voltage range 12V DC P module power 60W max. 85% ÷ 87% Energy efficiency Ripple voltage 50mV p-p max Output current 5,0A max.
Page 4 Waste electrical and electronic equipment must not be disposed of with normal household waste. According to the European Union WEEE Directive, waste electrical and electronic equipment should be disposed of separately from normal household waste. Pulsar sp. j. Siedlec 150, 32-744 Łapczyca, Poland Tel. (+48) 14-610-19-40, Fax. (+48) 14-610-19-50 e-mail: biuro@pulsar.pl,...
