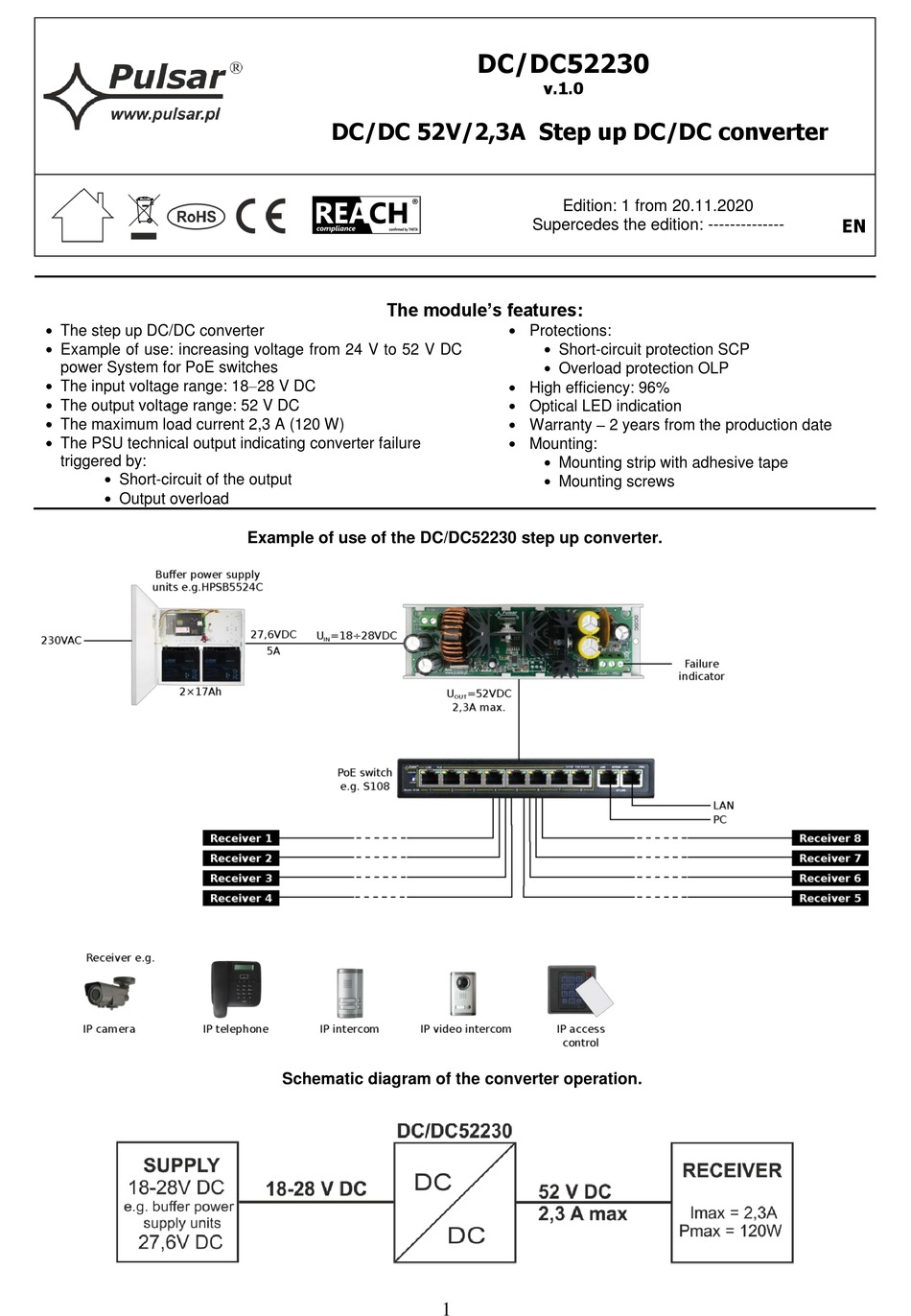

Pulsar DC/DC52230 Quick Start Manual

 The step up DC/DC converter
 Example of use: increasing voltage from 24 V to 52 V DC
power System for PoE switches
 The input voltage range: 1828 V DC
 The output voltage range: 52 V DC
 The maximum load current 2,3 A (120 W)
 The PSU technical output indicating converter failure
triggered by:
 Short-circuit of the output
 Output overload
DC/DC 52V/2,3A Step up DC/DC converter
The module's features:
Example of use of the DC/DC52230 step up converter.
Schematic diagram of the converter operation.
DC/DC52230
v.1.0
Edition: 1 from 20.11.2020
Supercedes the edition: --------------
 Protections:
 Short-circuit protection SCP
 Overload protection OLP
 High efficiency: 96%
 Optical LED indication
 Warranty – 2 years from the production date
 Mounting:
 Mounting strip with adhesive tape
 Mounting screws
