Pulsar DC/DC50HV Manual

 Step down DC/DC converter with adjustable output voltage
 Example of use: step down from 48V to 12V DC
 The input voltage range: 28÷60V DC
 The output voltage range: 12÷24V DC
 The maximum load current 5A (60W)
 The PSU technical output indicating converter failure
triggered by:
 Short-circuit of the output
 Output overload
1.

Technical description

The step down converter DC/DC 5A (DC/DC50HV) is used for step down the input voltage from the range between 28V÷60V
DC to the voltage range of 12V÷24V DC at the output, adjusted with the V
(Pmax=60W). The module does not feature galvanic isolation between input/output (IN-AUX) and operates on common "ground" (0V)
potential (IN- and AUX- terminals are galvanically connected = common terminal).

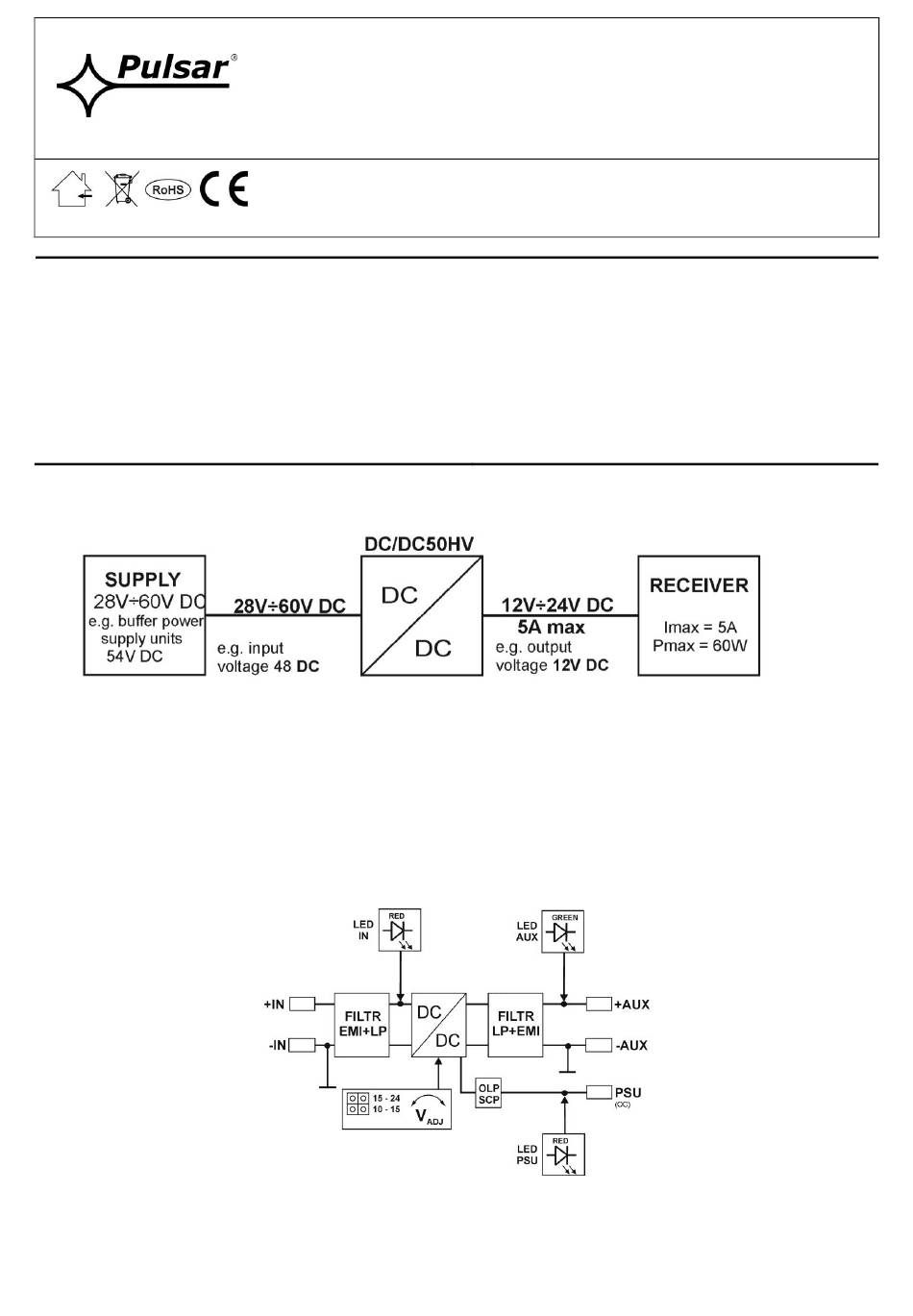

1.1. Block diagram (Fig.1).
DC/DC 5A HV Step down DC/DC converter
with adjustable output voltage
The module's features:
Schematic diagram of the converter operation.
Adjustment of the converter output voltage: 12V÷24V DC, 5A max.
Fig.1. Block diagram of the converter's module.
DC/DC50HV
v.1.0
Edition: 1 from 26.08.2015
Supercedes the edition: --------
 Protections:
 Short-circuit protection SCP
 Overload protection OLP
 High efficiency: 92%
 Optical LED indication
 Warranty – 2 years from the production date
 Mounting:
 Mounting strip with adhesive tape
 Mounting screws
potentiometer. The maximum load current is Imax=5A
ADJ
1
EN**
