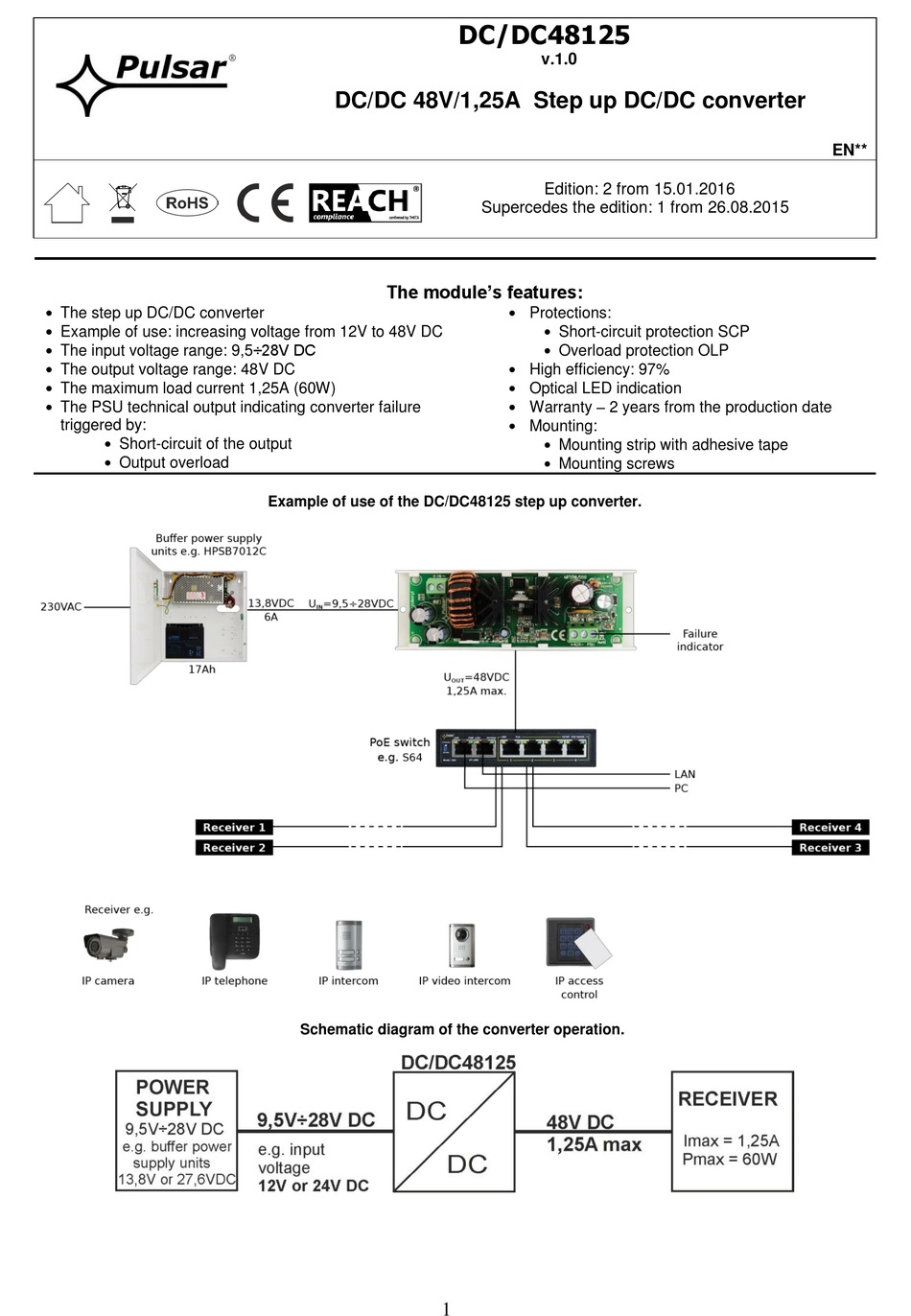

Pulsar DC/DC48125 Operation Instructions

 The step up DC/DC converter
 Example of use: increasing voltage from 12V to 48V DC
 The input voltage range: 9,5÷28V DC
 The output voltage range: 48V DC
 The maximum load current 1,25A (60W)
 The PSU technical output indicating converter failure
triggered by:
 Short-circuit of the output
 Output overload

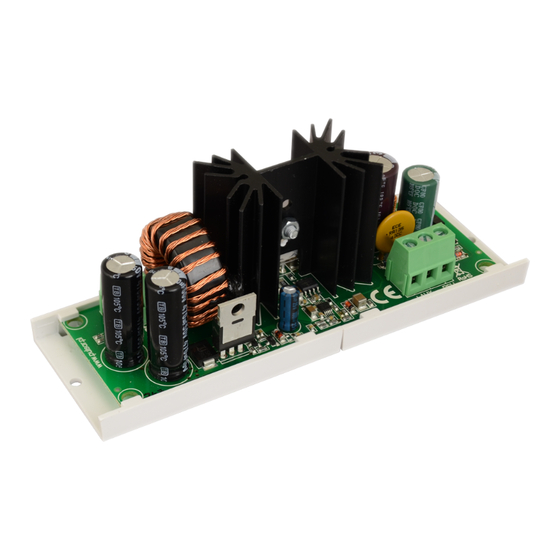

DC/DC 48V/1,25A Step up DC/DC converter
The module's features:
Example of use of the DC/DC48125 step up converter.
Schematic diagram of the converter operation.
DC/DC48125
v.1.0
Edition: 2 from 15.01.2016
Supercedes the edition: 1 from 26.08.2015
 Protections:
 Short-circuit protection SCP
 Overload protection OLP
 High efficiency: 97%
 Optical LED indication
 Warranty – 2 years from the production date
 Mounting:
 Mounting strip with adhesive tape
 Mounting screws
