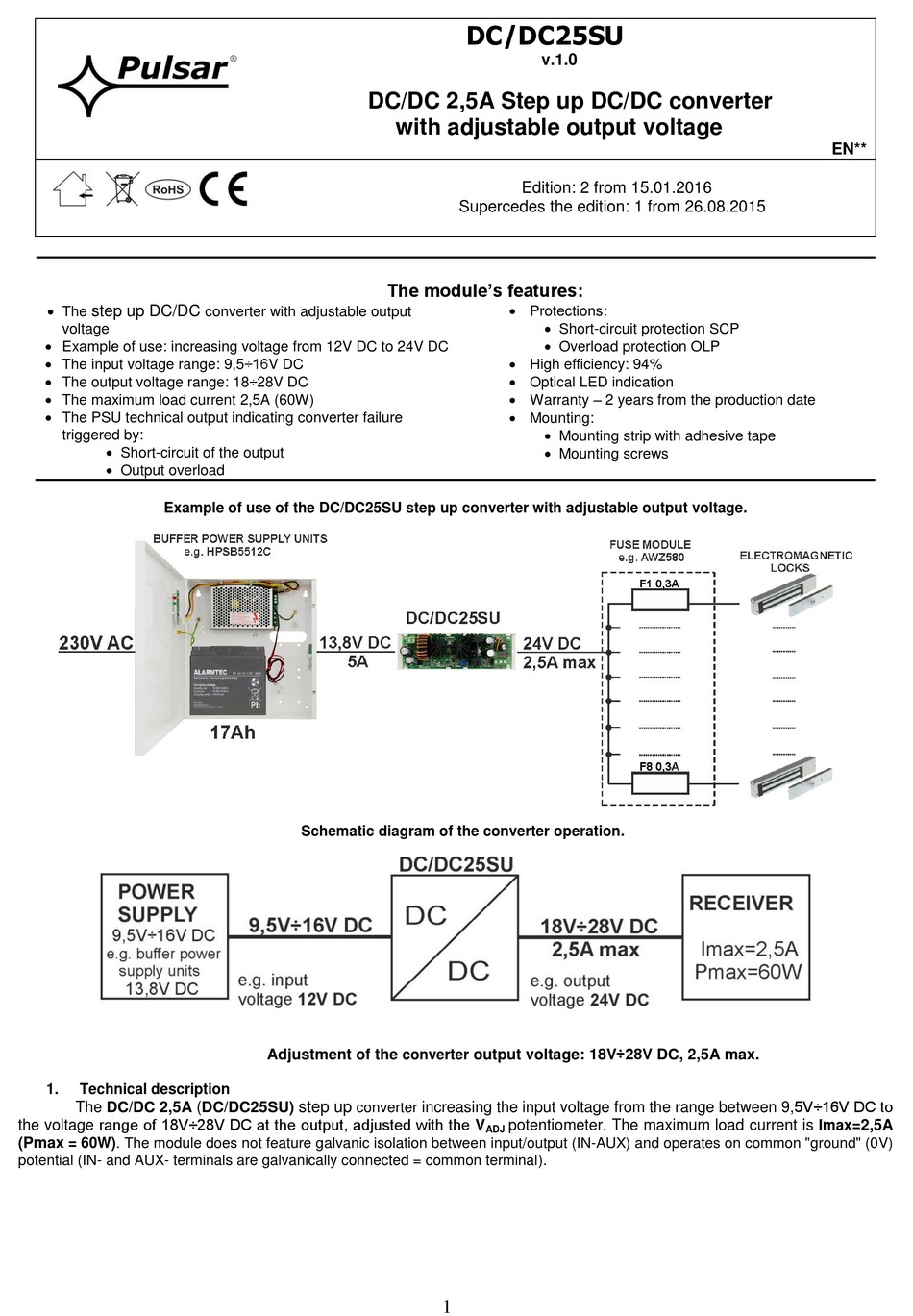

The
step up DC/DC
voltage
Example of use: increasing voltage from 12V DC to 24V DC
The input voltage range: 9,5÷16V DC
The output voltage range: 18÷28V DC
The maximum load current 2,5A (60W)
The PSU technical output indicating converter failure
triggered by:
Short-circuit of the output
Output overload
Example of use of the DC/DC25SU step up converter with adjustable output voltage.
1.
Technical description
The DC/DC 2,5A (DC/DC25SU)
the voltage range of 18V÷28V DC at the output, adjusted with the V
(Pmax
= 60W). The module does not feature galvanic isolation between input/output (IN-AUX) and operates on common "ground" (0V)
potential (IN- and AUX- terminals are galvanically connected = common terminal).
DC/DC 2,5A Step up DC/DC converter
converter with adjustable output
Schematic diagram of the converter operation.
Adjustment of the
step up
converter
DC/DC25SU
v.1.0
with adjustable output voltage
Edition: 2 from 15.01.2016
Supercedes the edition: 1 from 26.08.2015
The module's features:
Protections:
Short-circuit protection SCP
Overload protection OLP
High efficiency: 94%
Optical LED indication
Warranty – 2 years from the production date
Mounting:
Mounting strip with adhesive tape
Mounting screws
output voltage: 18V÷28V DC, 2,5A max.
converter
increasing the input voltage from the range between 9,5V÷16V DC to
potentiometer. The maximum load current is
ADJ
1
EN**
2,5A
Imax=
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Pulsar DC/DC25SU
Summary of Contents for Pulsar DC/DC25SU
- Page 1 Short-circuit of the output Mounting screws Output overload Example of use of the DC/DC25SU step up converter with adjustable output voltage. Schematic diagram of the converter operation. Adjustment of the output voltage: 18V÷28V DC, 2,5A max.
- Page 2 1.1. Block diagram (Fig.1). Fig.1. Block diagram of the converter’s module. 1.2. Description of components and connectors (Fig. 2, Table 1, Table 2). Table 1. Component’s description [fig.2] IN LED light - red Power connector of the DC/DC module voltage adjustment (18÷28V) AUX LED light –...
- Page 3 Technical outputs - PSU output indicating failure – overload or short- - OC type, 50mA max. Failure status: hi-Z state (high circuit in the AUX output impedance), normal status: L level (0V) Optical indication - IN LED indicating DC power status - red, normal status: is lit continuously - AUX LED indicating DC supply status at the output - green, normal status: is lit continuously...
- Page 4 GENERAL WARRANTY CONDITIONS 1. Pulsar (manufacturer) grants a two-years quality warranty for the equipment, starting from the production date. 2. The warranty includes free-of-charge repair or replacement with an appropriate equivalent (selected by the manufacturer) if the malfunction is due to the manufacturer.
