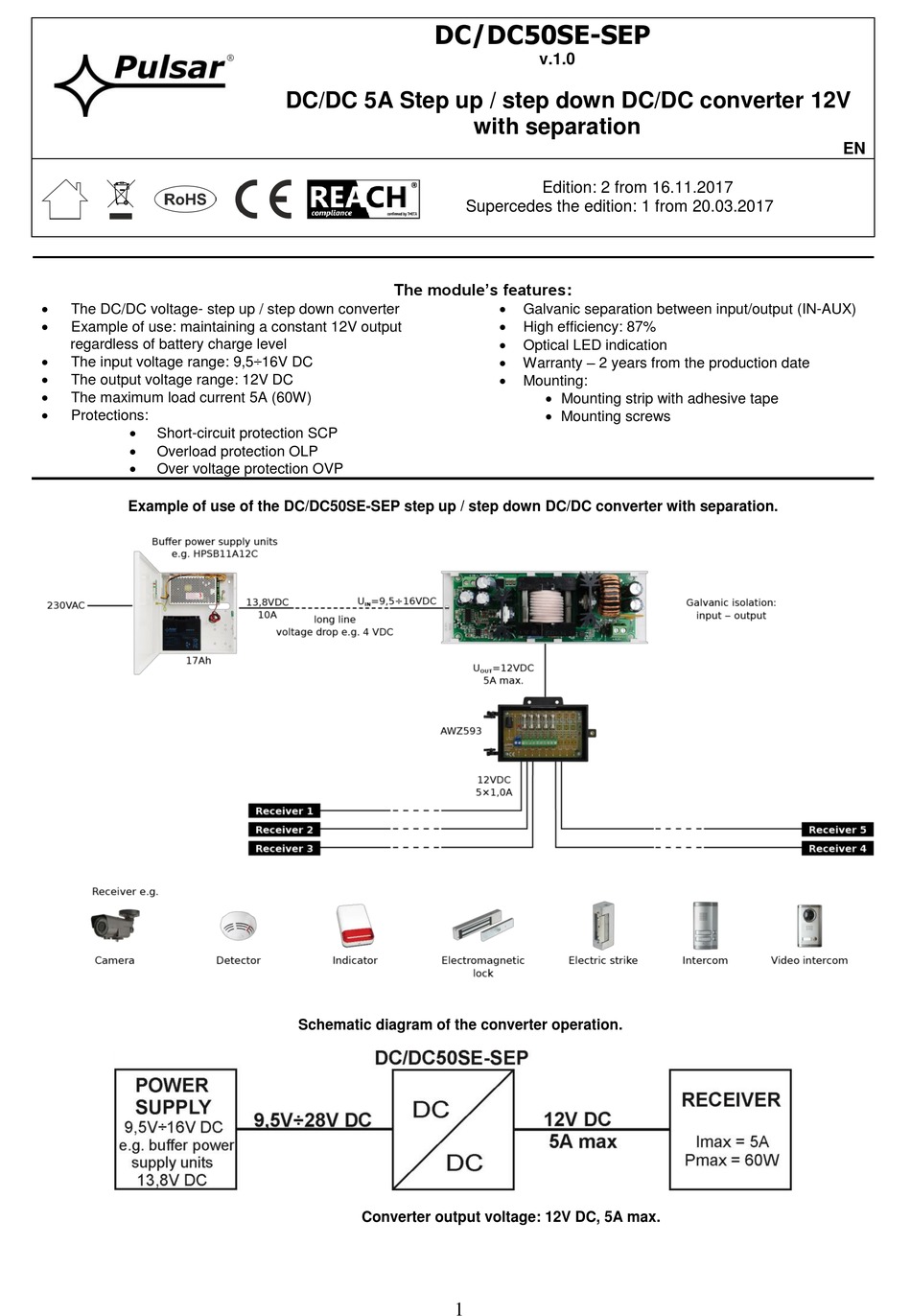

Pulsar DC/DC50SE-SEP Quick Start Manual


The DC/DC voltage- step up / step down converter

Example of use: maintaining a constant 12V output
regardless of battery charge level

The input voltage range: 9,5÷16V DC

The output voltage range: 12V DC

The maximum load current 5A (60W)

Protections:

Short-circuit protection SCP

Overload protection OLP

Over voltage protection OVP
Example of use of the DC/DC50SE-SEP step up / step down DC/DC converter with separation.
DC/DC50SE-SEP
DC/DC 5A Step up / step down DC/DC converter 12V
The module's features:
Schematic diagram of the converter operation.
Converter output voltage: 12V DC, 5A max.
1
v.1.0
with separation
Edition: 2 from 16.11.2017
Supercedes the edition: 1 from 20.03.2017

Galvanic separation between input/output (IN-AUX)

High efficiency: 87%

Optical LED indication

Warranty – 2 years from the production date

Mounting:
 Mounting strip with adhesive tape
 Mounting screws
EN
