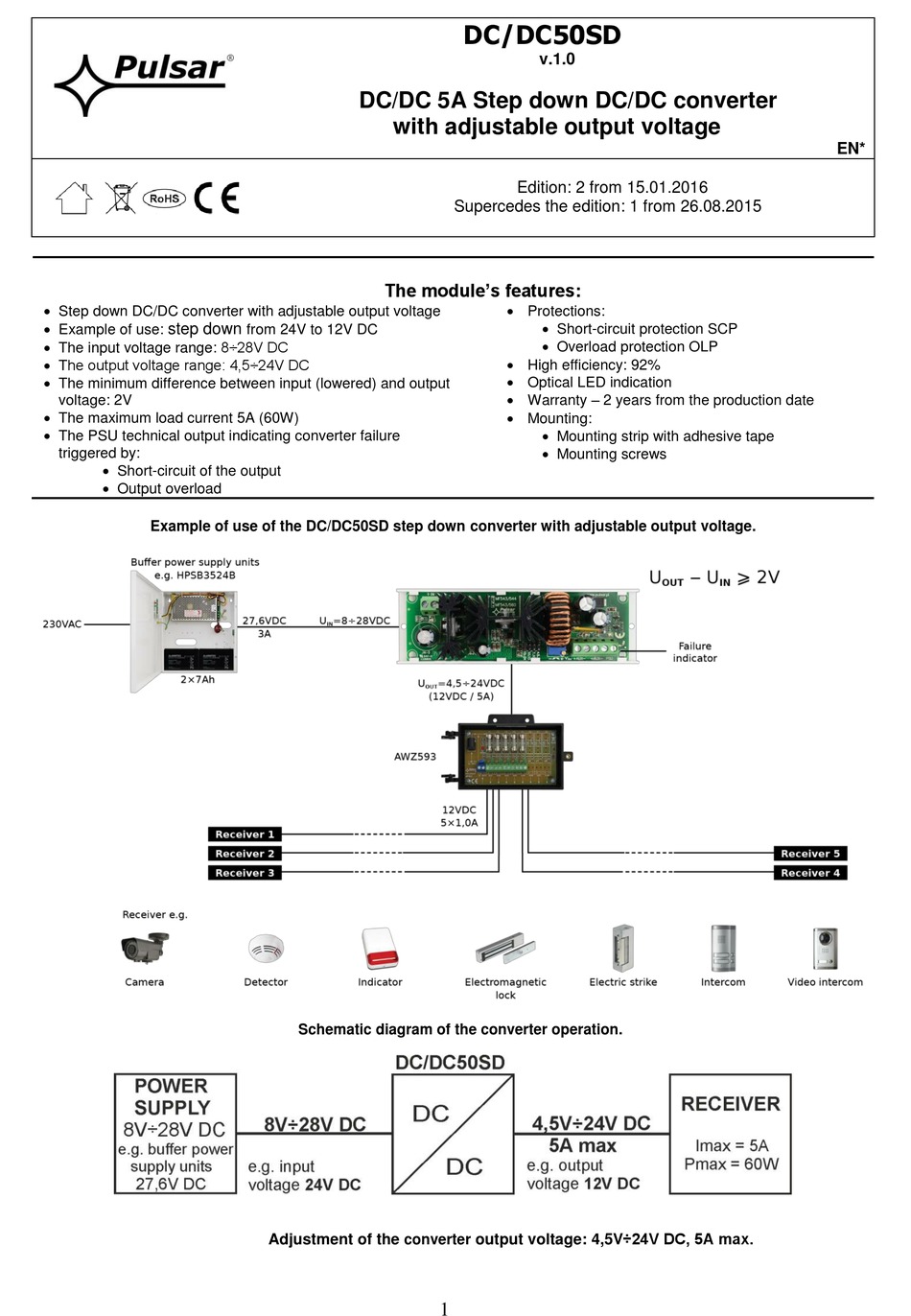

Pulsar DC/DC50SD Manual

 Step down DC/DC converter with adjustable output voltage
 Example of use:
step down
 The input voltage range: 8÷28V DC
 The output voltage range: 4,5÷24V DC
 The minimum difference between input (lowered) and output
voltage: 2V
 The maximum load current 5A (60W)
 The PSU technical output indicating converter failure
triggered by:
 Short-circuit of the output
 Output overload
Example of use of the DC/DC50SD step down converter with adjustable output voltage.
DC/DC 5A Step down DC/DC converter
with adjustable output voltage
The module's features:
from 24V to 12V DC
Schematic diagram of the converter operation.
Adjustment of the
converter
DC/DC50SD
v.1.0
Edition: 2 from 15.01.2016
Supercedes the edition: 1 from 26.08.2015
 Protections:
 Short-circuit protection SCP
 Overload protection OLP
 High efficiency: 92%
 Optical LED indication
 Warranty – 2 years from the production date
 Mounting:
 Mounting strip with adhesive tape
 Mounting screws
output voltage: 4,5V÷24V DC, 5A max.
1
EN*
