Step-down DC/DC converter module
Wide range of output voltages: 4.5-19V
DC power supply range 8-28V
Maximum current load 1A
AW emergency output triggered by:
Output short
Output overload

1. Technical description

The step-down DC/DC converter module DC/DC-1.0A (DCDC10) is used for powering devices that require
stabilized voltage in the range of 4,5÷19V DC. The maximum current load is 1.0 A (Pmax= 12W). This module does
not have galvanic insulation between the input and output (IN-AUX), and operates on a common ground potential (IN
and AUX terminals are connected galvanically = common terminal).

1.1. Block diagram (fig1).

1.2. Description of elements and connection links of the power-supply unit (fig.2, tab.1, tab.2).

Table 1.
No.
[fig. 2]
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
Supercedes edition: 2-nd from the 08-th December 2011
Features of the module:

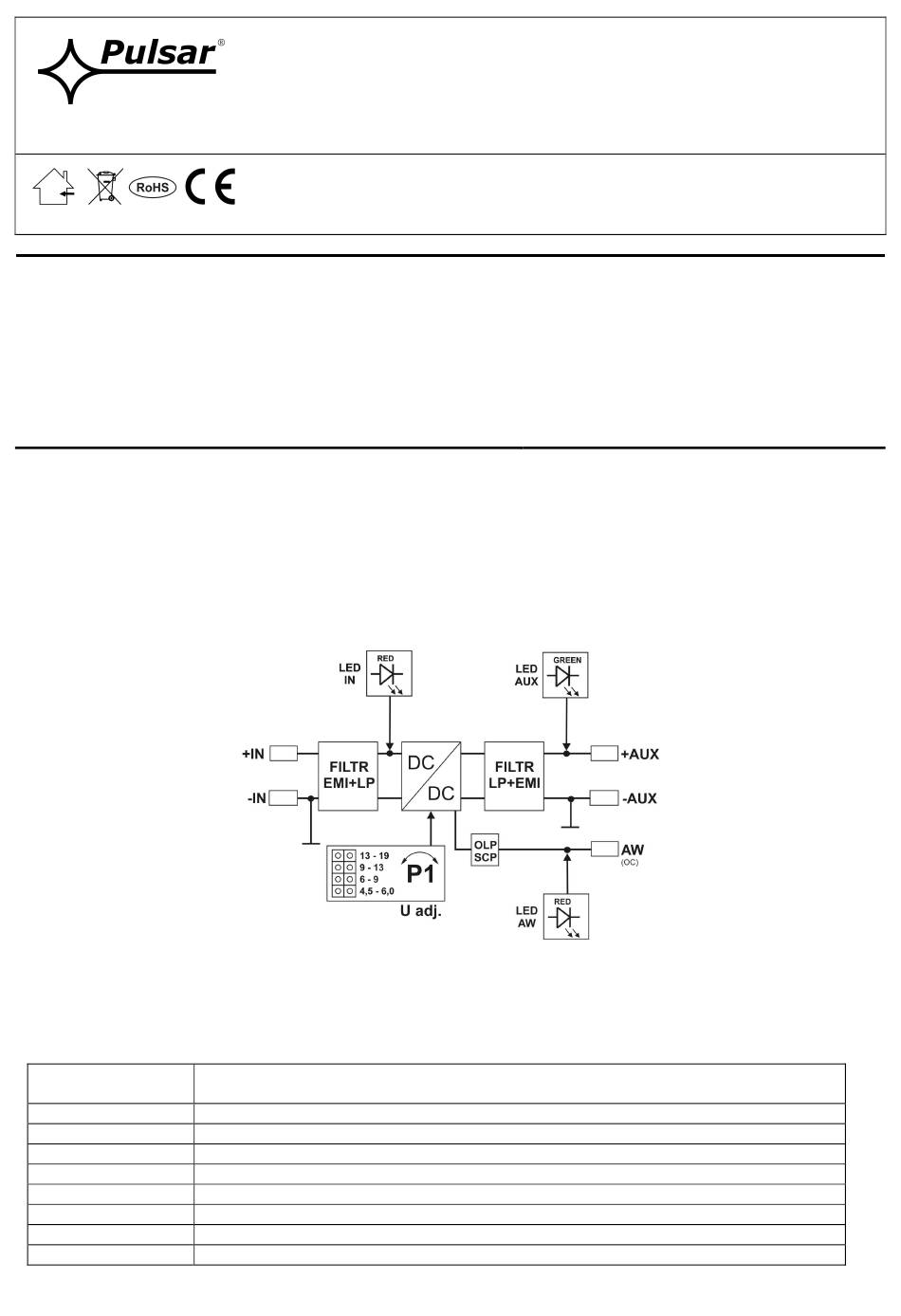

Fig.1. Block diagram of the converter module.
IN LED - red
DC/DC module power connectors
P1 voltage regulation (4.5-19.0V)
Jumper- voltage range switching
AUX LED - green
DC/DC module terminal connectors (power and AW)
AW LED - red
Assembly base
DCDC10
v.1.1
DC/DC 1.0A module of converter
Edition: 3-rd from 21-st mai 2012
Protection:
High efficiency: 80- 90%
Optical LED indicator
Description of element
1
SCP short circuit protection
OLP overload protection
OHP overheating protection
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DCDC10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Pulsar DCDC10

  • Page 1 Output overload 1. Technical description The step-down DC/DC converter module DC/DC-1.0A (DCDC10) is used for powering devices that require stabilized voltage in the range of 4,5÷19V DC. The maximum current load is 1.0 A (Pmax= 12W). This module does not have galvanic insulation between the input and output (IN-AUX), and operates on a common ground potential (IN and AUX terminals are connected galvanically = common terminal).
  • Page 2 Table 2. [2], [6] Description of module connectors DC power terminal - IN (8V-28V DC, see voltage selection from power source) +AUX DC power terminal - AUX (+AUX= +U, -AUX=GND) Failure technical output: OLP/SCP (overcurrent protection, overload protection) Failure state : hi-Z (High impedance), normal state: L (0V, GND) type OC Fig.2.
  • Page 3 Table 4. Dimensions: 80 x 43 x 27 (LxWxH) Mounting Mounting pins x 4, mounting tape or mounting screw x2 Connectors Ф0.41÷1.63 (AWG 26-14) Net/gross weight 0.04/0.07 kg 2. Installation. 2.1. Requirements. The module of converter shall be mounted by the qualified installer having appropriate (required and necessary for a given country) permissions and qualifications for connecting (operating) low-voltage installations.
  • Page 4 WEEE Directive and is effective only with EU. GENERAL WARRANTY CONDITIONS 1. Pulsar K. Bogusz Sp.j. (manufacturer) grants a two-year quality warranty for the equipment, starting from the date of purchase placed on the purchase order.
