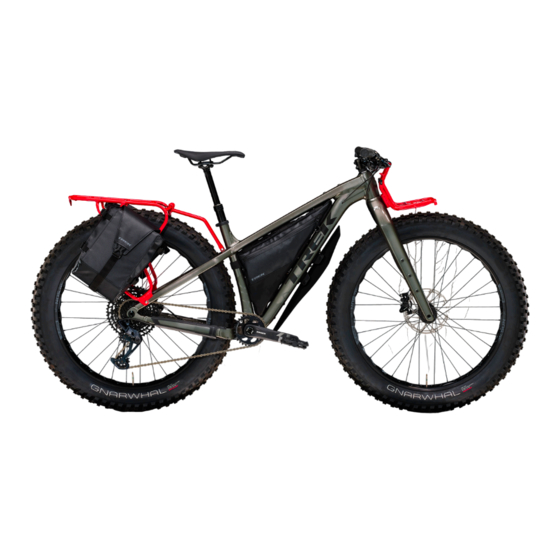

Summary of Contents for Trek Farley 5

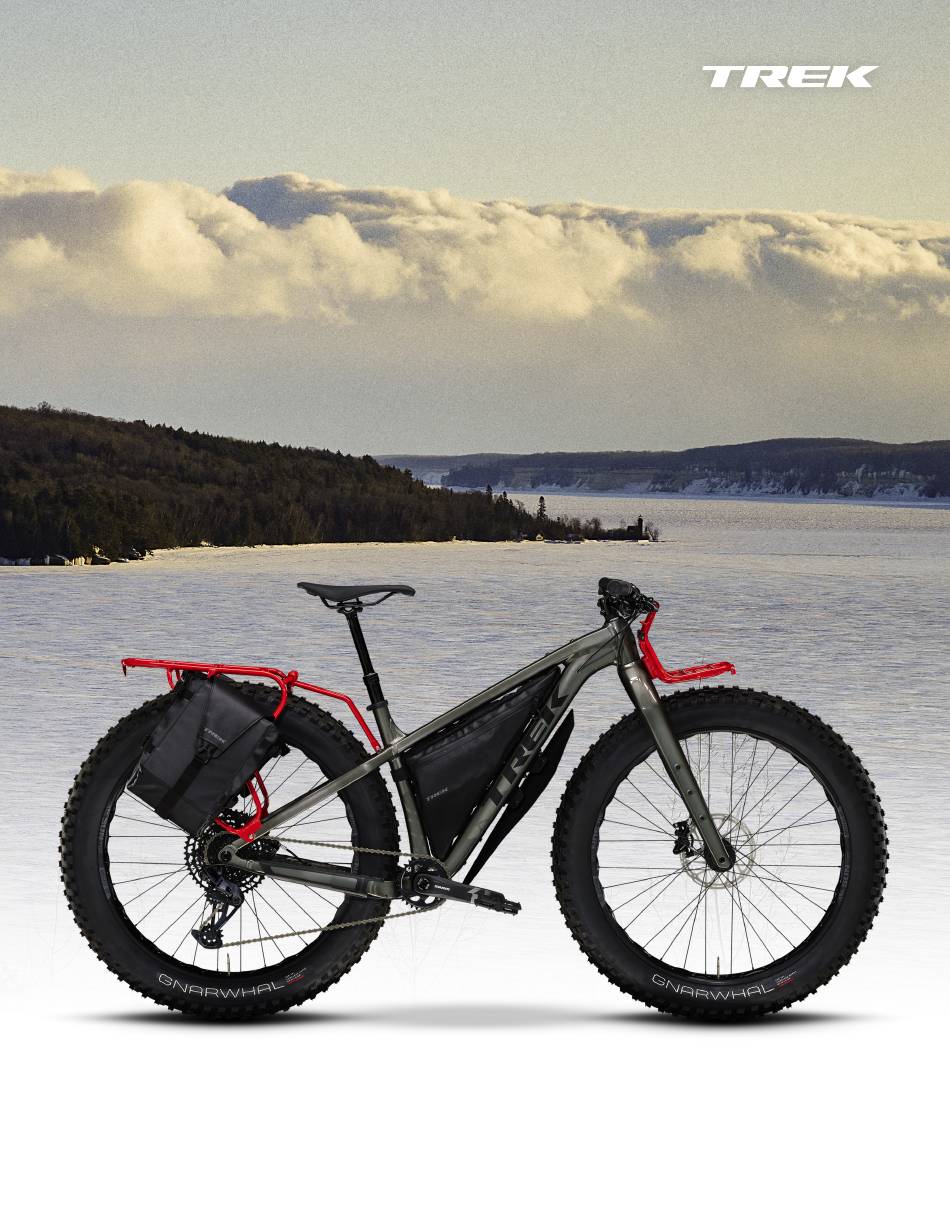

- Page 1 2023 Farley Alloy 5, 7, and 9 SERVICE MANUAL...
- Page 2 Notice: Measurements of actual tires may vary. Always verify there is sufficient clearance between the tire and the frame. Improper tire size could damage the bicycle frame. Trek recommends 6mm clearance above and on both sides of the tire. Water bottle fit Small frame: one water bottle, down tube only.
- Page 3 2023 Farley 5, 7, and 9 Front and rear dropouts 25Nm Switch lever — W573860 Front dropout (Farley 5 and 9) Thru axle, 12 x 223 — W5279557 Derailleur hanger Washer — W5271425 Bolt (left-hand thread) Carbon fork — 5311796 Front thru axle, 15 x 198.5mm —...
- Page 4 2023 Farley 5, 7, and 9 Routing External cable guide — W5287833 Dropper post housing Socket head screws, steel, M5 x 16 — W5252789 Rear brake hose Zip ties Rear derailleur housing...
-
Page 5: Frame Guards
2023 Farley 5, 7, and 9 Frame guards 1.5Nm Farley 5 and 9 only. Align holes in the guard with the holes in the frame. Chainstay guard Match the original part number found on the inside Fork dropout bumper, driveside of the guard, with the correct replacement part (shown below). - Page 6 2023 Farley 5, 7, and 9 Frame mounts — Farley 5 and Farley 9 Mounts for: 4 or 6 . Mounts for: 3 , 4 , or 5 . page 10 for bag and fender information. 3kg (6.6lb) max load...
- Page 7 2023 Farley 5, 7, and 9 Frame mounts — Farley 7 Mounts for 1 , 2 , or 3 . page 10 for bag and fender information. Mounts for: 1 , 2 , or 3 . Mounts for: 2 or 3 .
- Page 8 2023 Farley 5, 7, and 9 Rear rack — parts 5.2Nm 5.2Nm 1.5Nm M5x10 M5x16 M5x25 Rear rack — 44355 Search trekbikes.com to find the color-matched part for your bike. Strut nuts — 423544 Struts, one set. Matte black. Includes strut caps —...
- Page 9 2023 Farley 5, 7, and 9 Rear rack — installation Large or extra-large frames only: If adding or replacing a Loosely attach the rack to the seatstay bridge. rack, use a hacksaw to cut two lengths from each strut to create clearance for the tire.
-
Page 10: Front Rack
2023 Farley 5, 7, and 9 Front rack Farley front rack — 44354 Search trekbikes.com to find the color-matched part for your bike. Bolts, stainless steel, M6 x 16mm, with washers — W582658... - Page 11 2023 Farley 5, 7, and 9 Frame bag, rack bag, and fender Frame bag S — 5288902 M — 5288903 L — 5288904 XL — 5288905 Thumb screw — 5281893 Universal fender kit — W5289946 Socket head screws, steel, M5 x 16mm —...
-
Page 12: Specifications
Notice: Measurements of actual tires may vary. Always verify there is sufficient clearance between the tire and the frame. Improper tire size could damage the bicycle frame. Trek recommends 6mm clearance above and on both sides of the tire. Front Hub: 150mm... - Page 13 2023 Farley 5, 7, and 9 Fork WARNING Exceeding the recommended maximum fork length could damage the bicycle and result in injury to the rider. Farley 5 and 9 Farley 7 Refer to the suspension setup card included with your bike or the suspension calculator at Trekbikes.com/suspension-calculator.
Need help?
Do you have a question about the Farley 5 and is the answer not in the manual?
Questions and answers
I **** installing a rear rack on Farley 5 but the nut holes for bolts 5 are covered up. how to uncover the holes for the rack
To uncover the nut holes for bolts on a Trek Farley 5 to install a rear rack, align the holes in the frame guard with the holes in the frame. This applies specifically to the Farley 5 and 9.
This answer is automatically generated
The bresion on the lower frame to attach rear rack are closed how do i open them
