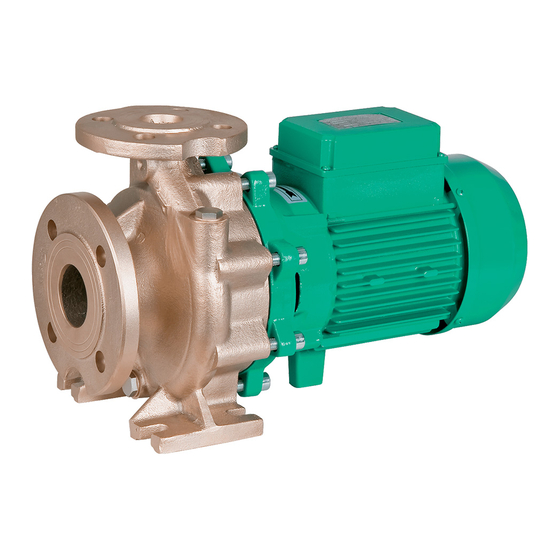

- Page 1 Pioneering for You Wilo-BM, BM-B, BM-S de Einbau- und Betriebsanleitung en Installation and operating instructions Notice de montage et de mise en service Instrucciones de instalación y funcionamiento el Οδηγίες εγκατάστασης και λειτουργίας 2 103 933-Ed.06 / 2016-08-Wilo...
- Page 3 Fig.1:...
- Page 4 There is a risk of damaging the product/unit. “Caution” implies that damage to the product is likely if this information is disregarded. NOTE: Useful information on handling the product. It draws attention to possible problems. Installation and operating instructions Wilo-BM, BM-B, BM-S...
-
Page 5: Personnel Qualifications
Work on the product/unit must only be carried out when at a stand- still. It is mandatory that the procedure described in the installation and operating instructions for shutting down the product/unit be complied with. WILO SE 08/2016... -
Page 6: Transport And Interim Storage
• Never stand underneath a suspended load. • Make sure the pump is securely positioned and is stable during storage and transport as well as prior to all installation and other assembly work. Installation and operating instructions Wilo-BM, BM-B, BM-S... -
Page 7: Intended Use
English Intended use Purpose Glanded pumps in the BM series, BM-B series and BM-S series are intended for use as circulation pumps in building services. Fields of application They may be used for: • Hot water heating systems • Cooling and cold water circulation systems •... - Page 8 Only use brand-name goods with corrosion protection inhibitors and observe the manufacturer's instructions. • The fluid must be sediment-free. • Wilo's approval must be obtained for use of other media. NOTE Always read and follow the material safety data sheet for the fluid...
-
Page 9: Description And Function
In conjunction with a control device (Wilo-CC/SC system), the flow rate of the pumps can also be continuously controlled. This allows optimisation of the pump output for the demands of the installation and economically efficient pump operation. -
Page 10: Electrical Connection
• Check the current type and voltage of the mains connection. • Observe the data on the name plate of the motor. Installation and operating instructions Wilo-BM, BM-B, BM-S... - Page 11 Depending on the temperature of the fluid and the system pres- sure, when the vent screw is opened completely, extremely hot or extremely cold fluid in liquid or vapour form may escape or shoot out at high pressure. • Always exercise caution when opening the vent screw. WILO SE 08/2016...
-
Page 12: Maintenance
Safety Maintenance and repairs may only be carried out by qualified experts! It is recommended to have the pump serviced and checked by Wilo- Customer Service. DANGER! Risk of fatal injury! There is a mortal danger through shock when working on electrical equipment. - Page 13 • Slowly insert the motor with impeller and shaft seal into the pump housing using suitable hoisting gear and screw it into place. NOTE: • Observe the specified screw tightening torque (see 9.3). • Connect the motor cable. WILO SE 08/2016...
- Page 14 Have the pump checked by WILO after- sales service or a specialised service cen- tre and repaired if necessary Impeller grinding Check faces and centrings and between lanterns and pump housing, clean if necessary Installation and operating instructions Wilo-BM, BM-B, BM-S...
- Page 15 NOTE: The product or any of its parts must not be disposed of with house- hold waste! For further information on recycling, go to www.wilo-recycling.com Subject to technical changes without prior notice! WILO SE 08/2016...
- Page 16 PBU Pumps - Quality Personne autorisée à constituer le dossier technique est: Nortkirchenstraße 100 44263 Dortmund Germany Dortmund, 15. Januar 2013 WILO SE Holger Herchenhein Nortkirchenstraße 100 Group Quality Manager 44263 Dortmund Germany Document: 2117837.1 Einbau- und Betriebsanleitung Wilo-MTS 40...
