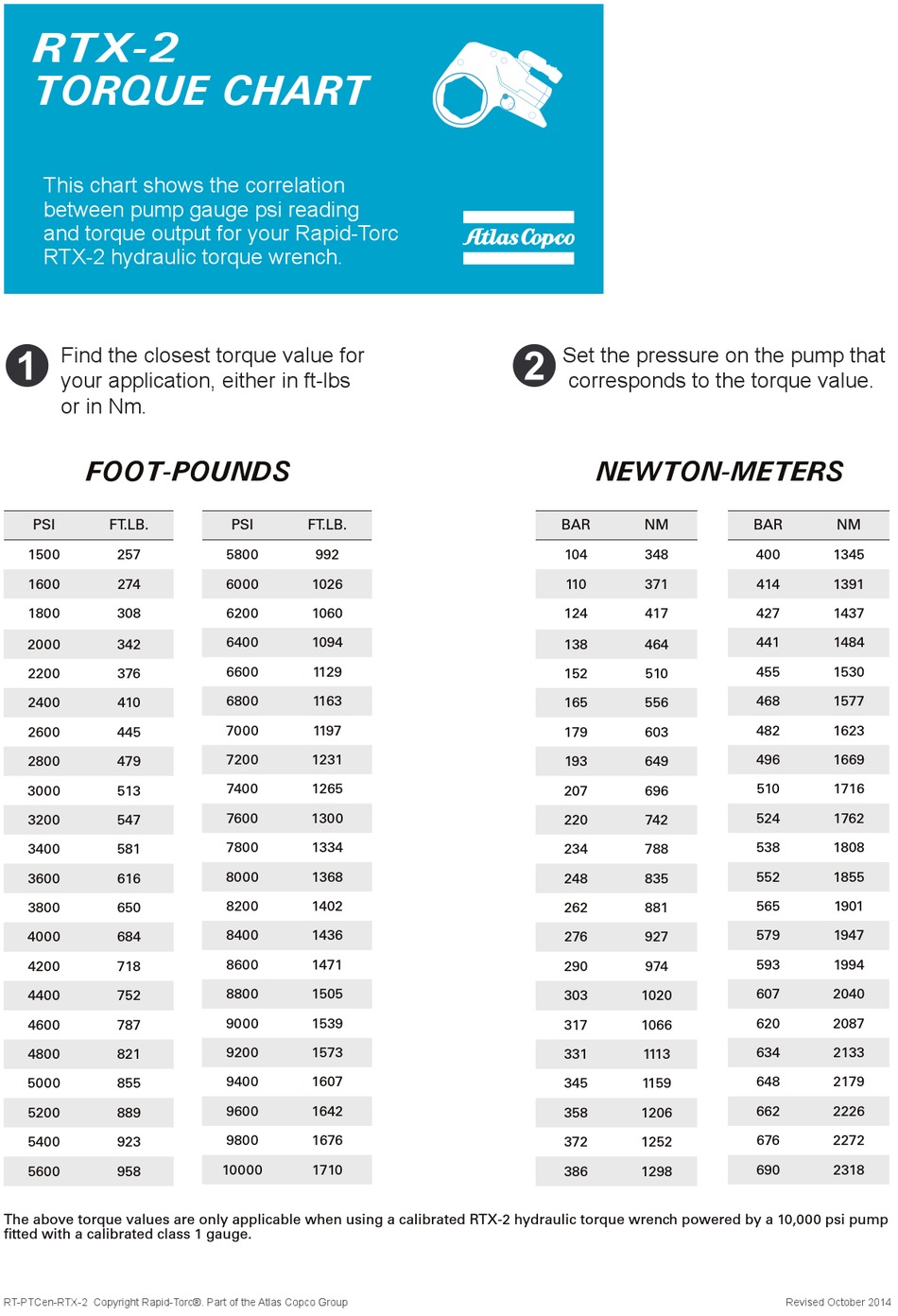

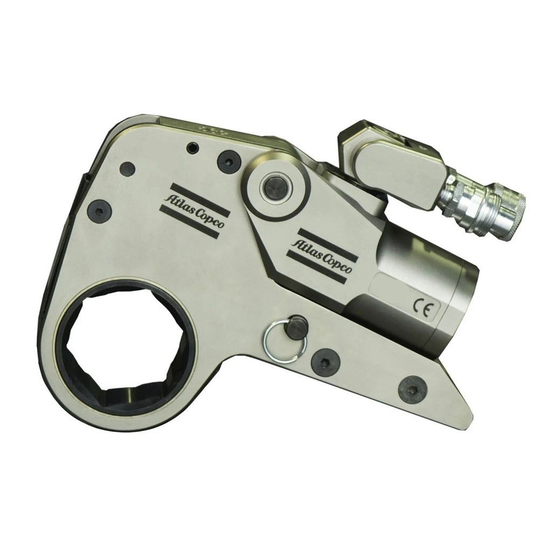

Atlas Copco RTX-2 Quick Start Manual

RTX-2

TORQUE CHART

This chart shows the correlation
between pump gauge psi reading
and torque output for your Rapid-Torc
RTX-2 hydraulic torque wrench.
Find the closest torque value for
1
your application, either in ft-lbs
or in Nm.
FOOT-POUNDS
PSI FT.LB.
1500 257
1600 274
1800 308
2000 342
2200 376
2400 410
2600 445
2800 479
3000 513
3200 547
3400 581
3600 616
3800 650
4000 684
4200 718
4400 752
4600 787
4800 821
5000 855
5200 889
5400 923
5600 958
The above torque values are only applicable when using a calibrated RTX-2 hydraulic torque wrench powered by a 10,000 psi pump
fitted with a calibrated class 1 gauge.
RT-PTCen-RTX-2 Copyright Rapid-Torc®. Part of the Atlas Copco Group
PSI FT.LB.
5800 992
6000 1026
6200 1060
6400 1094
6600 1129
6800 1163
7000 1197
7200 1231
7400 1265
7600 1300
7800 1334
8000 1368
8200 1402
8400 1436
8600 1471
8800 1505
9000 1539
9200 1573
9400 1607
9600 1642
9800 1676
10000 1710
Set the pressure on the pump that
2
corresponds to the torque value.
NEWTON-METERS
BAR NM
104 348
110 371
124 417
138 464
152 510
165 556
179 603
193 649
207 696
220 742
234 788
248 835
262 881
276 927
290 974
303 1020
317 1066
331 1113
345 1159
358 1206
372 1252
386 1298
BAR NM
400 1345
414 1391
427 1437
441 1484
455 1530
468 1577
482 1623
496 1669
510 1716
524 1762
538 1808
552 1855
565 1901
579 1947
593 1994
607 2040
620 2087
634 2133
648 2179
662 2226
676 2272
690 2318
Revised October 2014
