RTX-18

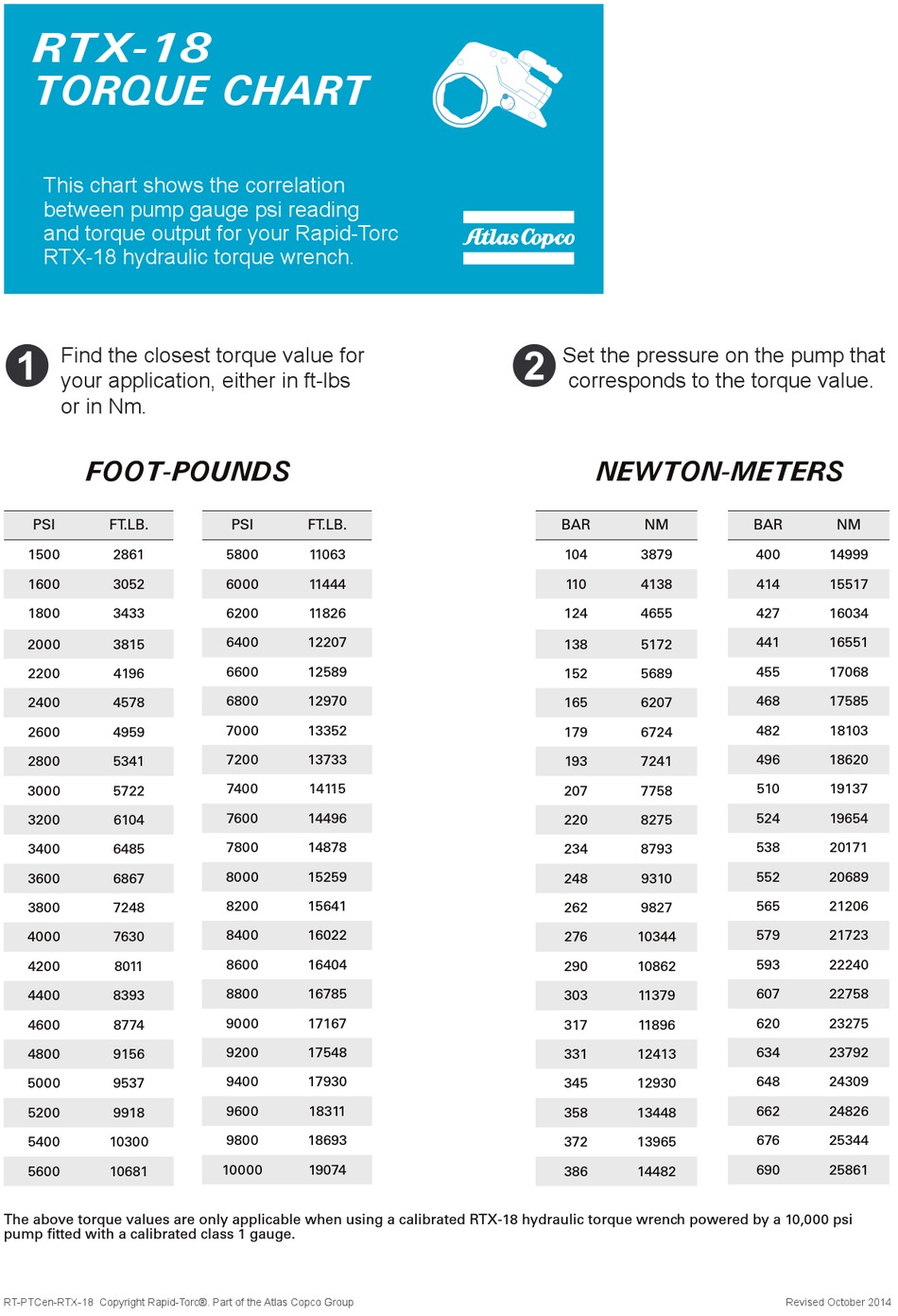

TORQUE CHART

This chart shows the correlation
between pump gauge psi reading
and torque output for your Rapid-Torc
RTX-18 hydraulic torque wrench.
Find the closest torque value for
1
your application, either in ft-lbs
or in Nm.
FOOT-POUNDS
PSI FT.LB.
1500 2861
1600 3052
1800 3433
2000 3815
2200 4196
2400 4578
2600 4959
2800 5341
3000 5722
3200 6104
3400 6485
3600 6867
3800 7248
4000 7630
4200 8011
4400 8393
4600 8774
4800 9156
5000 9537
5200 9918
5400 10300
5600 10681
The above torque values are only applicable when using a calibrated RTX-18 hydraulic torque wrench powered by a 10,000 psi
pump fitted with a calibrated class 1 gauge.
RT-PTCen-RTX-18 Copyright Rapid-Torc®. Part of the Atlas Copco Group
PSI FT.LB.
5800 11063
6000 11444
6200 11826
6400 12207
6600 12589
6800 12970
7000 13352
7200 13733
7400 14115
7600 14496
7800 14878
8000 15259
8200 15641
8400 16022
8600 16404
8800 16785
9000 17167
9200 17548
9400 17930
9600 18311
9800 18693
10000 19074
Set the pressure on the pump that
2
corresponds to the torque value.
NEWTON-METERS
BAR NM
104 3879
110 4138
124 4655
138 5172
152 5689
165 6207
179 6724
193 7241
207 7758
220 8275
234 8793
248 9310
262 9827
276 10344
290 10862
303 11379
317 11896
331 12413
345 12930
358 13448
372 13965
386 14482
BAR NM
400 14999
414 15517
427 16034
441 16551
455 17068
468 17585
482 18103
496 18620
510 19137
524 19654
538 20171
552 20689
565 21206
579 21723
593 22240
607 22758
620 23275
634 23792
648 24309
662 24826
676 25344
690 25861
Revised October 2014
