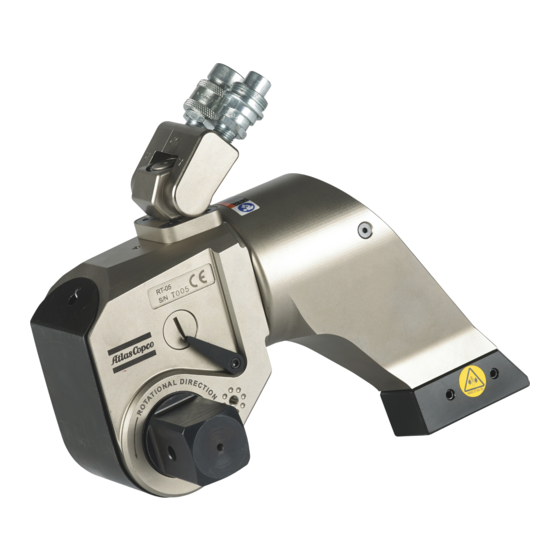

Atlas Copco Rapid-Torc RT-50 Quick Setup Manual

RT-50

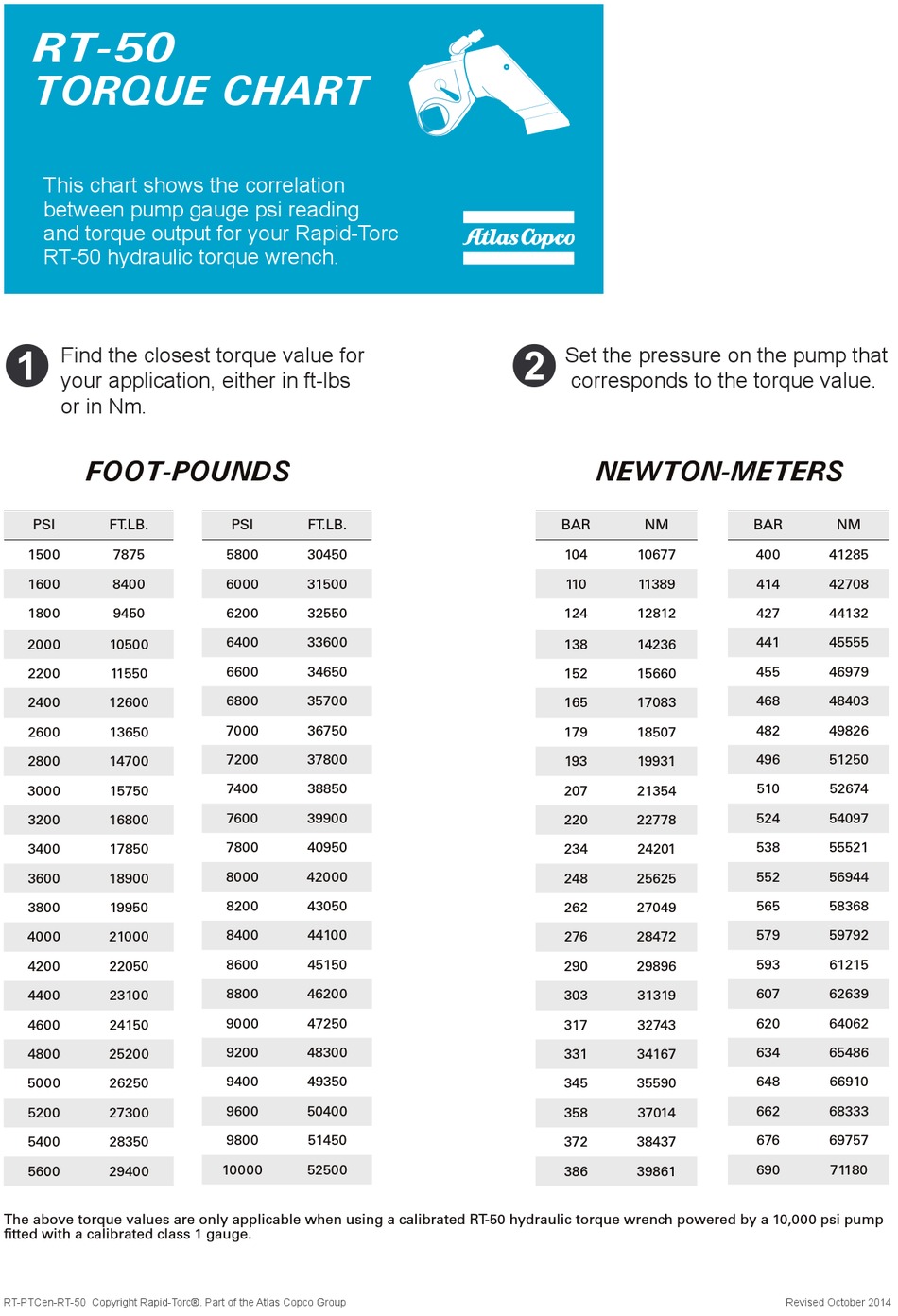

TORQUE CHART

This chart shows the correlation
between pump gauge psi reading
and torque output for your Rapid-Torc
RT-50 hydraulic torque wrench.
Find the closest torque value for
1
your application, either in ft-lbs
or in Nm.
FOOT-POUNDS
PSI FT.LB.
1500 7875
1600 8400
1800 9450
2000 10500
2200 11550
2400 12600
2600 13650
2800 14700
3000 15750
3200 16800
3400 17850
3600 18900
3800 19950
4000 21000
4200 22050
4400 23100
4600 24150
4800 25200
5000 26250
5200 27300
5400 28350
5600 29400
The above torque values are only applicable when using a calibrated RT-50 hydraulic torque wrench powered by a 10,000 psi pump
fitted with a calibrated class 1 gauge.
RT-PTCen-RT-50 Copyright Rapid-Torc®. Part of the Atlas Copco Group
PSI FT.LB.
5800 30450
6000 31500
6200 32550
6400 33600
6600 34650
6800 35700
7000 36750
7200 37800
7400 38850
7600 39900
7800 40950
8000 42000
8200 43050
8400 44100
8600 45150
8800 46200
9000 47250
9200 48300
9400 49350
9600 50400
9800 51450
10000 52500
Set the pressure on the pump that
2
corresponds to the torque value.
NEWTON-METERS
BAR NM
104 10677
110 11389
124 12812
138 14236
152 15660
165 17083
179 18507
193 19931
207 21354
220 22778
234 24201
248 25625
262 27049
276 28472
290 29896
303 31319
317 32743
331 34167
345 35590
358 37014
372 38437
386 39861
BAR NM
400 41285
414 42708
427 44132
441 45555
455 46979
468 48403
482 49826
496 51250
510 52674
524 54097
538 55521
552 56944
565 58368
579 59792
593 61215
607 62639
620 64062
634 65486
648 66910
662 68333
676 69757
690 71180
Revised October 2014
