Atlas Copco RT-25 Quick Setup Manual

RT-25

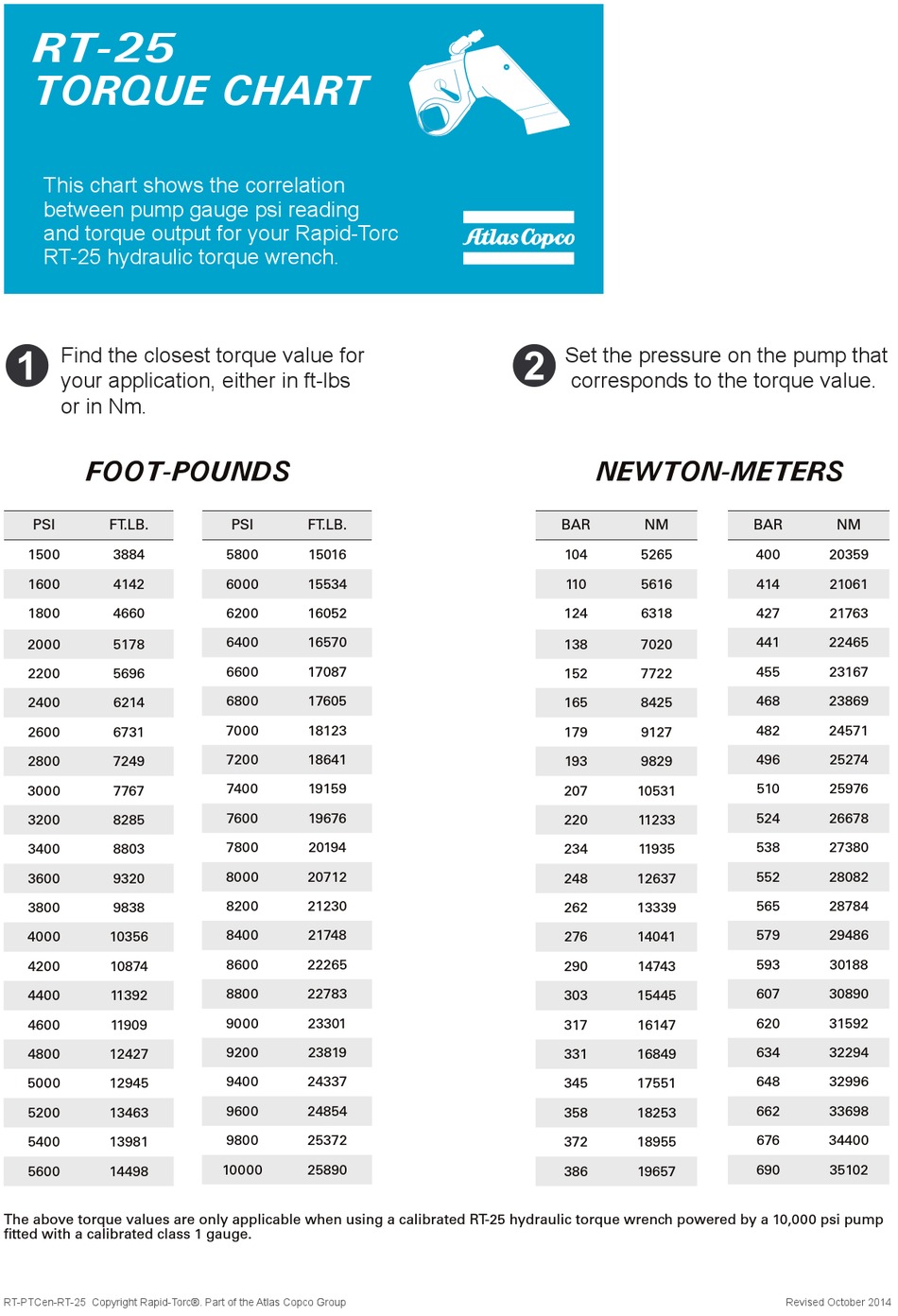

TORQUE CHART

This chart shows the correlation
between pump gauge psi reading
and torque output for your Rapid-Torc
RT-25 hydraulic torque wrench.
Find the closest torque value for
1
your application, either in ft-lbs
or in Nm.
FOOT-POUNDS
PSI FT.LB.
1500 3884
1600 4142
1800 4660
2000 5178
2200 5696
2400 6214
2600 6731
2800 7249
3000 7767
3200 8285
3400 8803
3600 9320
3800 9838
4000 10356
4200 10874
4400 11392
4600 11909
4800 12427
5000 12945
5200 13463
5400 13981
5600 14498
The above torque values are only applicable when using a calibrated RT-25 hydraulic torque wrench powered by a 10,000 psi pump
fitted with a calibrated class 1 gauge.
RT-PTCen-RT-25 Copyright Rapid-Torc®. Part of the Atlas Copco Group
PSI FT.LB.
5800 15016
6000 15534
6200 16052
6400 16570
6600 17087
6800 17605
7000 18123
7200 18641
7400 19159
7600 19676
7800 20194
8000 20712
8200 21230
8400 21748
8600 22265
8800 22783
9000 23301
9200 23819
9400 24337
9600 24854
9800 25372
10000 25890
Set the pressure on the pump that
2
corresponds to the torque value.
NEWTON-METERS
BAR NM
104 5265
110 5616
124 6318
138 7020
152 7722
165 8425
179 9127
193 9829
207 10531
220 11233
234 11935
248 12637
262 13339
276 14041
290 14743
303 15445
317 16147
331 16849
345 17551
358 18253
372 18955
386 19657
BAR NM
400 20359
414 21061
427 21763
441 22465
455 23167
468 23869
482 24571
496 25274
510 25976
524 26678
538 27380
552 28082
565 28784
579 29486
593 30188
607 30890
620 31592
634 32294
648 32996
662 33698
676 34400
690 35102
Revised October 2014
