Atlas Copco RT-P5 Quick Setup Manual

RT-P5

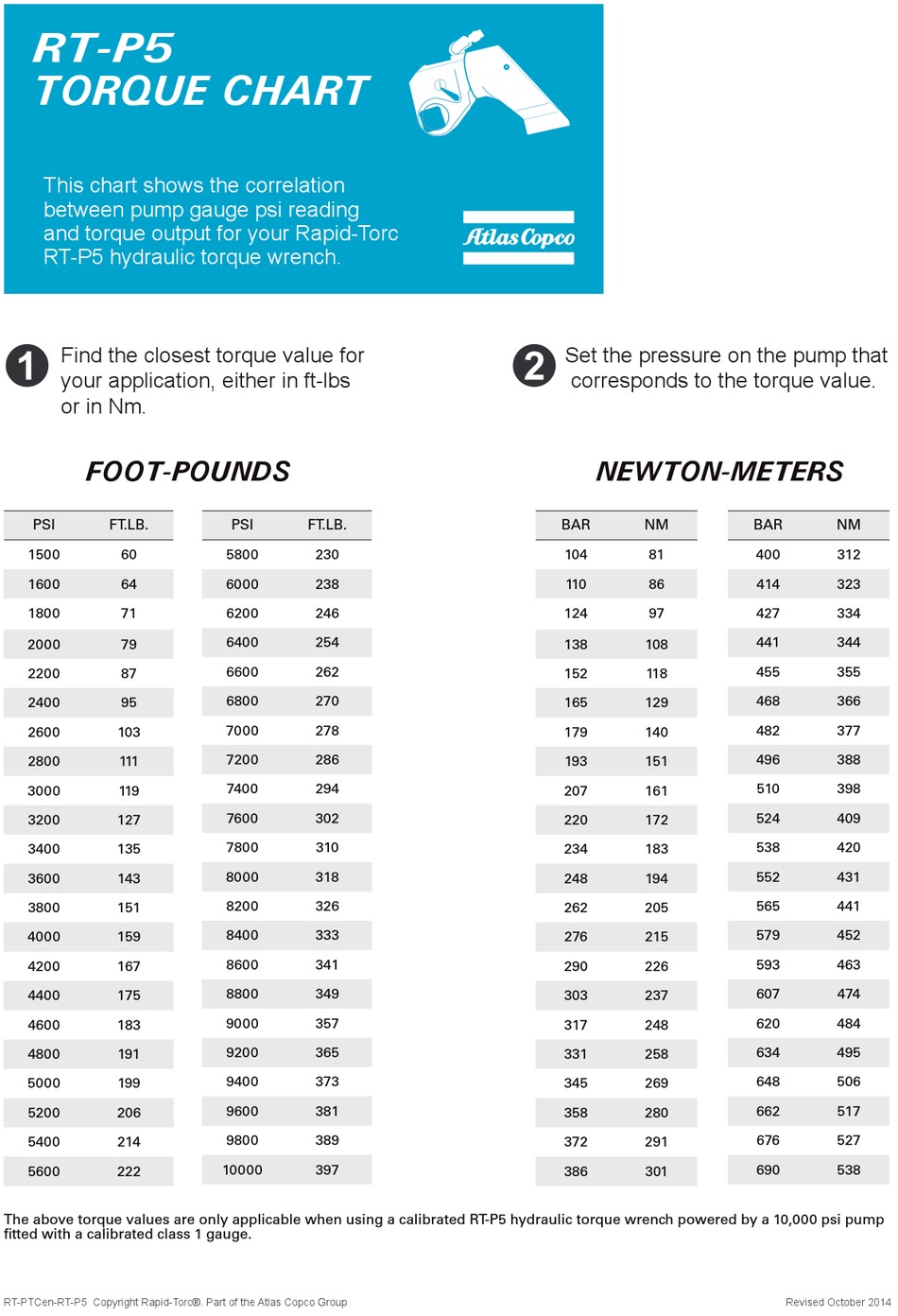

TORQUE CHART

This chart shows the correlation
between pump gauge psi reading
and torque output for your Rapid-Torc
RT-P5 hydraulic torque wrench.
Find the closest torque value for
1
your application, either in ft-lbs
or in Nm.
FOOT-POUNDS
PSI FT.LB.
1500 60
1600 64
1800 71
2000 79
2200 87
2400 95
2600 103
2800 111
3000 119
3200 127
3400 135
3600 143
3800 151
4000 159
4200 167
4400 175
4600 183
4800 191
5000 199
5200 206
5400 214
5600 222
The above torque values are only applicable when using a calibrated RT-P5 hydraulic torque wrench powered by a 10,000 psi pump
fitted with a calibrated class 1 gauge.
RT-PTCen-RT-P5 Copyright Rapid-Torc®. Part of the Atlas Copco Group
PSI FT.LB.
5800 230
6000 238
6200 246
6400 254
6600 262
6800 270
7000 278
7200 286
7400 294
7600 302
7800 310
8000 318
8200 326
8400 333
8600 341
8800 349
9000 357
9200 365
9400 373
9600 381
9800 389
10000 397
Set the pressure on the pump that
2
corresponds to the torque value.
NEWTON-METERS
BAR NM
104 81
110 86
124 97
138 108
152 118
165 129
179 140
193 151
207 161
220 172
234 183
248 194
262 205
276 215
290 226
303 237
317 248
331 258
345 269
358 280
372 291
386 301
BAR NM
400 312
414 323
427 334
441 344
455 355
468 366
482 377
496 388
510 398
524 409
538 420
552 431
565 441
579 452
593 463
607 474
620 484
634 495
648 506
662 517
676 527
690 538
Revised October 2014
