RT-1

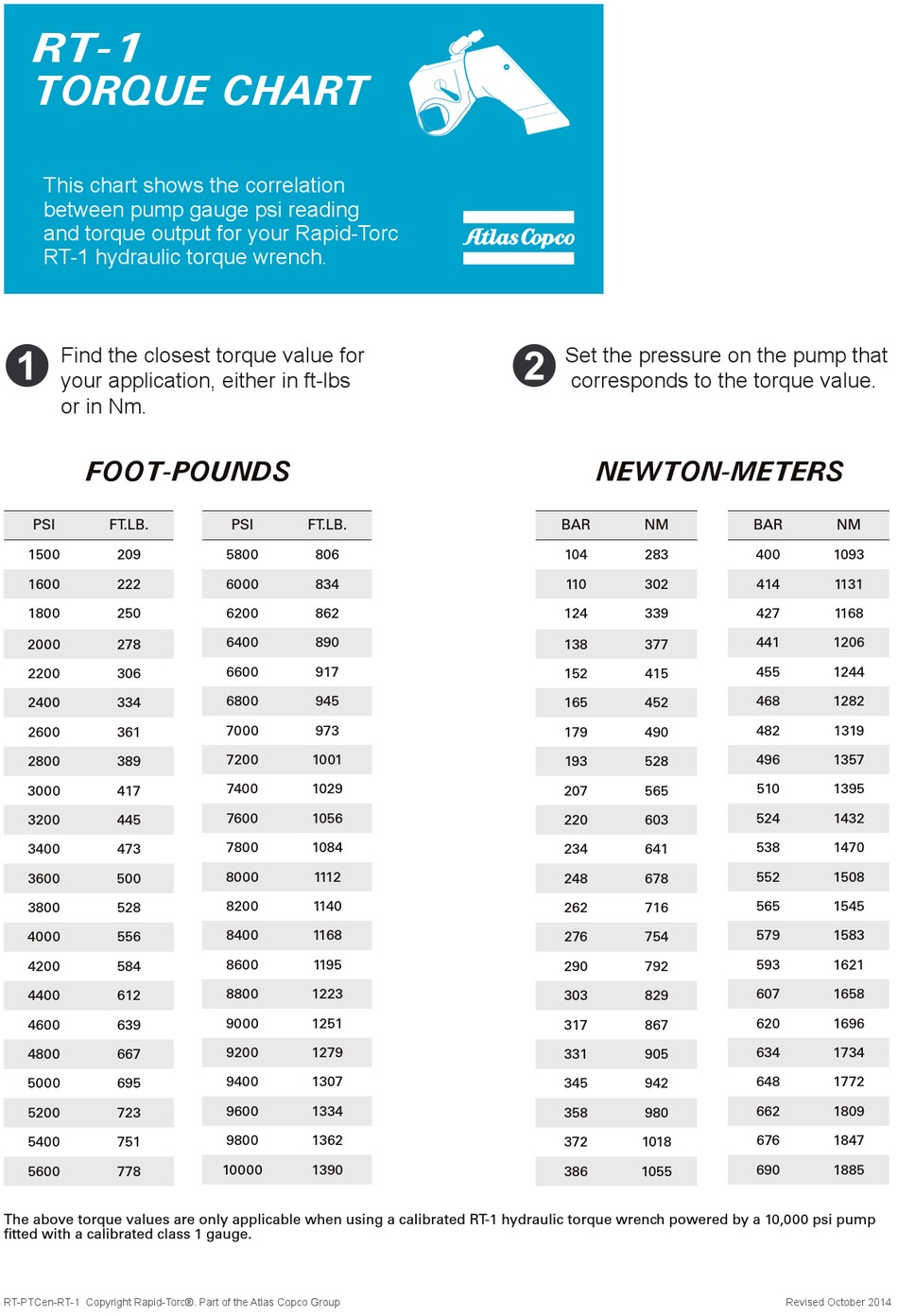

TORQUE CHART

This chart shows the correlation
between pump gauge psi reading
and torque output for your Rapid-Torc

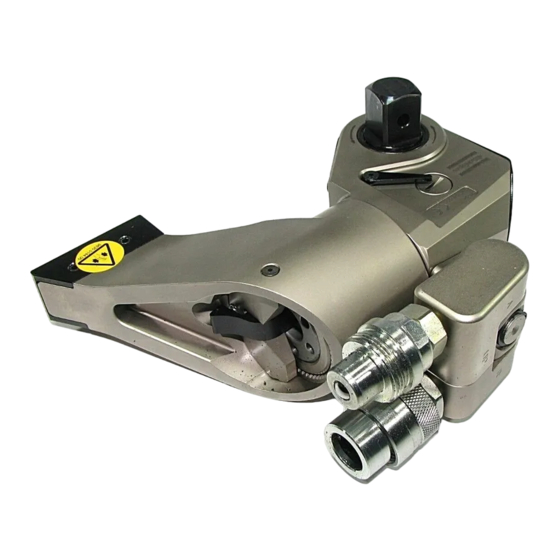

RT-1 hydraulic torque wrench.
Find the closest torque value for
1
your application, either in ft-lbs
or in Nm.
FOOT-POUNDS
PSI FT.LB.
1500 209
1600 222
1800 250
2000 278
2200 306
2400 334
2600 361
2800 389
3000 417
3200 445
3400 473
3600 500
3800 528
4000 556
4200 584
4400 612
4600 639
4800 667
5000 695
5200 723
5400 751
5600 778
The above torque values are only applicable when using a calibrated RT-1 hydraulic torque wrench powered by a 10,000 psi pump
fitted with a calibrated class 1 gauge.
RT-PTCen-RT-1 Copyright Rapid-Torc®. Part of the Atlas Copco Group
PSI FT.LB.
5800 806
6000 834
6200 862
6400 890
6600 917
6800 945
7000 973
7200 1001
7400 1029
7600 1056
7800 1084
8000 1112
8200 1140
8400 1168
8600 1195
8800 1223
9000 1251
9200 1279
9400 1307
9600 1334
9800 1362
10000 1390
Set the pressure on the pump that
2
corresponds to the torque value.
NEWTON-METERS
BAR NM
104 283
110 302
124 339
138 377
152 415
165 452
179 490
193 528
207 565
220 603
234 641
248 678
262 716
276 754
290 792
303 829
317 867
331 905
345 942
358 980
372 1018
386 1055
BAR NM
400 1093
414 1131
427 1168
441 1206
455 1244
468 1282
482 1319
496 1357
510 1395
524 1432
538 1470
552 1508
565 1545
579 1583
593 1621
607 1658
620 1696
634 1734
648 1772
662 1809
676 1847
690 1885
Revised October 2014
