Atlas Copco RT-3 Quick Setup Manual

RT-3

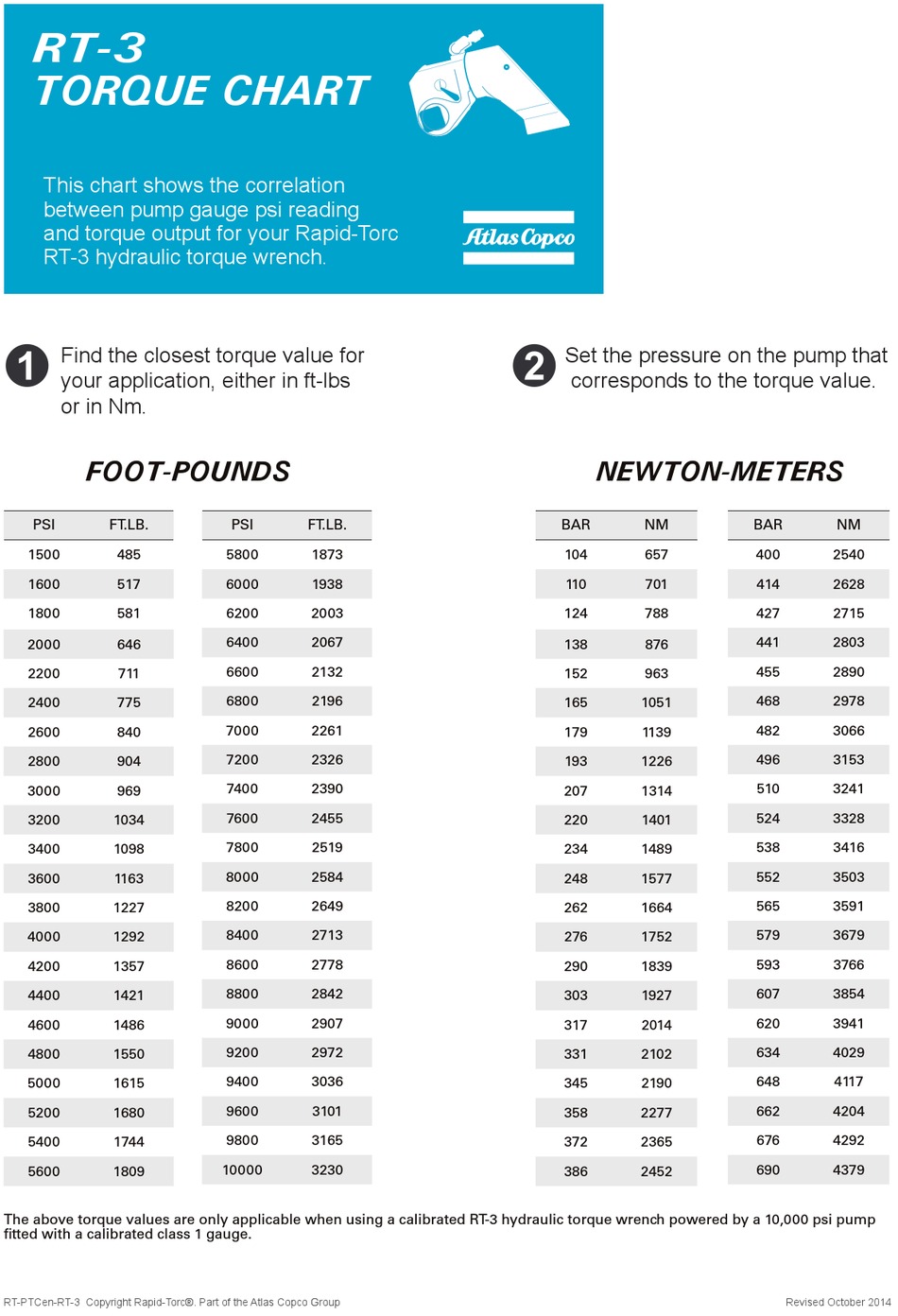

TORQUE CHART

This chart shows the correlation
between pump gauge psi reading

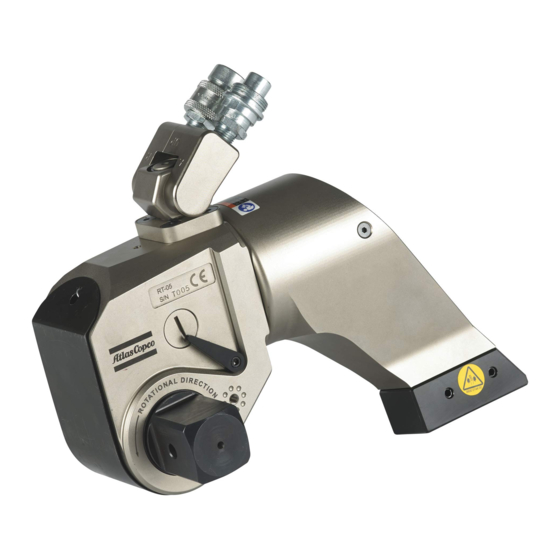

and torque output for your Rapid-Torc
RT-3 hydraulic torque wrench.
Find the closest torque value for
1
your application, either in ft-lbs
or in Nm.
FOOT-POUNDS
PSI FT.LB.
1500 485
1600 517
1800 581
2000 646
2200 711
2400 775
2600 840
2800 904
3000 969
3200 1034
3400 1098
3600 1163
3800 1227
4000 1292
4200 1357
4400 1421
4600 1486
4800 1550
5000 1615
5200 1680
5400 1744
5600 1809
The above torque values are only applicable when using a calibrated RT-3 hydraulic torque wrench powered by a 10,000 psi pump
fitted with a calibrated class 1 gauge.
RT-PTCen-RT-3 Copyright Rapid-Torc®. Part of the Atlas Copco Group
PSI FT.LB.
5800 1873
6000 1938
6200 2003
6400 2067
6600 2132
6800 2196
7000 2261
7200 2326
7400 2390
7600 2455
7800 2519
8000 2584
8200 2649
8400 2713
8600 2778
8800 2842
9000 2907
9200 2972
9400 3036
9600 3101
9800 3165
10000 3230
Set the pressure on the pump that
2
corresponds to the torque value.
NEWTON-METERS
BAR NM
104 657
110 701
124 788
138 876
152 963
165 1051
179 1139
193 1226
207 1314
220 1401
234 1489
248 1577
262 1664
276 1752
290 1839
303 1927
317 2014
331 2102
345 2190
358 2277
372 2365
386 2452
BAR NM
400 2540
414 2628
427 2715
441 2803
455 2890
468 2978
482 3066
496 3153
510 3241
524 3328
538 3416
552 3503
565 3591
579 3679
593 3766
607 3854
620 3941
634 4029
648 4117
662 4204
676 4292
690 4379
Revised October 2014
