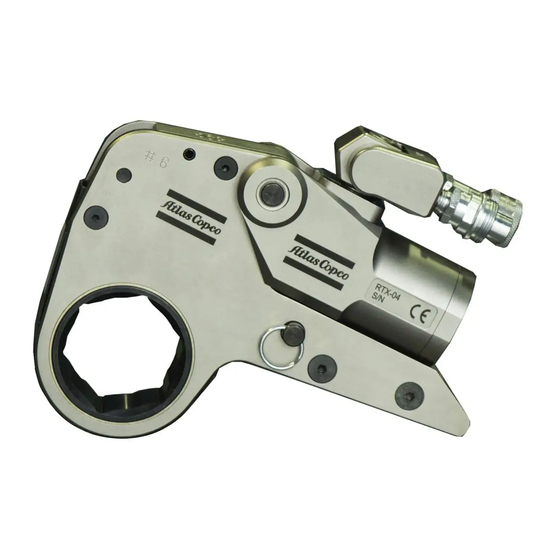

RTX-14

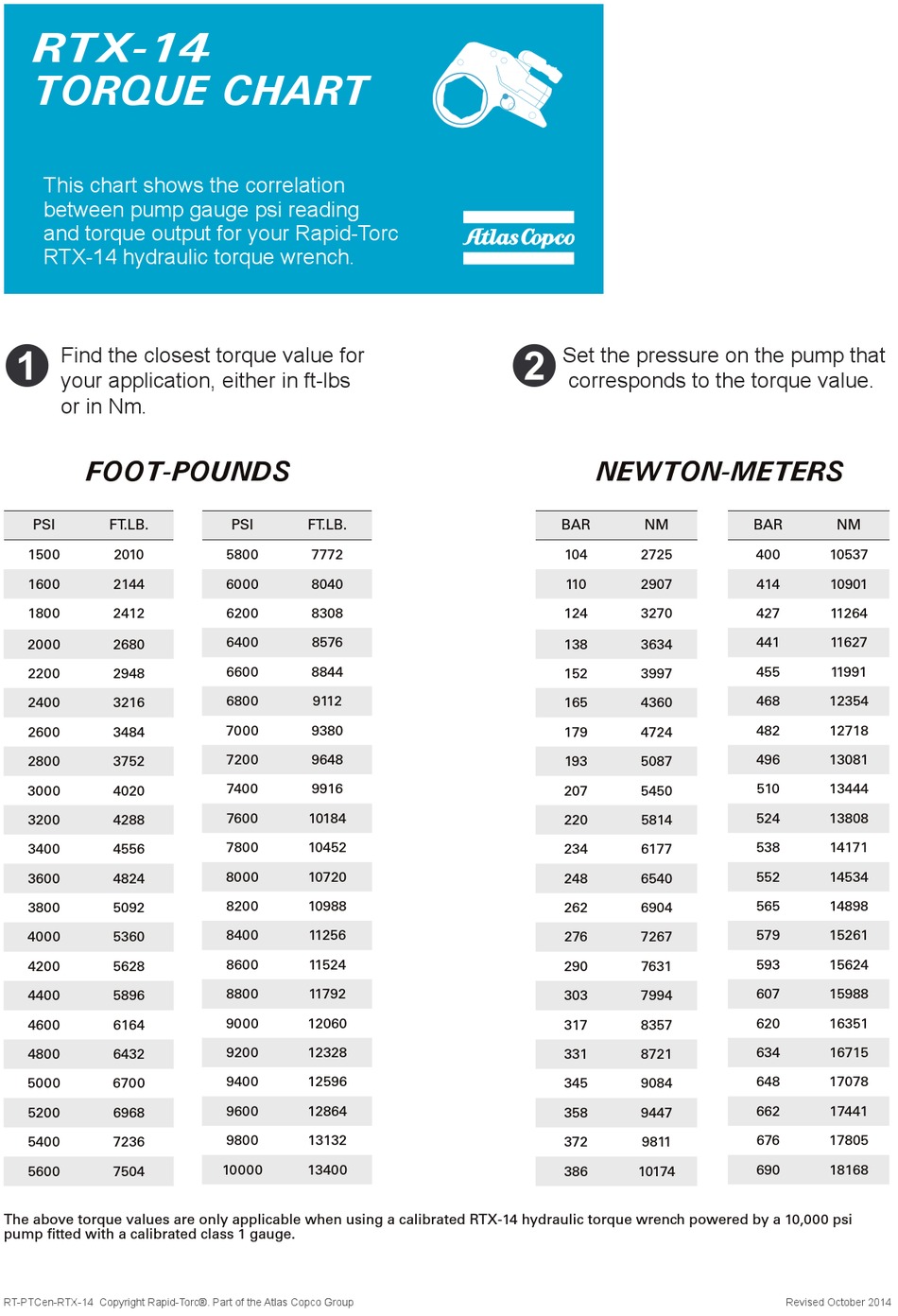

TORQUE CHART

This chart shows the correlation
between pump gauge psi reading
and torque output for your Rapid-Torc
RTX-14 hydraulic torque wrench.
Find the closest torque value for
1
your application, either in ft-lbs
or in Nm.
FOOT-POUNDS
PSI FT.LB.
1500 2010
1600 2144
1800 2412
2000 2680
2200 2948
2400 3216
2600 3484
2800 3752
3000 4020
3200 4288
3400 4556
3600 4824
3800 5092
4000 5360
4200 5628
4400 5896
4600 6164
4800 6432
5000 6700
5200 6968
5400 7236
5600 7504
The above torque values are only applicable when using a calibrated RTX-14 hydraulic torque wrench powered by a 10,000 psi
pump fitted with a calibrated class 1 gauge.
RT-PTCen-RTX-14 Copyright Rapid-Torc®. Part of the Atlas Copco Group
PSI FT.LB.
5800 7772
6000 8040
6200 8308
6400 8576
6600 8844
6800 9112
7000 9380
7200 9648
7400 9916
7600 10184
7800 10452
8000 10720
8200 10988
8400 11256
8600 11524
8800 11792
9000 12060
9200 12328
9400 12596
9600 12864
9800 13132
10000 13400
Set the pressure on the pump that
2
corresponds to the torque value.
NEWTON-METERS
BAR NM
104 2725
110 2907
124 3270
138 3634
152 3997
165 4360
179 4724
193 5087
207 5450
220 5814
234 6177
248 6540
262 6904
276 7267
290 7631
303 7994
317 8357
331 8721
345 9084
358 9447
372 9811
386 10174
BAR NM
400 10537
414 10901
427 11264
441 11627
455 11991
468 12354
482 12718
496 13081
510 13444
524 13808
538 14171
552 14534
565 14898
579 15261
593 15624
607 15988
620 16351
634 16715
648 17078
662 17441
676 17805
690 18168
Revised October 2014
