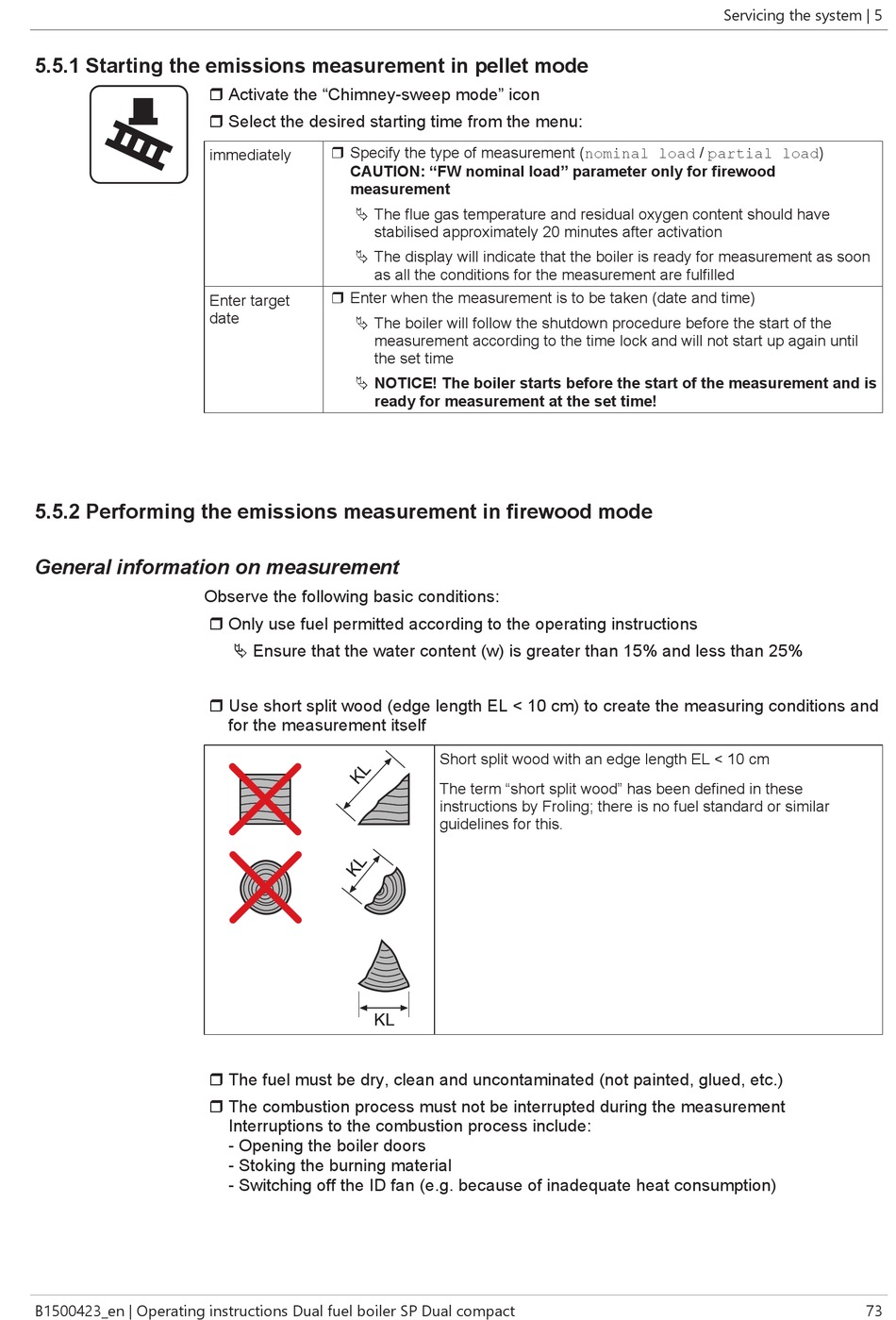

5.5.1 Starting the emissions measurement in pellet mode

5.5.2 Performing the emissions measurement in firewood mode

General information on measurement
B1500423_en | Operating instructions Dual fuel boiler SP Dual compact
r Activate the "Chimney-sweep mode" icon
r Select the desired starting time from the menu:
r Specify the type of measurement (nominal load / partial load)
immediately
CAUTION: "FW nominal load" parameter only for firewood
measurement
Ä The flue gas temperature and residual oxygen content should have
Ä The display will indicate that the boiler is ready for measurement as soon
r Enter when the measurement is to be taken (date and time)
Enter target
date
Ä The boiler will follow the shutdown procedure before the start of the
Ä NOTICE! The boiler starts before the start of the measurement and is
Observe the following basic conditions:
r Only use fuel permitted according to the operating instructions
Ä Ensure that the water content (w) is greater than 15% and less than 25%
r Use short split wood (edge length EL < 10 cm) to create the measuring conditions and
for the measurement itself
r The fuel must be dry, clean and uncontaminated (not painted, glued, etc.)
r The combustion process must not be interrupted during the measurement
Interruptions to the combustion process include:
- Opening the boiler doors
- Stoking the burning material
- Switching off the ID fan (e.g. because of inadequate heat consumption)
stabilised approximately 20 minutes after activation
as all the conditions for the measurement are fulfilled
measurement according to the time lock and will not start up again until
the set time
ready for measurement at the set time!
Short split wood with an edge length EL < 10 cm
The term "short split wood" has been defined in these
instructions by Froling; there is no fuel standard or similar
guidelines for this.
