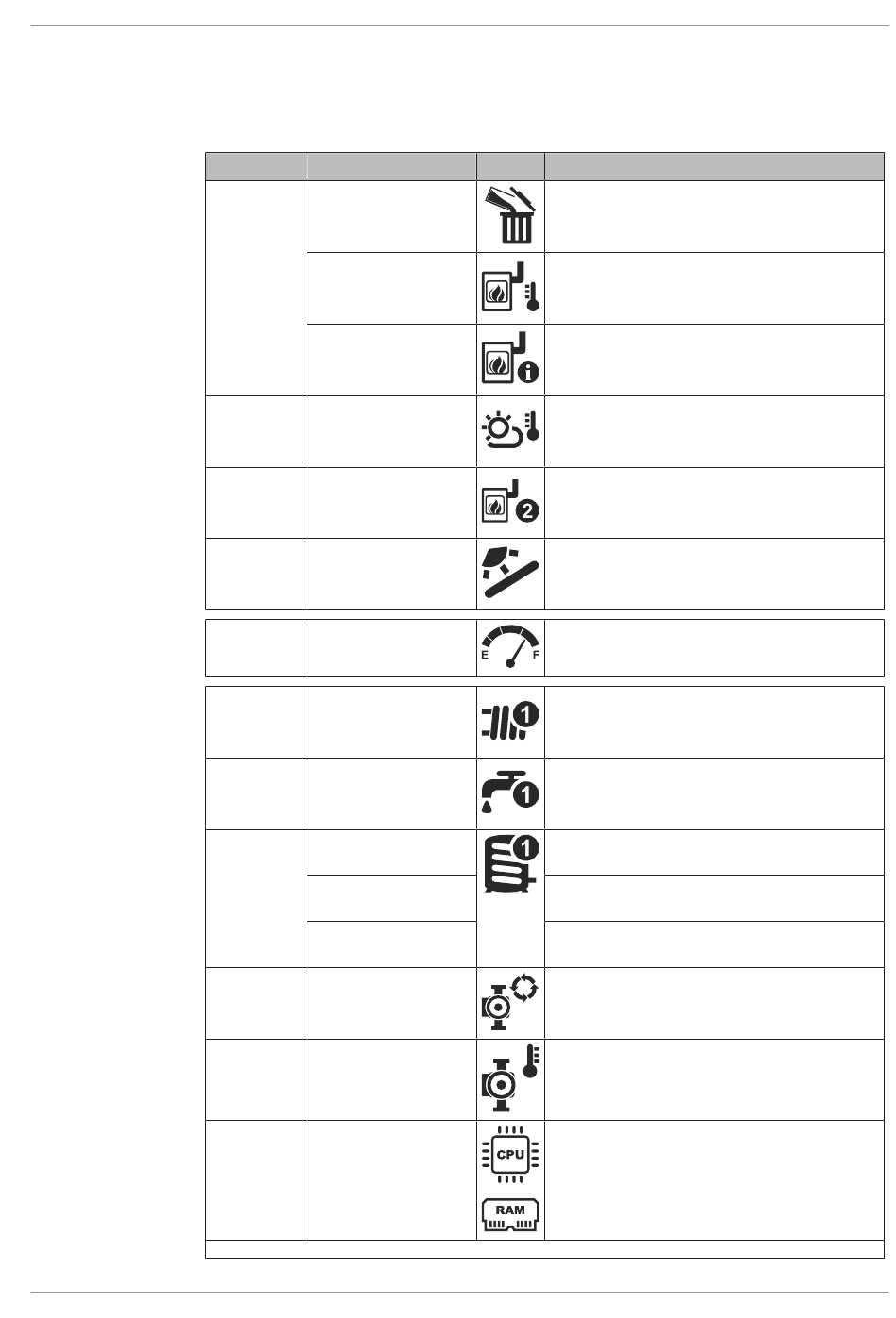

4.8.2 Select information displays

B1500423_en | Operating instructions Dual fuel boiler SP Dual compact
Tapping on the randomly selectable information displays in the basic display opens the
respective menu. The following options are available depending on the system
configuration:
Menu
Selection
Boiler
Empty ash box in
Temperatures
Operating hours
Outside air
Temperatures
temperature
Boiler 2
Temperatures
Solar
Temperatures
Pellets
Remaining pellet
amount in storeroom
Heating
Temperatures
circuit 01 –
18
DHW tank
Temperatures
01 – 08
Storage
Temperatures
tank 01 – 04
3 temperature
1)
sensors
4 temperature
1)
sensors
Circulation
Temperatures
pump
Differential
Temperatures
controller
System
CPU/RAM capacity
1. This selection merges two tiles together, reducing the maximum number of information displays!
Icon
Display of the remaining heating hours until the
message "Ash box full, please empty" appears.
Display of boiler und flue gas temperature
Display of the operating hours and the operating
hours since last maintenance.
Display of the current outside air temperature.
Display of the temperature of the secondary
boiler and the status of the burner relay
Display of the collector temperature and control
of the collector pump.
Display of the remaining amount of pellets in
storeroom.
Display of the actual flow temperature and flow
temperature setpoint of the respective heating
circuit.
Display of the current DHW tank temperature
and control of DHW tank pump of the respective
DHW tank.
Display of storage tank temperature, top and
bottom
Display of storage tank temperature, top, middle
and bottom.
Display of storage tank temperature top, store
sensor 2, store sensor 3 and bottom.
Display of the status at the flow sensor (if
present) and the current circulation return
temperature.
Display of the current temperature from source
and recess of the differential regulator
Display of the CPU and RAM capacity in
percent
Operating the system | 4
