Summary of Contents for TRAK RACER TR160

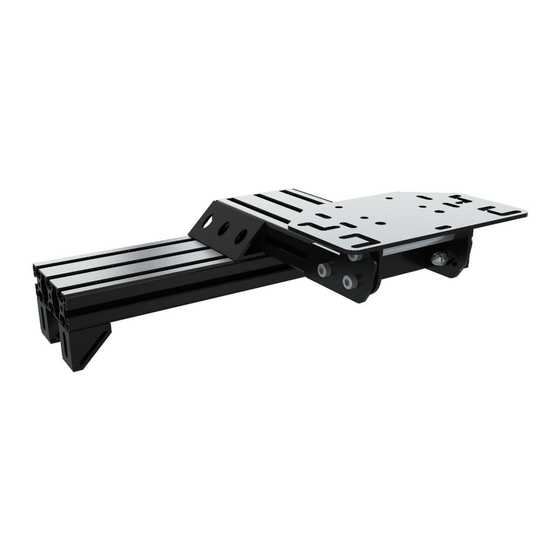

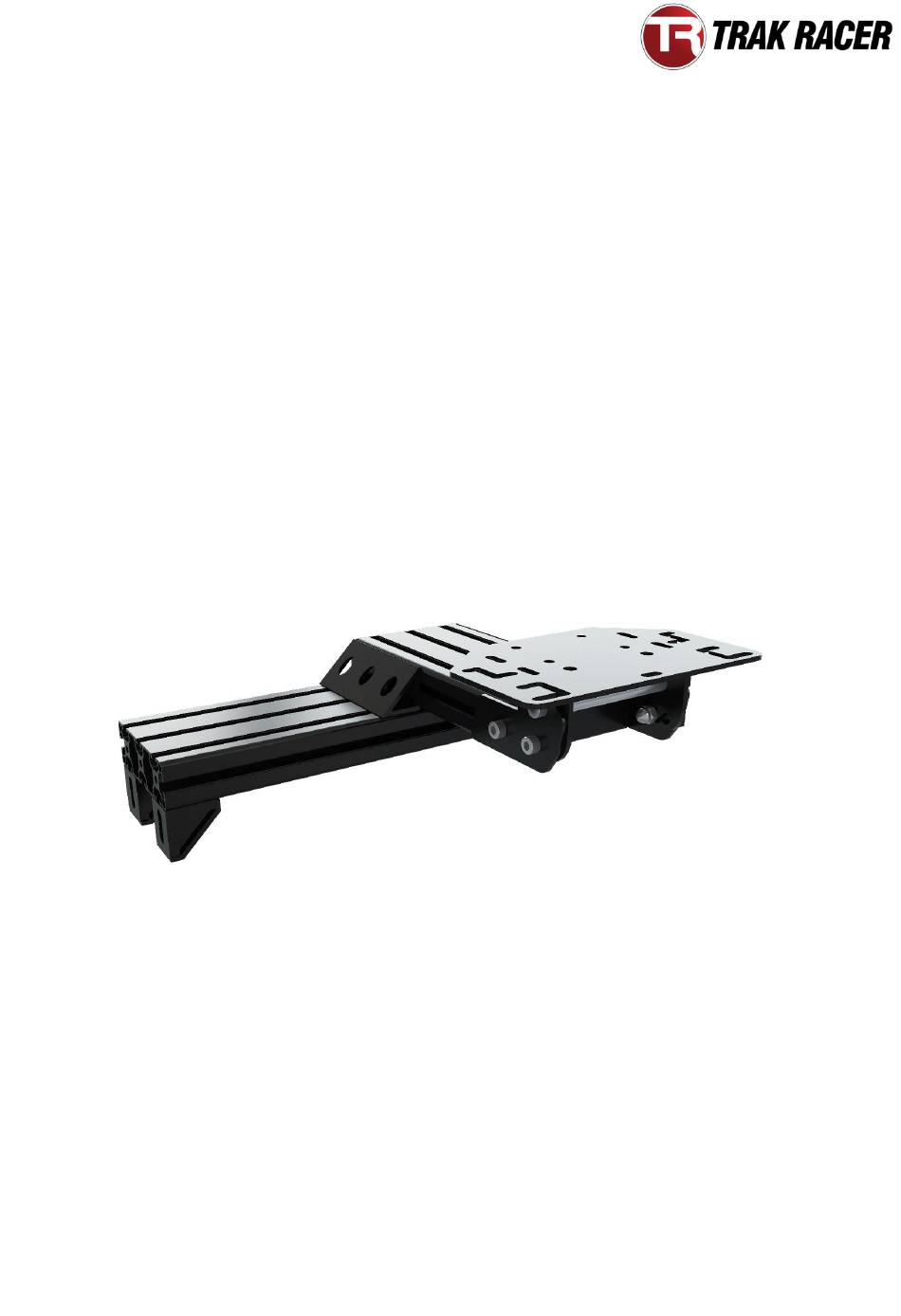

- Page 1 TR80-WM TR160 Standard Wheel Mount...
- Page 2 STEP 1 Let’s start building your new equipment! Lay out all the individual parts as shown below.
- Page 3 STEP 2 Add the listed parts as shown below. STEP 2 Add the listed parts as shown below. Note: don’t fully tighten the bolts yet.
- Page 4 STEP 3 Add the listed parts as shown below. Note: don’t fully tighten the bolts yet. After you installed these mentioned parts your build should look like shown below: Note: depending on how tight the bolts are tightened the more force is needed to adjust the mount to your likings.
- Page 5 STEP 4 Add the listed parts as shown below. Note: the best way to do this is to hand tighten all the bolts first before fully tightening all the bolts. After you installed these mentioned parts your build should look like shown below: Note: depending on how tight the bolts are tightened the more force is needed to adjust the wheel mount.
- Page 6 STEP 5 Adjust the wheel mount to your likings as shown below and fully tighten all the bolts when you are done with adjusting. Note: adjusting the position works best with the wheelbase mounted.
- Page 7 That’s it, you are done! We wish you a lot of fun with your freshly built equipment. Thank you for choosing Trak Racer...
