SMART-AVI SM-D2H-4Q Quick Start Manual

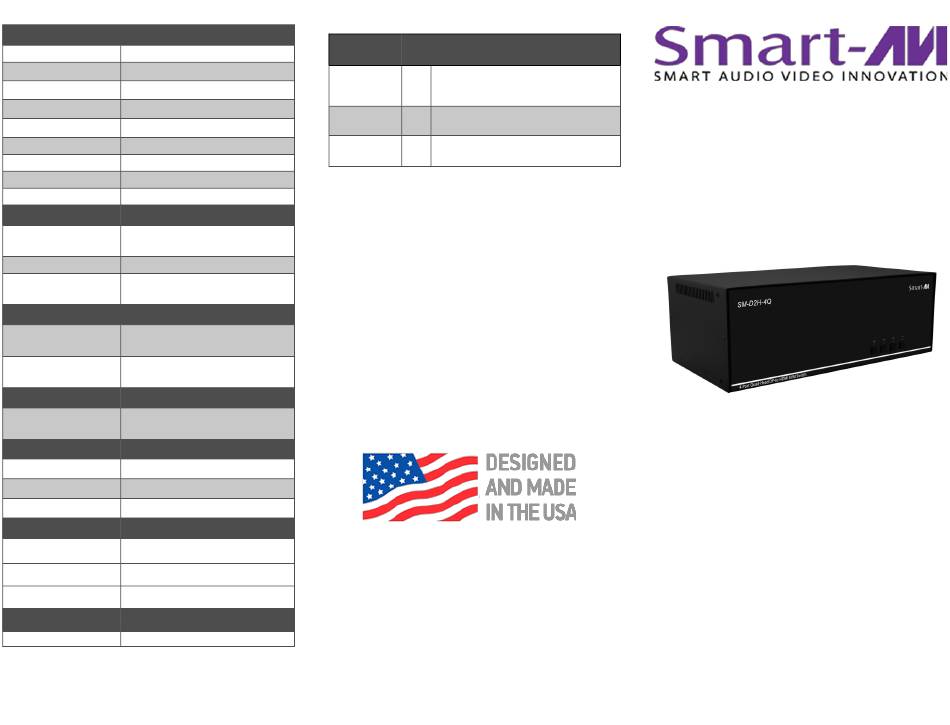

TECHNICAL SPECIFICATIONS
VIDEO
DisplayPort, HDMI
Format
Maximum Pixel Clock 165 MHz
Input Interface (16) DisplayPort
Output Interface (4) HDMI
3840 x 2160 @ 30 Hz
Resolution
5 volts p-p (TTL)
DDC
Input Equalization Automatic
Input Cable Length Up to 20 ft.
Output Cable Length Up to 20 ft.
USB
USB 2.0, 1.1, and 1.0 w/ internal
Signal Type
hub
Input Interface (4) USB Type B
(2) USB 1.1 Type A for KVM Devices
Output Interface (2) USB 2.0 Type A Transparent
AUDIO
Input (4) 3.5 mm Stereo Audio
(1) 3.5 mm Stereo Audio
Output
POWER
12V DC, 3A power adapter with
Power Requirements
center-pin positive polarity
ENVIRONMENT
Operating Temp 32° to 104° F (0° to 40° C)
Storage Temp -4° to 140° F (-20° to 60° C)
Humidity 0-80% RH, non-condensing
CONTROL
Front Panel Push Buttons with LED indicators
RS-232 Via Serial @ 115200 bps
Hot Keys Via Keyboard
OTHER
Emulation Keyboard, Mouse and Video
WHAT'S IN THE BOX
PART NO. QTY DESCRIPTION
Quad Head 4-Port DP-to-HDMI KVM
Switch with Audio and USB 2.0
SM-D2H-4Q 1
Support
12V DC, 3A power adapter with
PS12VDC3A
1
center-pin positive polarity
1 Quick Start Guide
NOTICE
The information contained in this document is subject
to change without notice. SMARTAVI makes no war-
ranty of any kind with regard to this material, includ-
ing but not limited to, implied warranties of merchant-
ability and fitness for particular purpose. SMARTAVI
will not be liable for errors contained herein or for
incidental or consequential damages in connection
with the furnishing, performance or use of this materi-
al. No part of this document may be photocopied,
reproduced, or translated into another language with-
out prior written consent from SMARTAVI, Inc.
Toll Free: (800) AVI-2123
Phone: (702) 800-0005
2455 W. Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
smartavi.com

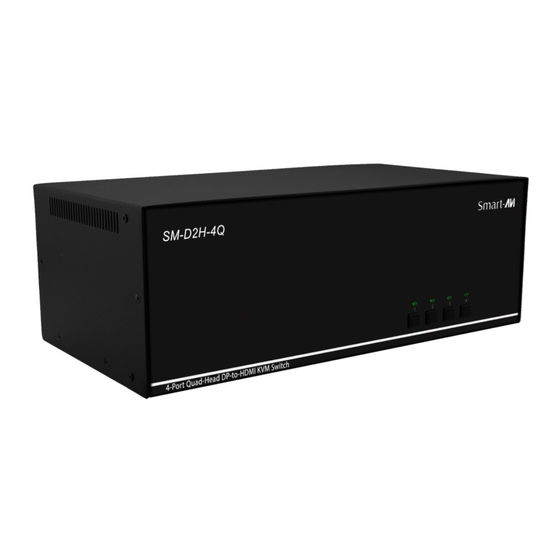

SM-D2H-4Q
Advanced KVM Switch
QUAD HEAD 4-PORT
DP to HDMI KVM SWITCH
WITH USB 2.0 SHARING
Quick Start Guide
A full Manual can be downloaded from
www.smartavi.com/SM-D2H-4Q/
