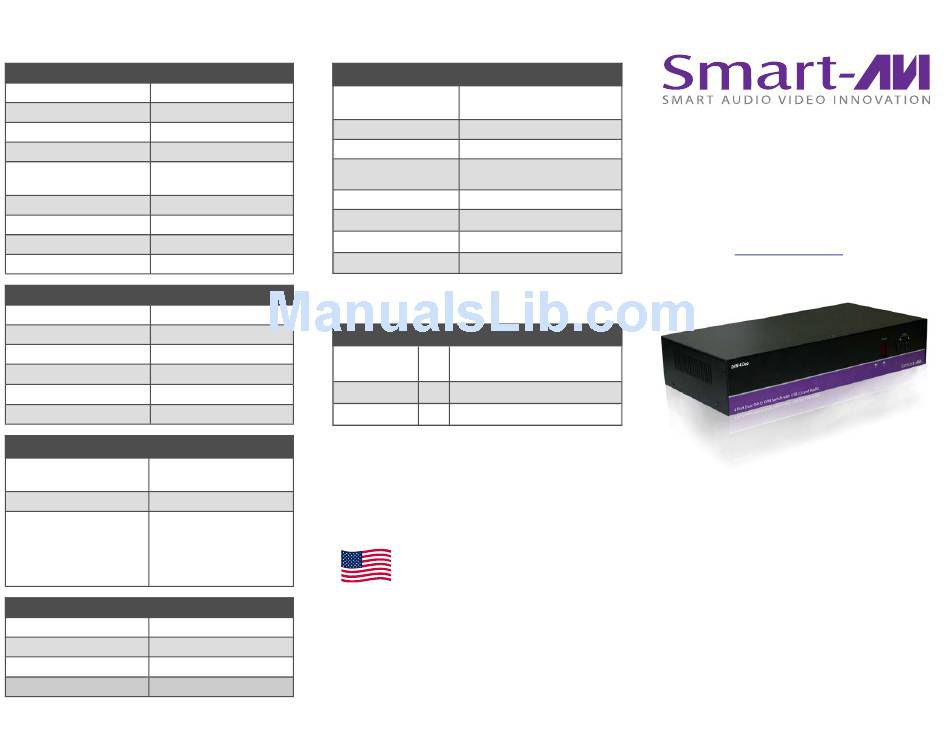

SMART-AVI DVNET-4Duo User Manual

TECHNICAL SPECIFICATIONS

VIDEO
Format DVI-D Single Link
Maximum Pixel Clock 165 MHz
Input Interface (8) DVI-D 29-pin (female)
Output Interface (2) DVI-D 29-pin (female)
Resolution Up to 1920 x 1200
@60Hz
DDC 5 volts p-p(TTL)
Input Equalization Automatic
Input Cable Length Up to 20 ft.
Output Cable Length Up to 20 ft.
AUDIO
Input Interface (4) 3.5 mm Stereo Audio
Output Interface (1) 3.5 mm Stereo Audio
Impedance 600 Ohm
Frequency Response 20 Hz to 20 kHz
Nominal Level 0-1.0 V
Common Mode Rejection at 60 dB
USB
Signal Type USB 2.0, 1.1, and 1.0 w/
internal hub
Input Interface (4) USB Type B (female)
Output Interface (2) USB Type A (female)
for keyboard and mouse
connection only;
(2) for USB 2.0 Transpar-
ent
CONTROL
Front Panel Tactile Switch
RS-232 Via Control @ 9600 bps
Hotkeys Via Keyboard
IR Optional
TECHNICAL SPECIFICATIONS
OTHER
Power External 100-240 VAC/
5VDC4A @20W
Dimensions 17" W x 3.5" H x 6.75" D
Weight 10 lbs.
Approvals UL, CE, ROHS Compliant
Operating Temp. 32-131 °F (0-55 °C)
Storage Temp. -4-185 °F (-20-85 °C)
Humidity Up to 95%
Emulation Keyboard and Mouse
WHAT'S IN THE BOX
PART NO. QTY DESCRIPTION
DVN-4DuoS 1 DVNET-4Duo, 4x1 Dual DVI-D,
USB 2.0, Audio Switch
Power Supply 1 PS5VDC4A

User Manual

1
Designed and Manufactured in the USA

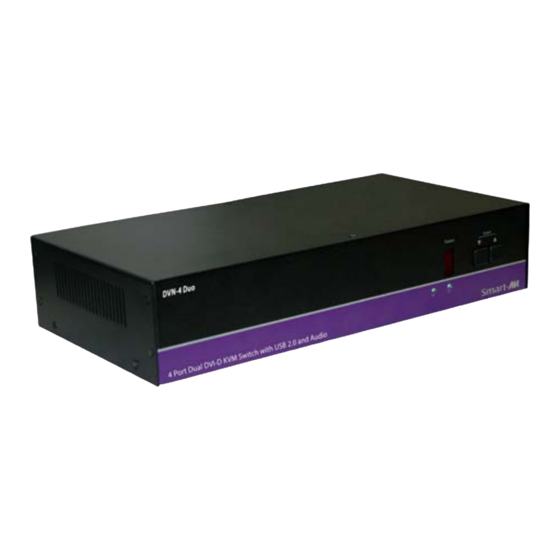

DVNET-4Duo
4-Port Dual Display DVI-D
KVM Switch with
USB 2.0 Sharing
Access and control KVM and audio on
up to 4 computers using one
USB keyboard, one USB mouse and 2
DVI-D monitors
USER MANUAL
