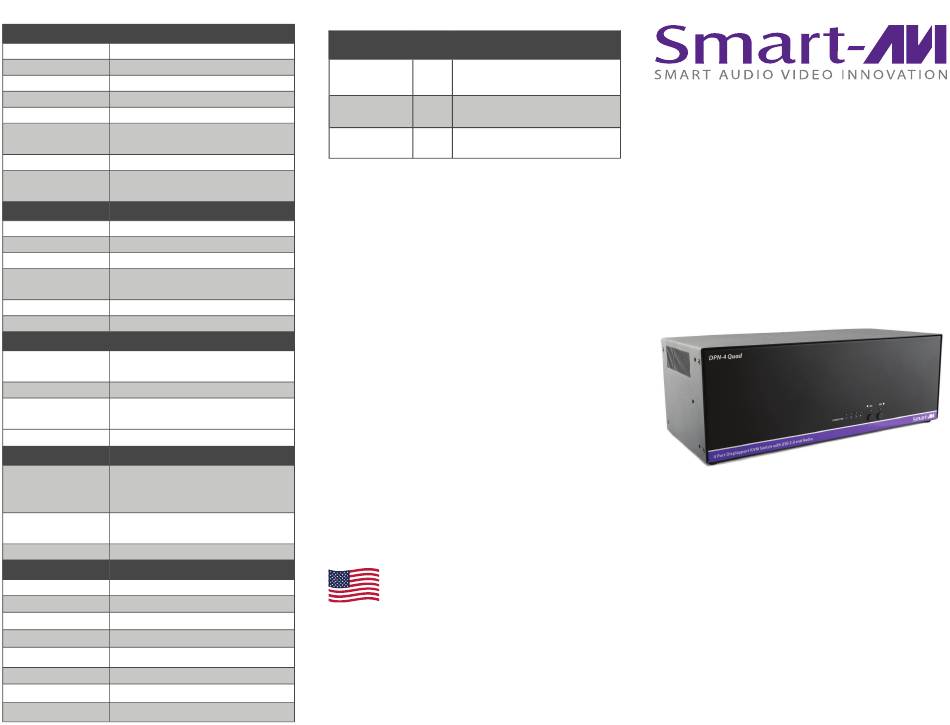

SMART-AVI DPN-4 Quad Quick Start Manual

TECHNICAL SPECIFICATIONS

VIDEO
Format
DisplayPort 1.2
Link Rate
5.4 Gbps/lane
Input Interface (16) DisplayPort (female)
Output Interface (4) DisplayPort (female)
Resolution (3840x2160 @30Hz)
Faux transaction mode option over
DDC
Aux channel
Input Equalization Automatic
Bandwidth Fre-
10.2Gbps
quency
AUDIO
Input Interface (4) 3.5 mm Stereo Audio
Output Interface (1) 3.5 mm Stereo Audio
Impedance 600 Ohm
Frequency Re-
20 Hz to 20 kHz
sponse
Nominal Level 0-1.0 V
Common Mode Rejection at 60 dB
USB
USB 2.0, 1.1, and 1.0 w/ internal
Signal Type
hub
Input Interface (4) USB Type B (female)
(2) USB 1.1 Type A (female) for
Output Interface
keyboard and mouse
(2) USB 2.0 Type A Transparent
CONTROL
Buttons, Select/Switch between
Front Panel Video & Audio sources and view
the current selected channel.
DB9 Female - 9600 N,8,1, No flow
RS-232
control
Hot Keys Via Keyboard
OTHER
Power Adapter External 100-240 VAC/ 5VDC2A
Consumption 20 W (Max)
Dimensions 4.5" H x 6" D x 12.75" W
Weight
5.6 lbs
Operating Temp.
+23 to +95°F (-5 to +35°C)
Storage Temp. -4 to 185°F (-20 to 85°C)
Humidity up to 90% (No Condensation)
Emulation Keyboard and mouse only
WHAT'S IN THE BOX
PART NO. QTY DESCRIPTION
DPN-4Quad, 4x4 DisplayPort,
DPN-4QUADS 1
USB 2.0, Audio Switch
PS5VDC4A 1 Power Adapter
1 Quick Start Guide
Brackets for mounting this device in a standard 19"
rack may be optionally ordered from Smart-AVI.

NOTICE

The information contained in this document is
subject to change without notice. SmartAVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for particular purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential damages
in connection with the furnishing, performance or
use of this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
20161020
Designed and Manufactured in the USA
800.AVI.2131
Tel: (818) 503-6200 | Fax: (818) 503-6208
11651 Vanowen St. North Hollywood, CA 91605
SmartAVI.com

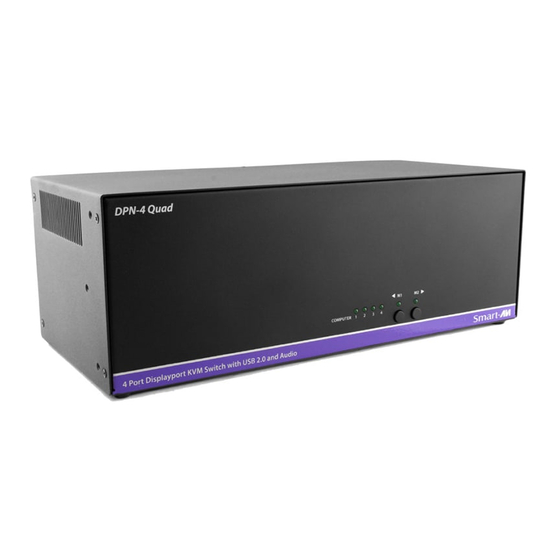

DPN‐4 Quad
4-Port DisplayPort KVM Switch
with USB 2.0 and Audio
Supports 4 Computers with 4
DisplayPort Monitors each
Multi-platform KVM switch
capable of managing up to 4
different computers through four
DisplayPort monitors, one USB
keyboard & USB mouse
Quick Start Guide
