SMART-AVI SM-DVN-82X Quick Start Manual

TECHNICAL SPECIFICATIONS

VIDEO
DVI Dual Link
Format
Maximum Pixel Clock 165 MHz
Input Interface (8) DVI-D 29-pin (female)
Output Interface (2) DVI-D 29-pin (female)
2560 x 1600 @ 60Hz
Resolution
5 volts p-p (TTL)
DDC
Input Equalization Automatic
Input Cable Length Up to 20 ft.
Output Cable Length Up to 20 ft.
USB
USB 1.1 and 1.0 Keyboard and
Signal Type
Mouse only.
Input Interface (8) Keyboard-Mouse
(4) USB 1.1 Type A for KVM Devices;
Output Interface (4) USB 2.0 Type A Transparent
AUDIO
Input (8) Connector Stereo 3.5mm Female
(1) Connector Stereo 3.5mm Female
Output
POWER
12V DC, 3A power adapter with cen-
Power Requirements
ter-pin positive polarity
ENVIRONMENT
Operating Temp 32° to 104° F (0° to 40° C)
Storage Temp -4° to 140° F (-20° to 60° C)
Humidity 0-80% RH, non-condensing
CONTROL
Front Panel Push Buttons with LED indicators
RS-232 Via Serial @ 115200 bps
Hot Keys Via Keyboard
OTHER
Emulation Keyboard, Mouse and Video
WHAT'S IN THE BOX
PART NO. QTY DESCRIPTION
SDVN-82-X 1 8-port, 2 User DVI-D Matrix KVM Switch
12V DC, 3A power adapter with center-
PS12VDC3A
1
pin positive polarity.
1 Quick Start Guide
NOTICE
The information contained in this document is subject
to change without notice. SmartAVI makes no
warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for particular purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential damages in
connection with the furnishing, performance or use of
this material. No part of this document may be
photocopied, reproduced, or translated into another
language without prior written consent from SmartAVI,
Inc.
Toll Free: (800) AVI-2123
Phone: (702) 800-0005
2455 W. Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
smartavi.com

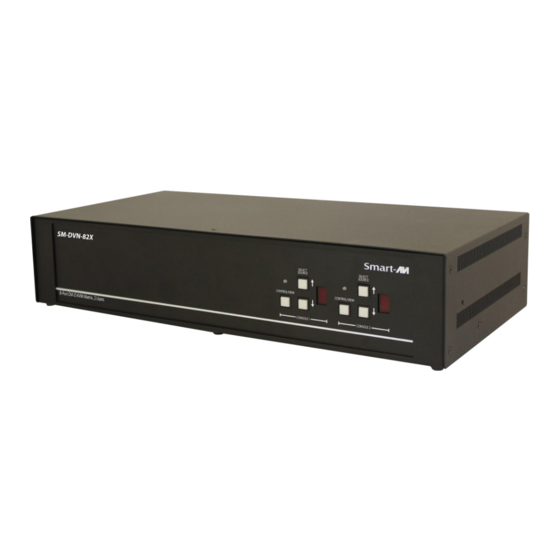

SM-DVN-82X
Matrix KVM Switch
ADVANCED 8-PORT, 2 USERS
SINGLE-HEAD DVI-D MATRIX
KVM SWITCH WITH AUDIO
Quick Start Guide
A full Manual can be downloaded from
www.smartavi.com/SM-DVN-82-X/
