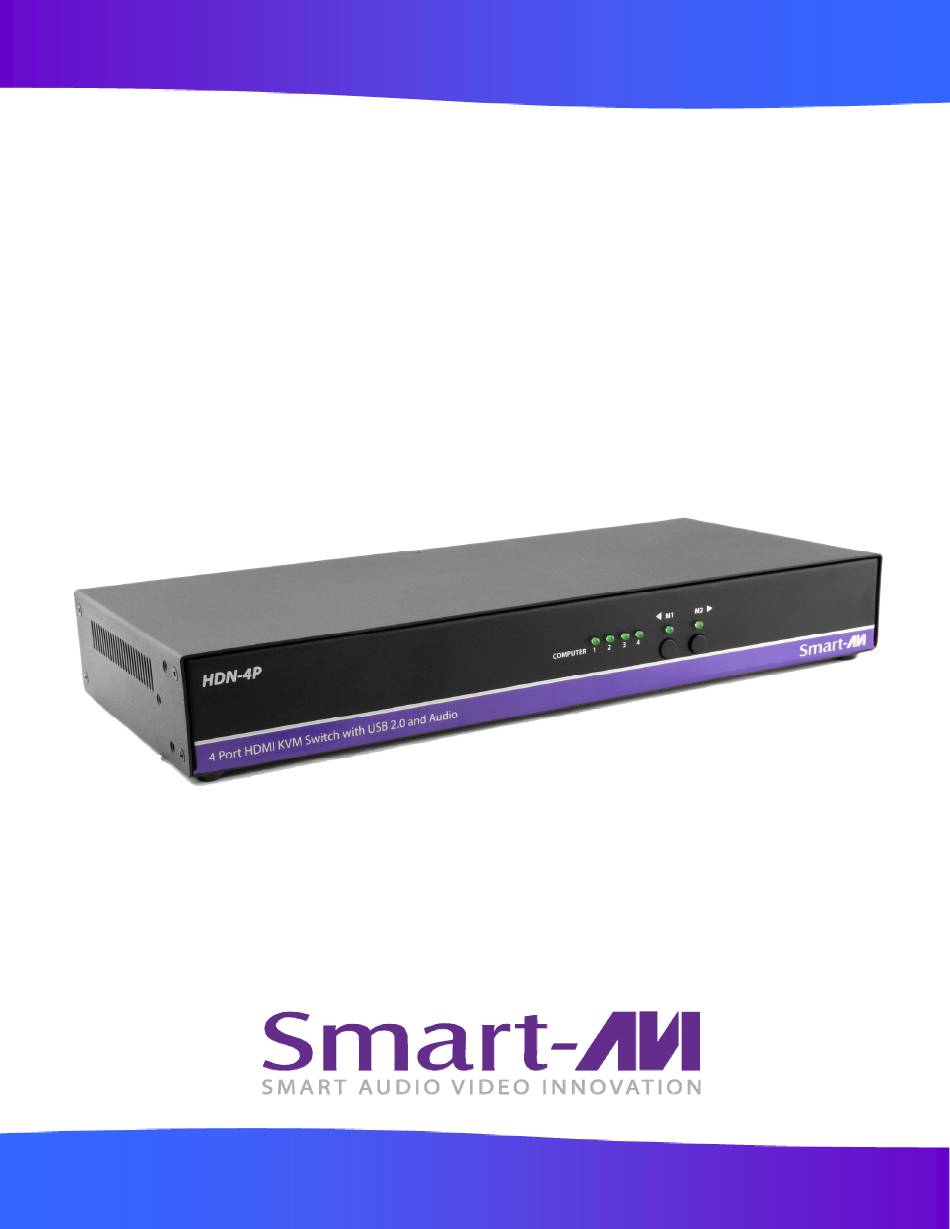

- Page 1 HDN‐4P User Manual 4-Port HDMI KVM Switch with USB 2.0 and Audio Sharing Access and Control up to 4 Computers from a single Workstation Made in U.S.A. www.SmartAVI.com 1-800-AVI-2131...
- Page 2 TABLE OF CONTENTS WHAT'S IN THE BOX? INTRODUCTION FEATURES APPLICATIONS TECHNICAL SPECIFICATIONS HARDWARE INSTALLATION CONTROL ESTABLISHING AN RS-232 CONNECTION LIMITED WARRANTY STATEMENT WHAT’S IN THE BOX? PART NO. DESCRIPTION HDN-4-PS 4-Port HDMI KVM Switch with USB 2.0 and Audio Sharing PS5VDC2A Power Adapter Quick Start Guide...

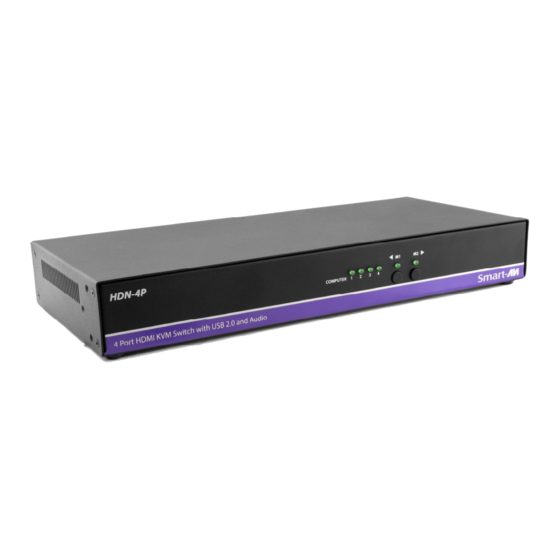

- Page 3 INTRODUCTION The HDN-4P is a dedicated multi-platform KVM switch capable of managing up to 4 different computers through one HDMI monitor, one USB keyboard and one mouse. It also supports a single set of speakers and up to 2 USB 2.0 Devices. The USB emulation technology utilized by the HDN-4P enables immediate hotkey source switching through a remote USB keyboard and mouse.
- Page 4 TECHNICAL SPECIFICATIONS VIDEO HDMI 1.4, 1.0 Format Input Interface (4) HDMI (female) Output Interface (1) HDMI (female) Resolution Up to 4K (3840x2160 @30Hz) 5 volts p-p (TTL) Input Equalization Automatic Input Cable Length Up to 20 ft. Output Cable Length Up to 20 ft.
- Page 5 HARDWARE INSTALLATION 1. Ensure that power is disconnected from the HDN-4P. 2. Connect the HDMI cables, and USB cables (male-A to male-B) from the computers to the respective ports on the HDN-4P. 3. Optionally connect Audio cables from the computers to the respective ports on the HDN-4P. 4.
- Page 6 CONTROL Front Panel Control To switch ports using the front panel, press the M1 or M2 button to navigate from computer to computer. The numbered LED lights will indicate which computer is selected. EDID learning is also done through the front panel buttons by pressing both buttons simultaneously.
- Page 7 Check the device and your PC to determine if you need a male to male or a male to female cable and how long it needs to be. The Smart-AVI device requires a straight through cable. You can use a Null Mo- dem Adapter to convert a crossed cable to a straight through cable.
- Page 8 LIMITED WARRANTY STATEMENT A. Extent of limited warranty Smart‐AVI Technologies, Inc. warrants to the end‐user customers that the Smart‐AVI product specified above will be free from defects in materials and workmanship for the duration of 1 year, which duration begins on the date of purchase by the customer. Customer is responsible for maintaining proof of date of purchase. Smart‐AVI limited warranty covers only those defects which arise as a result of normal use of the product, and do not apply to any: a. Improper or inadequate maintenance or modifications b. Operations outside product specifications c. Mechanical abuse and exposure to severe conditions If Smart‐AVI receives, during applicable warranty period, a notice of defect, Smart‐AVI will at its discretion replace or repair defective product. If Smart‐AVI is unable to replace or repair defective product covered by the Smart‐AVI warranty within reasonable period of time, Smart‐AVI shall refund the cost of the product. Smart‐AVI shall have no obligation to repair, replace or refund unit until customer returns defective product to Smart‐AVI. Any replacement product could be new or like new, provided that it has functionality at least equal to that of the product being replaced. Smart‐AVI limited warranty is valid in any country where the covered product is distributed by Smart‐AVI. B. Limitations of warranty To the extant allowed by local law, neither Smart‐AVI nor its third party suppliers make any other warranty or condition of any kind whether expressed or implied with respect to the Smart‐AVI product, and specifically disclaim implied warranties or conditions of merchantability, satisfactory quality, and fitness for a particular purpose. C. Limitations of liability ...
- Page 9 NOTICE The information contained in this document is subject to change without notice. SmartAVI makes no war‐ ranty of any kind with regard to this material, including but not limited to, implied warranties of merchant‐ ability and fitness for particular purpose. SmartAVI will not be liable for errors contained herein or for inci‐ dental or consequential damages in connection with the furnishing, performance or use of this material. No part of this document may be photocopied, reproduced, or translated into another language without prior written consent from SmartAVI Technologies, Inc. 20170125 ...
