SMART-AVI DPN-4P User Manual
4-port displayport 1.2 kvm switch with full keyboard and mouse emulation and usb 2.0 sharing
Hide thumbs
Also See for DPN-4P:
- User manual (9 pages) ,
- Quick start manual (2 pages) ,
- Quick start manual (2 pages)
Advertisement
TECHNICAL SPECIFICATIONS
VIDEO
Format
DisplayPort 1.2
Link Rate
5.4 Gbps/lane
Input Interface
(4) DisplayPort (female)
Output Interface
(1) DisplayPort (female)
Resolution
Up to 3840 x 2160 @60Hz
DDC
FAUX transaction mode op-
tion over Aux channel
Input Equalization
Automatic
Bandwidth Frequency
10.2 Gbps
USB
Signal Type
USB 2.0, 1.1, and 1.0 w/
internal hub
Input Interface
(4) USB Type B (female)
Output Interface
(2) USB Type A (female) for
keyboard and mouse con-
nection only;
(2) for USB 2.0
Transparent
CONTROL
Front Panel
Tactile Switches
RS-232
Via Control @ 9600 bps
Hotkeys
Via Keyboard
Emulation
Optional
OTHER
Power
External 100-240 VAC/
5VDC4A @20W
Dimensions
12" W x 1.75" H x 6" D
Weight
3.5 lbs
Approvals
UL, CE, ROHS Compliant
Operating Temp.
23 to 95 °F (-5 to 35 °C)
Storage Temp.
-4-185 °F (-20-85 °C)
Humidity
Up to 95%
WHAT'S IN THE BOX
PART NO.
QTY DESCRIPTION
DPN-4P
1

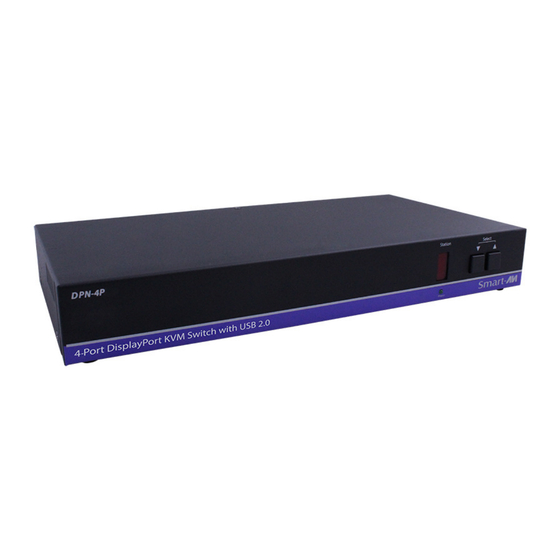

4-Port DisplayPort KVM Switch
with USB 2.0 and Front Panel
Push Buttons.
PS5VDC4A
1
Power Supply
User Manual
1
Designed and Manufactured in the USA
800.AVI.2131
Tel: (818) 503-6200
Fax: (818) 503-6208
11651 Vanowen St. North Hollywood, CA 91605
SmartAVI.com
DPN-4P
User Manual
4-Port DisplayPort 1.2 KVM Switch
with Full Keyboard and Mouse
Emulation and USB 2.0 Sharing
