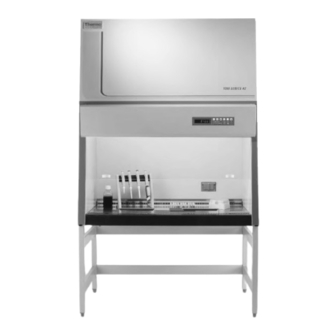

- Page 1 Cabinet Installation Model 1300 Series A2 Class II, Type A2 Biological Safety Cabinet Valid: 3/2009 / 50113137 (7991355 Rev. 10)
- Page 2 Model 1300 Series A2 Copyright These operating instructions are protected by copyright. Rights resulting the- reof, particularly reprint, photomechanical or digital postprocessing or repro- duction, even in part, are only allowed with the written consent of the Thermo Fisher Scientific Inc.

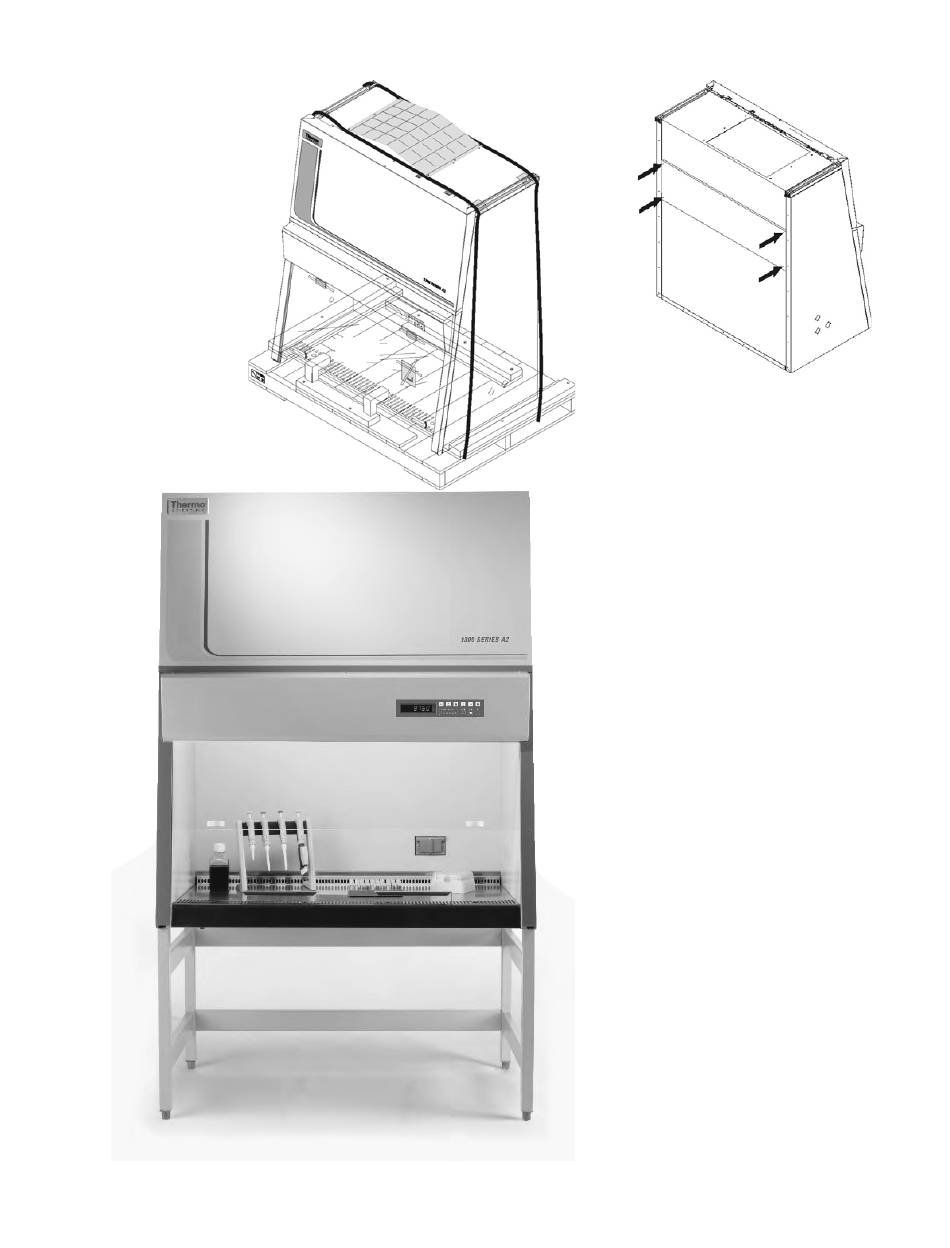

- Page 3 Model 1300 Series A2 Cabinet installation 1 Removal from pallet Allow the unit to remain on the pallet until placed into its work location. Tool requirements (not supplied) Wire cutters 7/16" socket with ratchet Cabinet lifting device 1" Open end or adjustable wrench 1.
- Page 4 Model 1300 Series A2 Cabinet installation 2 Installing the cabinet Cabinet Without Stand: • Place the cabinet without stand onto a stable structure capable of supporting the weight of the cabinet so that the weight does not rest upon the drain pan.
- Page 5 Model 1300 Series A2 Cabinet installation Installing the Adjustable Height Stand CAUTION! Make sure each leveler is turned all the way in, to avoid damaging the threads during installation. 1. Locate the four telescoping legs in the side panel packaging. Install adjustable leveler from the hardware bag into the swaged (flared) end of the legs.
- Page 6 Model 1300 Series A2 Cabinet installation 3 Unlocking the window counterweight/glass The front window counterweight is secured to the rear of the cabinet to protect it from damage during transport. CAUTION! The counterweight at the rear of the cabinet compensates for the weight of the front window.
- Page 7 Model 1300 Series A2 Cabinet installation Fig. 5...
- Page 8 Model 1300 Series A2 Cabinet installation 5 Levelling the cabinet Position the cabinet at the final installation site and level it. Cabinet without stand: • Place a bubble level onto the work tray surface and adjust the structure until the level indicates an absolutely horizon- tal position in all directions.
-
Page 9: Control Panel
Model 1300 Series A2 Control panel The operating panel is divided into three functional sections: A: Display B: Keys C: Status indicator A: Display Display for numbers and text. B: Keys 2 Key for switching the cabinet on / off (switch-off only when cabinet is in standby mode, i.e., the window is in closed position). - Page 10 Model 1300 Series A2 Universal Piping Universal piping is a factory installed option. The piping can be installed on either, or both, sides. Access points, depending on selected installation, are available on the top, sides, or bottom of the cabinet. Pipe threads are 1/4" FPT. Refer to Fig. 8 below.
