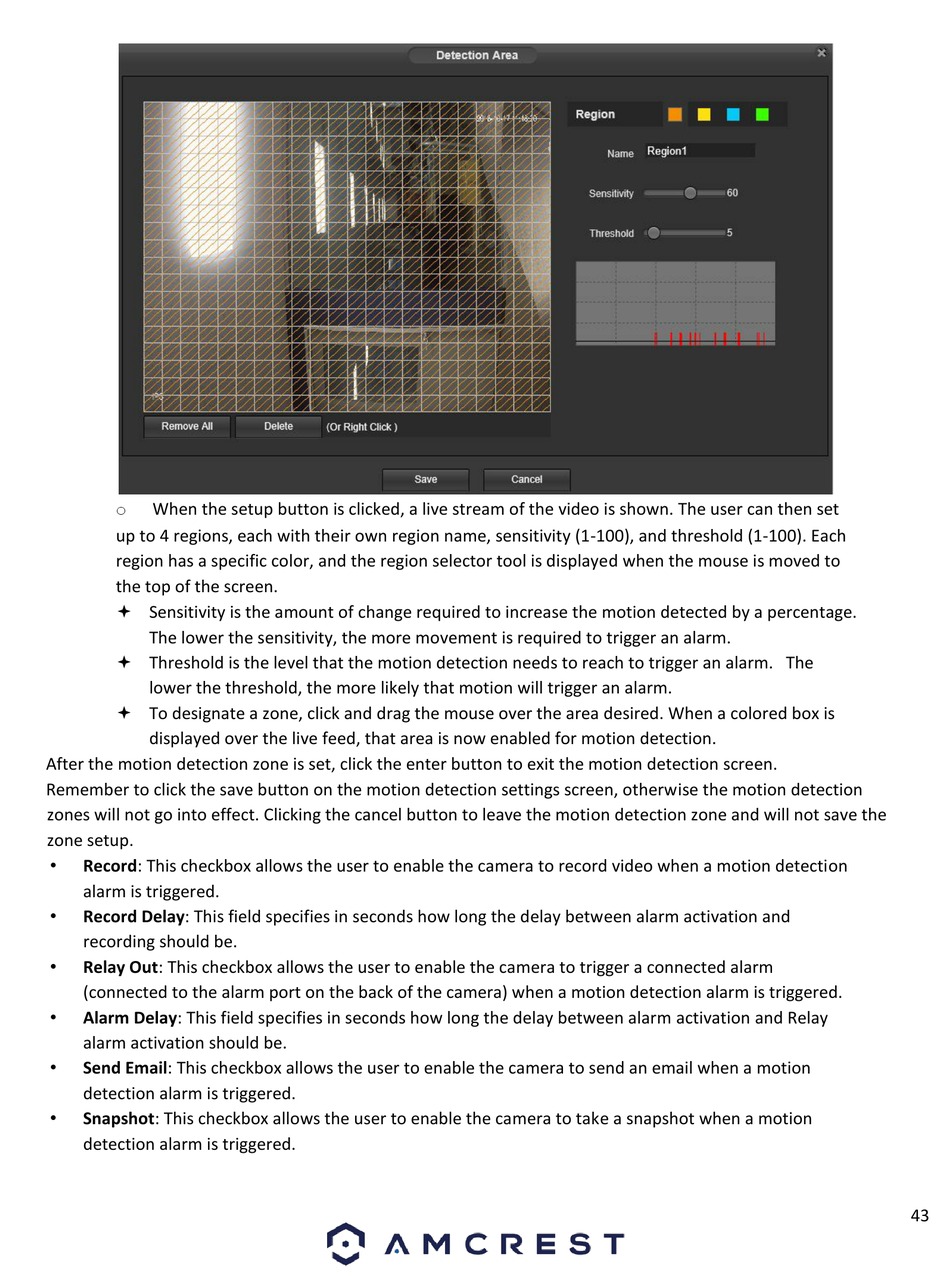

When the setup button is clicked, a live stream of the video is shown. The user can then set
up to 4 regions, each with their own region name, sensitivity (1-100), and threshold (1-100). Each
region has a specific color, and the region selector tool is displayed when the mouse is moved to
the top of the screen.
 Sensitivity is the amount of change required to increase the motion detected by a percentage.
The lower the sensitivity, the more movement is required to trigger an alarm.
 Threshold is the level that the motion detection needs to reach to trigger an alarm. The
lower the threshold, the more likely that motion will trigger an alarm.
 To designate a zone, click and drag the mouse over the area desired. When a colored box is
displayed over the live feed, that area is now enabled for motion detection.
After the motion detection zone is set, click the enter button to exit the motion detection screen.
Remember to click the save button on the motion detection settings screen, otherwise the motion detection
zones will not go into effect. Clicking the cancel button to leave the motion detection zone and will not save the
zone setup.
•
Record: This checkbox allows the user to enable the camera to record video when a motion detection
alarm is triggered.
•
Record Delay: This field specifies in seconds how long the delay between alarm activation and
recording should be.
•
Relay Out: This checkbox allows the user to enable the camera to trigger a connected alarm
(connected to the alarm port on the back of the camera) when a motion detection alarm is triggered.
•
Alarm Delay: This field specifies in seconds how long the delay between alarm activation and Relay
alarm activation should be.
•
Send Email: This checkbox allows the user to enable the camera to send an email when a motion
detection alarm is triggered.
•
Snapshot: This checkbox allows the user to enable the camera to take a snapshot when a motion
detection alarm is triggered.
