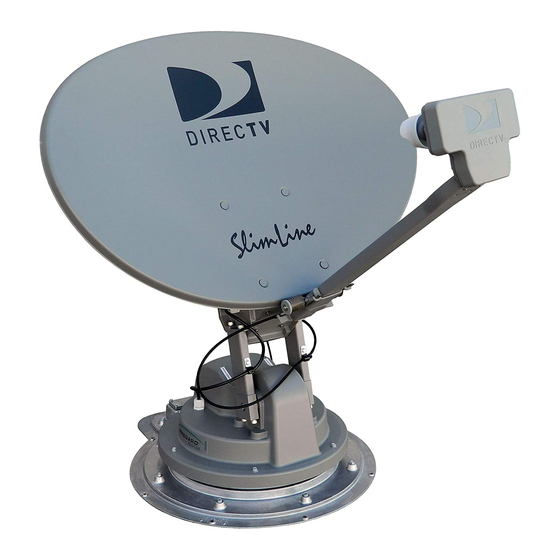

- Page 1 Trav’ler Automatic Multi-Satellite TV Antenna Wrap Cable Replacement Instruction Manual for models SK-SWM3 and SK-1000 For help, email help@winegard.com or call 1-800-288-8094 2452532...
- Page 2 Removing the Turret Before you begin make sure the antenna is in the stowed position, and the interface box is unplugged from power. Disconnect the coax cable(s) from the base and sheath cable from the vertical ports. Remove the four screws from the cable cover. Remove the cable cover.
- Page 3 Remove the 9 screws holding the turret to the transition plate Flip turret over, remove gasket and moisture and barrier. Remove p-Clip holding wrap cable in place. Removing Electronics Disconnect cable connections from electronics module. Using provided nut driver remove the 4 screws holding the electronics module in place...
- Page 4 Remove wrap cable from rubber grommet on electronics module. Removing Elevation Motor Assembly Remove the 4 screws holding the elevation motor in place. Remove the elevation motor and disconnect cable from motor. Replacing Wrap Cable Remove 2 screws securing wrap cable to turret, and remove wrap cable.
- Page 5 Reinstalling Elevation Motor and Electronics Reconnect cable to elevation motor and reinstall. Secure in place using the 4 screws. Feed wrap cable through rubber grommet on electronics Using provided nut driver and 4 screws secure electronics back in place. Attach cables to electronics in the following order from left to right.
- Page 6 Securing Wrap Cable Seat coax ports in the following order from top to bottom. • Black/Red • Blue/Blue • Blue/Black Secure Ports in place using the nuts removed in “Removing the Turret” section step 4. Secure p-clip to turret. Seat coax ports at base in the following order from left to right.
- Page 7 Slide data cable connection through hole in base and secure in place using the retaining nut from “Removing the Turret” section step 3. Reconnect data cable and reinstall cable cover, secure cover with 4 screws. Reconnect coax cables at base and sheath cable to vertical ports.
- Page 8 MORE PRODUCT WARRANTY INFORMATION OR CALL 800-288-8094 For help, email help@winegard.com or call 1-800-288-8094 Winegard Company 2736 Mt. Pleasant St. Burlington, IA 52601 Printed in U.S.A. © 2023 Winegard Company Rev 11-23 2452532 Winegard is a registered trademark of Winegard Company.
