Automatic Multi-Satellite TV Antenna
Installation Manual
Model SK2DISH
Trav'ler
Pro DISH
Antenna
®
®
To download the manual in color and for up-to-date product
and warranty information, visit winegard.com/travler
For Technical Services:
Email help@winegard.com or call 1-800-788-4417
For receivers and programming:
Call 1-866-609-9374
Product registration:
Create an account to register your product at
winegard.com/register
2452459 REV 1-22
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Winegard Trav'ler Pro SK2DISH
Summary of Contents for Winegard Trav'ler Pro SK2DISH
- Page 1 Trav'ler Pro DISH Antenna ® ® To download the manual in color and for up-to-date product and warranty information, visit winegard.com/travler For Technical Services: Email help@winegard.com or call 1-800-788-4417 For receivers and programming: Call 1-866-609-9374 Product registration: Create an account to register your product at winegard.com/register...
-
Page 2: Specifications

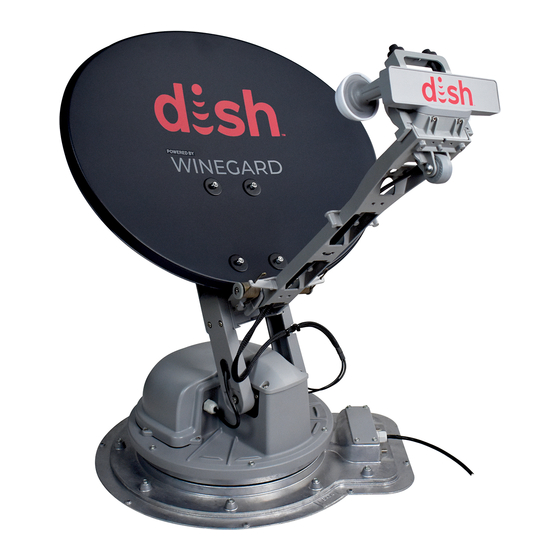

Before Installing the Antenna You have selected the Winegard Trav'ler Pro automatic multi-satellite TV antenna, with a low travel height (under ten inches). The ® ® Trav'ler Pro antenna will deliver the ability to view multiple satellites at the same time with unmatched signal strength, maximum HD capabilities, and easy-to-use functionality—just like you get at home. -
Page 3: Tools Needed
Parts Mount base with 30' power/control cable Reflector Preinstalled on transition plate Interface box (IDU) Interface box power supply Painted Mounting Reflector Reflector Cable entry 24" AC power cord 30' black coax cable (2) screw (20) bolt (4) washer (4) plate nut (4) Tools Needed... -
Page 4: Clearance Requirements
Do not exceed 55' of cable! WARNING CL-SK26 Do not install the antenna in a FIGURE 3. Range of motion for Trav'ler Pro SK2DISH antenna location where a gap of 3/16" or more exists between the bottom of the antenna and the roof, as the Sold separately antenna may damage the roof. -
Page 5: Install The Antenna
When installing the antenna on a rubber roof, making sure to cover each screw head. Be Winegard recommends using a Model SKA-004 careful not to get any sealant above the transition plate. See figure 6. -
Page 6: Setup Diagrams
Setup Diagrams Interface box (IDU) Power supply Wireless Joey Access Point To host To ODU Ethernet Hopper 3 MUST BE CONNECTED TO PORT C FIGURE 6. Hopper/Joey wireless setup Interface box (IDU) Power supply Hopper 3 To ODU To host MUST BE CONNECTED TO PORT C Joey... - Page 7 Install the Reflector (New Install) When the sealant around the transition plate and cable entry plate has begun to cure, check that there is nothing above the unit that might prevent the antenna from raising. Then follow the instructions to raise the antenna for reflector installation. 1.
- Page 8 Upgrade Installation Upgrade to Trav'ler Pro Raise the Antenna. 1. Power on the IDU by pressing and holding the Power button 6. Press SELECT to the move the asterisk to "Yes" and press for three seconds, then press and hold the Enter button to ENTER.
- Page 9 Disconnect the Cables Remove the Reflector (optional) 1. Remove the four 5/16" screws from the cable cover, and Once the IDU has been powered off and the power/control remove the cable cover (figure 11). cable and power cord have been disconnected you will need to get on top of the coach.
- Page 10 Install the New Turret Replace IDU and Power Supply 1. If the base seal and gasket is on the transition plate 1. At this point replace the original IDU and power supply with make sure to remove both (see Figure 15). the Trav'ler Pro IDU and power supply.
- Page 11 Upgrade Reflector Installation cont. 7. Line up the four holes on the reflector with the four holes on the mounting bracket. Insert a reflector bolt through one of Bolts are inserted from the back of the reflector. the four holes on the back of the reflector. Insert one painted Washers and nuts are threaded onto the bolts from the front of the reflector.
- Page 12 If a defect in material or workmanship is discovered, Customer may take the product to an authorized Winegard dealer for service. Customer must provide proof of purchase to verify the product is under warranty. If the product is brought to an authorized Winegard dealer for service prior to expiration of year one (1) of the warranty period and a defect in material or workmanship is verified by Winegard Technical Services, Winegard Company will cover the Winegard dealer's labor charges for warranty service.
