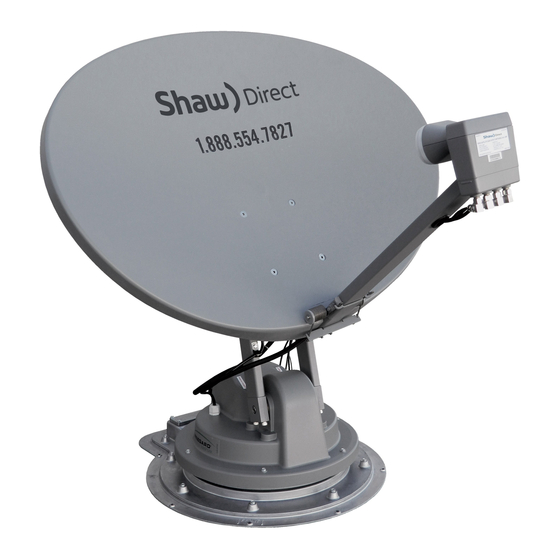

Winegard TRAV’LER SK-7003 Installation Manual

Automatic multi-satellite tv antenna trav’ler shaw direct antenna

Hide thumbs Also See for TRAV’LER SK-7003:

Operation manual (5 pages)

Table Of Contents

Table of Contents

Quick Links

Need help?

Do you have a question about the TRAV’LER SK-7003 and is the answer not in the manual?

Questions and answers

Summary of Contents for Winegard TRAV’LER SK-7003

Page 1 Shaw Direct Antenna ® www.winegard.com/mobile For Technical Services, email help@winegard.com or call 1-800-788-4417 Product Registration Please register your Winegard product by filling out and returning the Product Registration Card provided or by completing the online registration form at http://www.winegard.com/registration. 2452293...
Page 2: Specifications
Before Installing the Antenna You have selected the Winegard TRAV’LER automatic multi-satellite TV antenna. The TRAV’LER antenna will deliver ® ® the ability to view multiple satellites at the same time with unmatched signal strength, the lowest travel height on the market, maximum HD capabilities and easy to use functionality—just like you get at home.
Page 3: Clearance Requirements
Clearance Requirements The arm of the TRAV’LER antenna extends 33” from the center of the base and may operate only 6” above the surface to which the TRAV’LER antenna is mounted. To ensure you have adequate clearance for the TRAV’LER antenna to safely operate, check that there are no obstructions taller than 6”...
Page 4: Choosing A Location For Cables To Enter The Vehicle
Make sure cables are long enough to reach their destination points inside the vehicle. For cable CL-SK26 runs longer than 30’, an extension may be purchased. Winegard recommends using Model CL-SK26 25’ extension cable. Do not exceed 55’ of cable!
Page 5: Installing The Antenna
FIGURE 6. Antenna (fully assembled) installed parallel to centerline of RV SKA-004 When installing the antenna on a rubber roof, Winegard recommends using Model SKA-004 roller plate, which is designed to create a solid landing area for the roller. If not using this plate, make sure that the roller does not come in contact with any rib supports or bubbles in the roof when in operation.
Page 6: Installing The Gps Antenna
Installing the GPS Antenna The GPS antenna is connected to the TRAV’LER antenna via a 6’ cable running to port E on the TRAV’LER mount base. 1. To install the antenna, find an open area at least 18” from either side of the mount base. 2.
Page 7 Installing the Reflector, LNBF, & Feed Arm Note that the reflector, LNBF, and feed arm are packaged separately as SKA-733. 1. Press and hold “POWER” for two seconds to turn on the interface box. Wait until the interface box finishes “connecting to antenna.”...
Page 8 Winegard Company, 3000 Kirkwood Street, Burlington, Iowa 52601, Telephone 800-288-8094 or visit www.winegard.com). Customer must provide proof of purchase with a dated sales receipt for the Winegard product to verify the product is under warranty. If the date of purchase cannot be verified, the warranty period shall be considered to begin thirty (30) days after the date of manufacture.
Page 9 Shaw Direct Antenna ® www.winegard.com/mobile For Technical Services, email help@winegard.com or call 1-800-788-4417 Product Registration Please register your Winegard product by filling out and returning the Product Registration Card provided or by completing the online registration form at http://www.winegard.com/registration. 2452293...
Page 10: Automatic Operation
TRAV’LER release “POWER.” the type of satellite dish on the interface displays “POWER ON.” top line. connecting to WINEGARD COMPANY LG Shaw Direct POWER ON antenna Ready: Multi-Sat 4. The TRAV’LER antenna will enter 5. The antenna will find its home 6.
Page 11: Manual Operation
Enter button to Press the Enter button to choose two seconds. confirm the selection. Search Mode. Enter User Menu? WINEGARD COMPANY Search Mode* POWER ON *Yes No Diagnostics 4. In the Search menu, choose from 5. The interface will ask you to 6.
Page 12: Troubleshooting
1-800-788-4417. AZ MOTOR STALLED Something is preventing the mount from rotating; look for obstructions. If there is no obvious obstruction, contact Winegard Technical Support at help@ winegard.com or 1-800-788-4417. EL MOTOR STALLED Something is preventing the mount from raising or lowering; look for obstructions.
