VEVOR 15PBG-6A Instruction Manual

VEVOR 15PBG-6A Instruction Manual

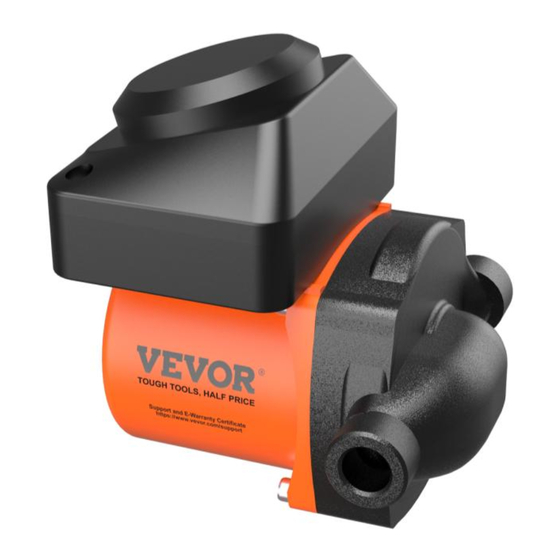

Shielded circulating pipeline pump

Advertisement

Available languages

Available languages

Technical Support and E-Warranty Certificate www.vevor.com/support
SHIELDED CIRCULATING PIPELINE PUMP
INSTRUCTION MANUAL
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 15PBG-6A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for VEVOR 15PBG-6A

  • Page 1 Technical Support and E-Warranty Certificate www.vevor.com/support SHIELDED CIRCULATING PIPELINE PUMP INSTRUCTION MANUAL We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and doses not necessarily mean to cover all categories of tools offered by us.
  • Page 2 CustomerService@vevor.com This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.
  • Page 3 Please read this guide carefully before you use this type of pump. USUAL FAULT & MEASURE FAULT REASON MEASURE Poor wire contact Reconnect Broken wire Replace the wire The pump Disassemble the pump can not Impeller stuck body to clean up debris start up Repair or replace the Motor fault...
  • Page 4: Pump Exhaust

    or directly contact our factory. PUMP EXHAUST ① Before using, please exhaust first. ② If the pump continues working one week for hot water circulation, please exhaust it one time per week. Exhaustion methods: At first, cut off the power and close the outer tap, then slowly twist the exhausting screw, and use the screwdriver to turn the pump shaft 15-30...
  • Page 5: Main Features

    of copper or stainless steel materials, which more sanitary household water. MAIN FEATURES 1. This pump adopts a shielding set of stainless steel and keeps water away from electrical machinery completely. A mechanical seal is not required, thus completely solving pump leaking. Adopted the ceramic bearing, stainless steel shaft, friction-resistant, corrosion-resistant, automatic water circulation, it can be used for cooling lubricating motor, also for lubricating the bearing and the motor won’t be damaged even...
  • Page 6: Product Accessories

    All above are only suitable for altitudes 300 m, much higher 100 m by 0.01 bar adding. To avoid air-causticity, which makes noise, you should keep min. Pressure limitation. The pump must be working at a rated voltage range of ±10%. If the voltage is too low, the pump will come out low speed or hardly start up, easily heating, lower head and pressure.
  • Page 7 SPECIAL WARNING Before using, the pump must be reliable earth touch. Don´t change the three-core wiring plug to avoid power leakage. To make sure everything is safe, please u must install some security measures, such as the power leakage broker or electric shock blocker and so on. 1.
  • Page 8 PRECAUTION 1. When connecting to the power supply, let the pump work for several seconds to inspect whether the start-up is normal or not. But don’t let the pump work with no water for a long time to affect the ceramic bearing span. Special the self-auto water pump, in case of no water suddenly, u should pay more attention to avoid unnecessary loss.
  • Page 9 TIMER OPERATION INSTRUCTIONS This is a 24-hour programmable timer with 15-minute interval settings and 48 on/off cycles every day, ideal for home security and energy-saving applications. See the steps below: 1. Correct the present time first. Rotate the dial in a clockwise direction, and make the arrow point to the present time.
  • Page 10: Installation Sketch Map

    'I' = timer will be permanently ON; ' = timer will work to the set program; 'O' = timer will be permanently OFF; ●Indoor use only. USE OCCASION INSTALLATION SKETCH MAP - 9 -...
  • Page 11: Performance Parameter

    2880 INSTALLATION DIMENSION Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai Imported to the USA: VEVOR STORE INC, 9448 RINCHMOND PL #E RANCHO CUCAMONGA, California, 91730 United States of America Pooledas Group Ltd Unit 5 Albert Edward House, The Pavilions Preston, United Kingdom SHUNSHUN GmbH Römeräcker 9 Z2021, 76351...
  • Page 12 Technische Unterstützung und E-Garantie-Zertifikat www.vevor.com/support GESCHIRMTE ROHRLEITUNGSUMWÄLZPUMPE BEDIENUNGSANLEITUNG Wir sind kontinuierlich bestrebt, Ihnen Werkzeuge zu wettbewerbsfähigen Preisen zu liefern. „Um die Hälfte sparen“, „Halber Preis“ oder andere ähnliche Ausdrücke, die von uns verwendet werden, stellen nur einen Schätzwert für die Ersparnis dar, die Sie beim Kauf bestimmter Werkzeuge bei uns im Vergleich zu den großen Top-Marken erzielen können,...
  • Page 13 CustomerService@vevor.com Dies ist die Original-Bedienungsanleitung, bitte lesen Sie alle Anweisungen vor der Inbetriebnahme sorgfältig durch. VEVOR behält sich eine klare Auslegung unserer Bedienungsanleitung vor. Das Aussehen des Produkts entspricht dem Produkt, das Sie erhalten haben. Wir bitten um Ihr Verständnis, dass wir Sie nicht mehr informieren werden, wenn es irgendwelche Technologie- oder Software-Updates für unser Produkt gibt.
  • Page 14 Lesen Sie dieses Handbuch vor der Benutzung sorgfältig durch und bewahren Sie es zum späteren Nachschlagen auf. HÄUFIGE FEHLER & MASSNAHME FEHLER GRUND MASSNAHME Schlechter Kabelkontakt Erneute Verbindung Gebrochenes Kabel Replace the wire Demontieren Sie das Pumpe Pumpengehäuse, um Das Laufrad steckt fest kann nicht Schmutzpartikel zu anlaufen...
  • Page 15 1. Wenn Sie die Pumpe reparieren oder warten wollen, schließen Sie bitte die beidseitigen Hähne und lassen Sie die Pumpe abkühlen. Dann können Sie die Pumpe warten, ohne sich zu verbrühen oder den Dampf oder die heiße Flüssigkeit, die aus dem Innendrucksystem austritt, zu entfernen.
  • Page 16 HAUPTVERWENDUNG Geschirmte Rohrleitungspumpe eignet sich für Fußbodenheizungen, wie automatische Druck und zirkuliert für Wasserabscheider, Wasserkollektor, Kessel und hängenden Kessel; passend für wassergekühlte und zentrale Klimaanlagen; Wasserversorgung für die Waschmaschine, wenn niedriger Druck; erhöhen die Strömung und Druck für das Leitungswasser, Versorgung und zirkulieren Flüssigkeit für industrielle Anlagen.
  • Page 17 ARBEITSBEDINGUNG 1. Medium Transport Temperatur: 2℃ - +95℃ 2. Max. Umstand Temperatur: +40℃ 3. Medium Zustand: sauber, keine feste Substanz, kein Mineral & Öl Substanz, keine Klebrigkeit. 4. Chemie Zustand: in der Nähe von neutral, nicht-Ätzung, nicht-Explosion ähnliches Wasser (Glykol Max-Gehalt: 30%). 5.
  • Page 18 BESONDERE WARNUNG Die Pumpe muss vor dem Gebrauch zuverlässig geerdet werden. Tauschen Sie den dreipoligen Stecker nicht aus, da dies ein elektrisches Leck verursachen kann. Um die Sicherheit zu gewährleisten, müssen Sie einige Sicherheitsvorkehrungen, wie z. B. einen Fehlerstromschutzschalter oder einen Stromschlagblocker, installieren. 1.
  • Page 19 Innere gelangen. 4. Wenn Sie nach einigen Jahren normaler Nutzung Geräusche im Motor hören, tauschen Sie die interne Abschirmung umgehend aus, um Leckagen zu vermeiden, die zu einem elektrischen Schlag führen könnten. VORSICHTSMASSNAHMEN 1. Wenn Sie die Pumpe an die Stromversorgung anschließen, lassen Sie sie einige Sekunden lang laufen, um zu prüfen, ob der Startvorgang normal ist oder nicht.
  • Page 20 Schraube wieder an und prüfen Sie, ob die Dichtung in Ordnung ist oder nicht. TIMER-BETRIEBSANLEITUNG Es handelt sich um eine programmierbare 24-Stunden-Zeitschaltuhr mit 15-Minuten-Intervallen und 48 Ein- und Ausschaltzyklen pro Tag, die sich ideal für die Haussicherheit und Energiesparanwendungen eignet. Siehe die folgenden Schritte 1.
  • Page 21 HINWEISE: ●Es wird jeden Tag das gleiche Programm beibehalten, sofern es nicht geändert wird. ●Wenn das Gerät ausgeschaltet ist, müssen Sie die aktuelle Uhrzeit neu einstellen, wenn Sie es wieder verwenden. ●Achten Sie darauf, dass Sie die Zeitschaltuhr nicht selbst zerlegen. ●Wenn der Schalter in Richtung: 'I' = Der Timer wird dauerhaft eingeschaltet;...
  • Page 22 INSTALLATIONSPLAN Die Pumpe muss die Rotorwelle in horizontaler Lage halten. LEISTUNGSPARAMETER Max. Max. Spannung/ Geschwindigkeit Modell Power (W) Durchfluss Förderhöhe (V/ Hz) (U/min) (L/min) 15PBG - 6A 110/60 6 . 6 3500 15PBG - 6B 220/ 50 6 . 6 2880 - 21 -...
  • Page 23 EINBAUMASS Adresse: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai Importiert nach Deutschland: VEVOR STORE INC, 9448 RINCHMOND PL #E RANCHO CUCAMONGA, California, 91730 United States of America Pooledas Group Ltd Unit 5 Albert Edward House, The Pavilions Preston, United Kingdom SHUNSHUN GmbH Römeräcker 9 Z2021, 76351...
  • Page 24 Technische Unterstützung und E-Garantie-Zertifika www.vevor.com/support...
