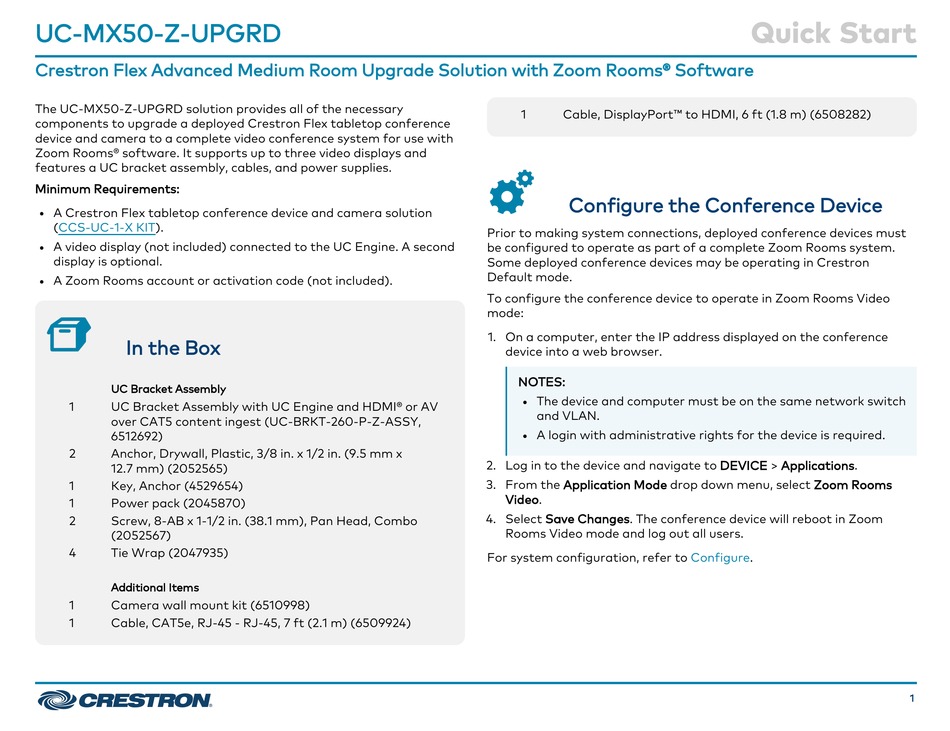

UC-MX50-Z-UPGRD
Crestron Flex Advanced Medium Room Upgrade Solution with Zoom Rooms® Software
The UC-MX50-Z-UPGRD solution provides all of the necessary
components to upgrade a deployed Crestron Flex tabletop conference
device and camera to a complete video conference system for use with
Zoom Rooms® software. It supports up to three video displays and
features a UC bracket assembly, cables, and power supplies.
Minimum Requirements:
A Crestron Flex tabletop conference device and camera solution
l
(CCS-UC-1-X KIT).
A video display (not included) connected to the UC Engine. A second
l
display is optional.
A Zoom Rooms account or activation code (not included).
l
In the Box

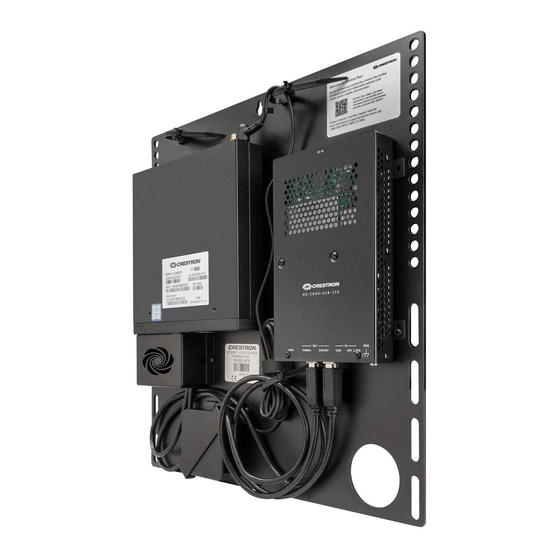

UC Bracket Assembly
1
UC Bracket Assembly with UC Engine and HDMI® or AV
over CAT5 content ingest (UC-BRKT-260-P-Z-ASSY,
6512692)
2
Anchor, Drywall, Plastic, 3/8 in. x 1/2 in. (9.5 mm x
12.7 mm) (2052565)
1
Key, Anchor (4529654)
1
Power pack (2045870)
2
Screw, 8-AB x 1-1/2 in. (38.1 mm), Pan Head, Combo
(2052567)
4
Tie Wrap (2047935)
Additional Items
1
Camera wall mount kit (6510998)
1
Cable, CAT5e, RJ-45 - RJ-45, 7 ft (2.1 m) (6509924)
1
Cable, DisplayPort™ to HDMI, 6 ft (1.8 m) (6508282)
Configure the Conference Device
Prior to making system connections, deployed conference devices must
be configured to operate as part of a complete Zoom Rooms system.
Some deployed conference devices may be operating in Crestron
Default mode.
To configure the conference device to operate in Zoom Rooms Video
mode:
1. On a computer, enter the IP address displayed on the conference
device into a web browser.
NOTES:
The device and computer must be on the same network switch
l
and VLAN.
A login with administrative rights for the device is required.
l
2. Log in to the device and navigate to DEVICE > Applications.
3. From the Application Mode drop down menu, select Zoom Rooms
Video.
4. Select Save Changes. The conference device will reboot in Zoom
Rooms Video mode and log out all users.
For system configuration, refer to Configure.
Quick Start
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UC-MX50-Z-UPGRD and is the answer not in the manual?

Questions and answers

Related Manuals for Crestron UC-MX50-Z-UPGRD

Summary of Contents for Crestron UC-MX50-Z-UPGRD

  • Page 1 Quick Start UC-MX50-Z-UPGRD Crestron Flex Advanced Medium Room Upgrade Solution with Zoom Rooms® Software The UC-MX50-Z-UPGRD solution provides all of the necessary Cable, DisplayPort™ to HDMI, 6 ft (1.8 m) (6508282) components to upgrade a deployed Crestron Flex tabletop conference device and camera to a complete video conference system for use with Zoom Rooms®...

  • Page 2: Mount Devices

    Quick Start UC-MX50-Z-UPGRD Crestron Flex Advanced Medium Room Upgrade Solution with Zoom Rooms® Software Mount Devices Mount the UC Bracket Assembly Mount the UC Bracket Assembly to VESA® compliant display devices, a wall, or other building structure. Anchors and screws are supplied for installation on walls with 3/8 in.

  • Page 3: System Overview

    Quick Start UC-MX50-Z-UPGRD Crestron Flex Advanced Medium Room Upgrade Solution with Zoom Rooms® Software Connect System Overview When connections are complete, the system appears as shown below. Refer to Make Connections for detailed connection instructions.

  • Page 4: Make Connections

    Quick Start UC-MX50-Z-UPGRD Crestron Flex Advanced Medium Room Upgrade Solution with Zoom Rooms® Software Make Connections 1. Make UC Engine connections as shown in the following illustration.
  • Page 5 Quick Start UC-MX50-Z-UPGRD Crestron Flex Advanced Medium Room Upgrade Solution with Zoom Rooms® Software 2. Connect the power supply and camera to the bottom of the content ingest device (HD-CONV-USB-260). Connect the power supply to an AC power outlet.
  • Page 6 Quick Start UC-MX50-Z-UPGRD Crestron Flex Advanced Medium Room Upgrade Solution with Zoom Rooms® Software 2. Make network, content ingest, laptop, and power connections on the bottom of the conference device. Connect the conference device's power supply to an AC power outlet.

  • Page 7: Apply Power

    Quick Start UC-MX50-Z-UPGRD Crestron Flex Advanced Medium Room Upgrade Solution with Zoom Rooms® Software 1. On a computer, enter the IP address displayed on the conference device into a web browser. Bundle Cables NOTES: Bundle the cables together and use a provided tie wrap to secure the...

  • Page 8: Configure The System

    Quick Start UC-MX50-Z-UPGRD Crestron Flex Advanced Medium Room Upgrade Solution with Zoom Rooms® Software 4. On the UC Engine, connect a USB keyboard and mouse (not included) 7. On the conference device, tap Settings. If a password is required, to sign in to the Zoom Rooms service with an activation code or sign- enter the password (the default password is "1234").
