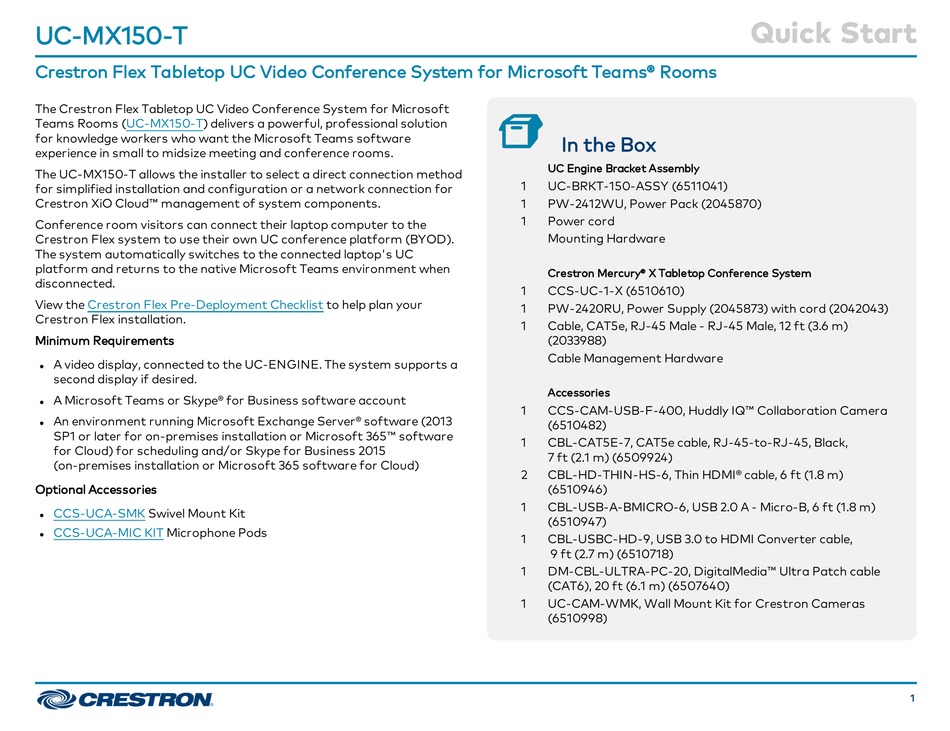

UC-MX150-T
Crestron Flex Tabletop UC Video Conference System for Microsoft Teams® Rooms
The Crestron Flex Tabletop UC Video Conference System for Microsoft
Teams Rooms (UC-MX150-T) delivers a powerful, professional solution
for knowledge workers who want the Microsoft Teams software
experience in small to midsize meeting and conference rooms.
The UC-MX150-T allows the installer to select a direct connection method
for simplified installation and configuration or a network connection for
Crestron XiO Cloud™ management of system components.
Conference room visitors can connect their laptop computer to the
Crestron Flex system to use their own UC conference platform (BYOD).
The system automatically switches to the connected laptop's UC
platform and returns to the native Microsoft Teams environment when
disconnected.
View the
Crestron Flex Pre-Deployment Checklist
Crestron Flex installation.
Minimum Requirements
A video display, connected to the UC-ENGINE. The system supports a
l
second display if desired.
A Microsoft Teams or Skype® for Business software account
l
An environment running Microsoft Exchange Server® software (2013
l
SP1 or later for on-premises installation or Microsoft 365™ software
for Cloud) for scheduling and/or Skype for Business 2015
(on-premises installation or Microsoft 365 software for Cloud)
Optional Accessories
CCS-UCA-SMK
Swivel Mount Kit
l
CCS-UCA-MIC KIT
Microphone Pods
l
to help plan your
In the Box
UC Engine Bracket Assembly
1
UC-BRKT-150-ASSY (6511041)
1
PW-2412WU, Power Pack (2045870)
1
Power cord
Mounting Hardware
Crestron Mercury® X Tabletop Conference System
1
CCS-UC-1-X (6510610)
1
PW-2420RU, Power Supply (2045873) with cord (2042043)
1
Cable, CAT5e, RJ-45 Male - RJ-45 Male, 12 ft (3.6 m)
(2033988)
Cable Management Hardware
Accessories
1
CCS-CAM-USB-F-400, Huddly IQ™ Collaboration Camera
(6510482)
1
CBL-CAT5E-7, CAT5e cable, RJ-45-to-RJ-45, Black,
7 ft (2.1 m) (6509924)
2
CBL-HD-THIN-HS-6, Thin HDMI® cable, 6 ft (1.8 m)
(6510946)
1
CBL-USB-A-BMICRO-6, USB 2.0 A - Micro-B, 6 ft (1.8 m)
(6510947)
1
CBL-USBC-HD-9, USB 3.0 to HDMI Converter cable,
9 ft (2.7 m) (6510718)
1
DM-CBL-ULTRA-PC-20, DigitalMedia™ Ultra Patch cable
(CAT6), 20 ft (6.1 m) (6507640)
1
UC-CAM-WMK, Wall Mount Kit for Crestron Cameras
(6510998)
Quick Start
1
Advertisement
Related Manuals for Crestron UC-MX150-T
Summary of Contents for Crestron UC-MX150-T
- Page 1 In the Box experience in small to midsize meeting and conference rooms. UC Engine Bracket Assembly The UC-MX150-T allows the installer to select a direct connection method UC-BRKT-150-ASSY (6511041) for simplified installation and configuration or a network connection for Crestron XiO Cloud™ management of system components.
- Page 2 Overview The following diagram illustrates standard system connections. In addition, two different connection methods for the CCS-UC-1-X (Crestron Mercury X device) are available — direct or network connection. Both the direct connection and network connection methods are shown below to help determine the appropriate method for your solution.
- Page 3 1. Remove the connector covers prior to making UC-ENGINE Choose a direct connection to the UC-ENGINE for simple connections on the bracket assembly. installation and setup. Choose a network connection if the Crestron Mercury X device is to be managed by the Crestron XiO Cloud service.
- Page 4 For simplified installation and configuration, use a direct Ethernet connection between the LAN port on the Crestron Mercury X device and the USB-to-RJ-45 Ethernet Adapter on the top of the UC-ENGINE. NOTE: If the Crestron Mercury X device is to be managed by the Crestron XiO Cloud service, a network connection must be used as shown on the following page.
- Page 5 Crestron Flex Tabletop UC Video Conference System for Microsoft Teams® Rooms Network Connection Use the network connection for full network control of the Crestron Mercury X device with the Crestron XiO Cloud™ service. The LAN port on the Crestron Mercury X device connects to the UC-ENGINE over the VLAN.
- Page 6 Quick Start UC-MX150-T Crestron Flex Tabletop UC Video Conference System for Microsoft Teams® Rooms 3. Connect the display devices and camera to components on the bracket assembly as shown below.
-
Page 7: Complete The Installation
Quick Start UC-MX150-T Crestron Flex Tabletop UC Video Conference System for Microsoft Teams® Rooms 4. Bundle the cables with the integrated cable tie wraps. The cable tie wraps are reusable. Complete the Installation After completing UC-ENGINE connections, secure the connector covers using a #1 Phillips head screwdriver to replace the screws. -
Page 8: Apply Power
Flex UC Video Conference Systems Supplemental Guide (Doc. 8360). same network switch and VLAN. A login with administrative rights for the Crestron Mercury X device is required. 3. Log in to the Crestron Mercury X device and navigate to DEVICE > Applications. - Page 9 Crestron disclaims any proprietary interest in the marks and names of others. Crestron is not responsible for errors in typography or photography.
