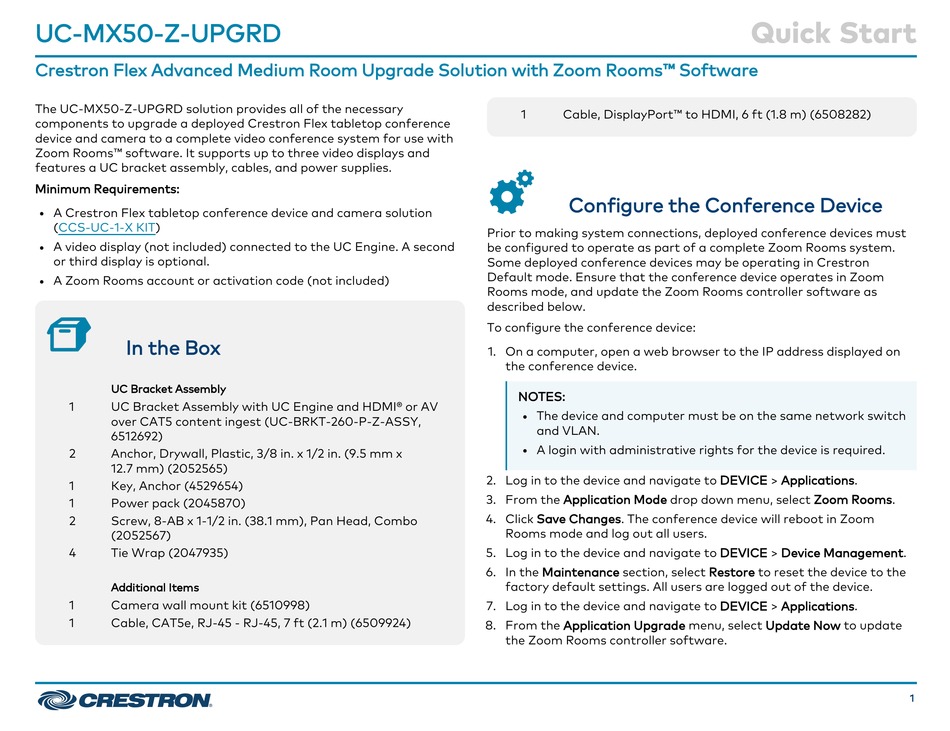

UC-MX50-Z-UPGRD
Crestron Flex Advanced Medium Room Upgrade Solution with Zoom Rooms™ Software
The UC-MX50-Z-UPGRD solution provides all of the necessary
components to upgrade a deployed Crestron Flex tabletop conference
device and camera to a complete video conference system for use with
Zoom Rooms™ software. It supports up to three video displays and
features a UC bracket assembly, cables, and power supplies.
Minimum Requirements:
A Crestron Flex tabletop conference device and camera solution
l
(CCS-UC-1-X KIT)
A video display (not included) connected to the UC Engine. A second
l
or third display is optional.
A Zoom Rooms account or activation code (not included)
l
In the Box

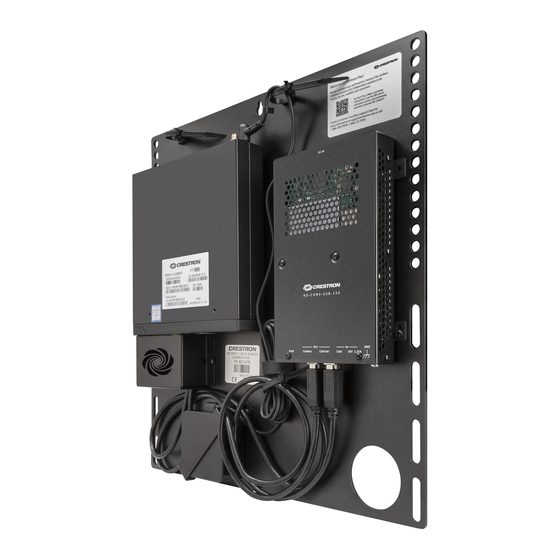

UC Bracket Assembly
1 UC Bracket Assembly with UC Engine and HDMI® or AV
over CAT5 content ingest (UC-BRKT-260-P-Z-ASSY,
6512692)
2 Anchor, Drywall, Plastic, 3/8 in. x 1/2 in. (9.5 mm x
12.7 mm) (2052565)
1 Key, Anchor (4529654)
1 Power pack (2045870)
2 Screw, 8-AB x 1-1/2 in. (38.1 mm), Pan Head, Combo
(2052567)
4 Tie Wrap (2047935)
Additional Items
1 Camera wall mount kit (6510998)
1 Cable, CAT5e, RJ-45 - RJ-45, 7 ft (2.1 m) (6509924)
1 Cable, DisplayPort™ to HDMI, 6 ft (1.8 m) (6508282)
Configure the Conference Device
Prior to making system connections, deployed conference devices must
be configured to operate as part of a complete Zoom Rooms system.
Some deployed conference devices may be operating in Crestron
Default mode. Ensure that the conference device operates in Zoom
Rooms mode, and update the Zoom Rooms controller software as
described below.
To configure the conference device:
1. On a computer, open a web browser to the IP address displayed on
the conference device.
NOTES:
The device and computer must be on the same network switch
l
and VLAN.
A login with administrative rights for the device is required.
l
2. Log in to the device and navigate to DEVICE > Applications.
3. From the Application Mode drop down menu, select Zoom Rooms.
4. Click Save Changes. The conference device will reboot in Zoom
Rooms mode and log out all users.
5. Log in to the device and navigate to DEVICE > Device Management.
6. In the Maintenance section, select Restore to reset the device to the
factory default settings. All users are logged out of the device.
7. Log in to the device and navigate to DEVICE > Applications.
8. From the Application Upgrade menu, select Update Now to update
the Zoom Rooms controller software.
Quick Start
1
