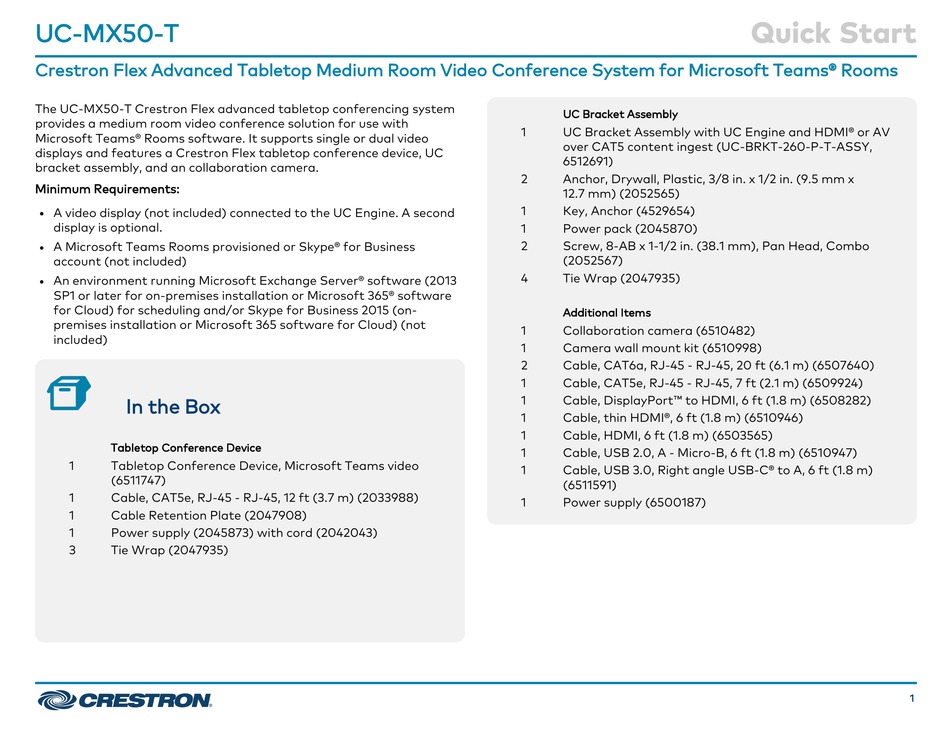

Crestron UC-MX50-T Quick Start Manual

UC-MX50-T
Crestron Flex Advanced Tabletop Medium Room Video Conference System for Microsoft Teams® Rooms

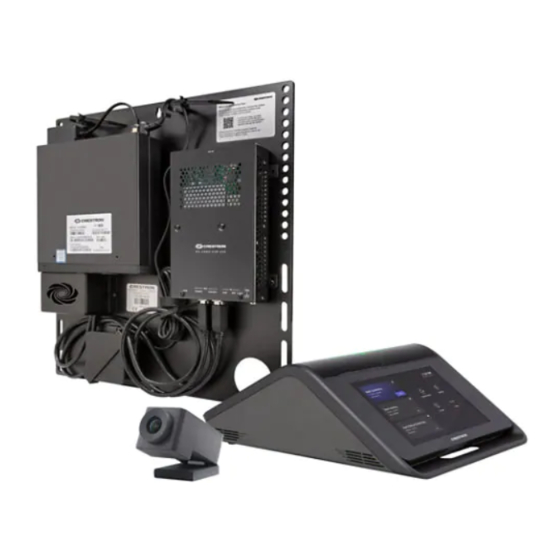

The UC-MX50-T Crestron Flex advanced tabletop conferencing system
provides a medium room video conference solution for use with
Microsoft Teams® Rooms software. It supports single or dual video
displays and features a Crestron Flex tabletop conference device, UC
bracket assembly, and an collaboration camera.
Minimum Requirements:
A video display (not included) connected to the UC Engine. A second
l
display is optional.
A Microsoft Teams Rooms provisioned or Skype® for Business
l
account (not included)
An environment running Microsoft Exchange Server® software (2013
l
SP1 or later for on-premises installation or Microsoft 365® software
for Cloud) for scheduling and/or Skype for Business 2015 (on-
premises installation or Microsoft 365 software for Cloud) (not
included)
In the Box
Tabletop Conference Device
1 Tabletop Conference Device, Microsoft Teams video
(6511747)
1 Cable, CAT5e, RJ-45 - RJ-45, 12 ft (3.7 m) (2033988)
1 Cable Retention Plate (2047908)
1 Power supply (2045873) with cord (2042043)
3 Tie Wrap (2047935)
UC Bracket Assembly
1 UC Bracket Assembly with UC Engine and HDMI® or AV
over CAT5 content ingest (UC-BRKT-260-P-T-ASSY,
6512691)
2 Anchor, Drywall, Plastic, 3/8 in. x 1/2 in. (9.5 mm x
12.7 mm) (2052565)
1 Key, Anchor (4529654)
1 Power pack (2045870)
2 Screw, 8-AB x 1-1/2 in. (38.1 mm), Pan Head, Combo
(2052567)
4 Tie Wrap (2047935)
Additional Items
1 Collaboration camera (6510482)
1 Camera wall mount kit (6510998)
2 Cable, CAT6a, RJ-45 - RJ-45, 20 ft (6.1 m) (6507640)
1 Cable, CAT5e, RJ-45 - RJ-45, 7 ft (2.1 m) (6509924)
1 Cable, DisplayPort™ to HDMI, 6 ft (1.8 m) (6508282)
1 Cable, thin HDMI®, 6 ft (1.8 m) (6510946)
1 Cable, HDMI, 6 ft (1.8 m) (6503565)
1 Cable, USB 2.0, A - Micro-B, 6 ft (1.8 m) (6510947)
1 Cable, USB 3.0, Right angle USB-C® to A, 6 ft (1.8 m)
(6511591)
1 Power supply (6500187)
Quick Start
1
