EN

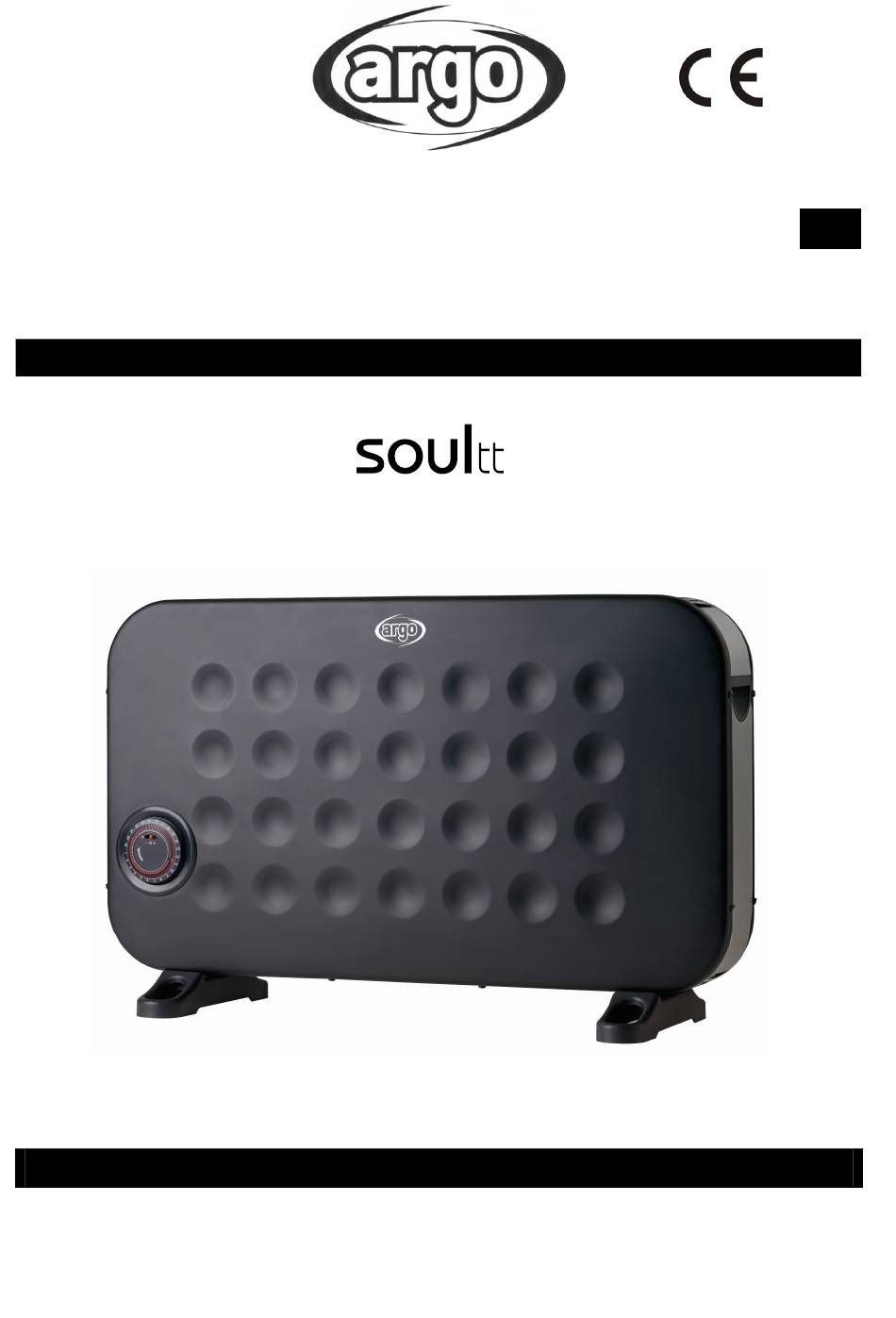

ELECTRIC CONVECTOR HEATER
OPERATING INSTRUCTIONS
Read the instructions carefully before installing and operating the appliance or performing
maintenance operations. Observe all the safety instructions; failure to observe the instructions may
cause accidents and/or damages. Store these instructions for future reference.
V 06/13
7
Advertisement
Table of Contents
Related Manuals for Argo Soultt
Summary of Contents for Argo Soultt
- Page 1 ELECTRIC CONVECTOR HEATER OPERATING INSTRUCTIONS Read the instructions carefully before installing and operating the appliance or performing maintenance operations. Observe all the safety instructions; failure to observe the instructions may cause accidents and/or damages. Store these instructions for future reference. V 06/13...
- Page 2 GENERAL SAFETY INFORMATION Use this convector only as outlined in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock or injury to people. Ensure that the mains power complies with the voltage specified on the convector data plate (220-240V~/50Hz). ...

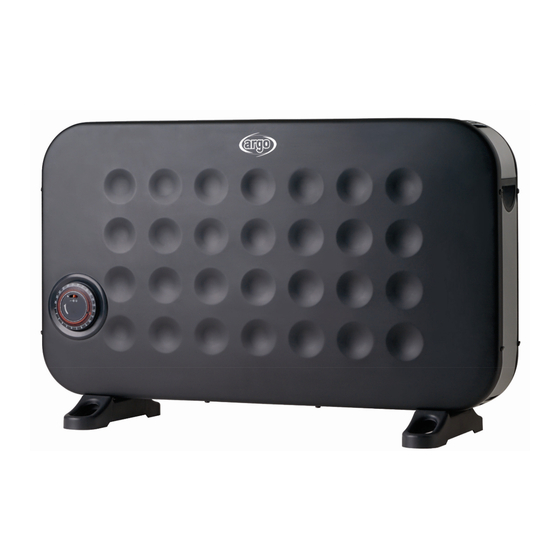

- Page 3 DESCRIPTION OF PARTS FRONT VIEW SIDE VIEW REAR VIEW A. Air delivery/air intake grille E. Power level selector and switch B. Feet F. Turbo switch (forced ventilation) C. 24 hours timer G. Room thermostat D. Side handles H. Rear holes for wall mounting HOW TO INSTALL THE APPLIANCE The convector can be used underfloor, after assembling the feet, or alternatively it can be wall-mounted using the specific accessories supplied.
- Page 4 1. Observe the minimum distances from the walls as 2. Mark on the wall with a pencil the points pointed out in the picture below. where it is necessary to make the holes in order to insert the Fishers. 3. Drill holes in the wall and insert the 4 Fisher rawlplugs. Screw up 2 of the 4 screws supplied into the 2 upper rawlplugs, keep the head of the screws out of the Fisher rawlplugs for 8 mm.
- Page 5 6. Insert the rear holes for wall mounting of the convector into the hooks on the wall, then fix the spacers at the base of the convector. HOW TO USE THE CONVECTOR Connect the power cord to a suitable electric socket (220-240V~/50Hz). Select the desired temperature using Then choose the power level desired through If desired, you can also...
- Page 6 TIMER The convector is equipped with a 24 hours timer, which counts 96 segments, each of which corresponds to 15 minutes and allows you to program the ignition and the operation of the convector during 24 hours. Red switch on 0 - Red switch on - Timer ON: OFF:...
