EN
WI LL IS

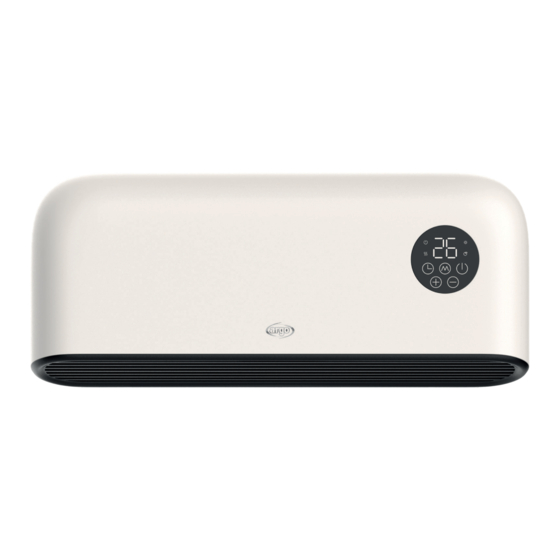

WALL-M OU NT ED C E R AM IC FAN H EAT ER
IP2 2
This product is only suitable for well
insulated spaces or occasional use.
OPERATING INSTRUCTIONS
Read the instructions carefully before operating the panel or carrying out maintenance operations.
Observe all the safety instructions; failure to observe the instructions may lead to accidents and/or damages.
Store these instructions.
V 07/22
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Argo WILLIS
Summary of Contents for Argo WILLIS
- Page 1 WI LL IS WALL-M OU NT ED C E R AM IC FAN H EAT ER IP2 2 This product is only suitable for well insulated spaces or occasional use. OPERATING INSTRUCTIONS Read the instructions carefully before operating the panel or carrying out maintenance operations. Observe all the safety instructions;...
-
Page 2: General Safety Information
GENERAL SAFETY INFORMATION • Use this fan heater only as outlined in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock or injury to persons. • Make sure that the type of mains power complies with the electrical requirements of the fan heater (230V~50-60 Hz). - Page 3 risk of fire if the fan heater is covered or incorrectly positioned. • The appliance is equipped with an IP22 degree of protection and can be used in private bathrooms in zone 2. • Do not restrict the air inlet and outlet grilles. •...
- Page 4 appliance. Remove accumulated dust, after taking the plug out, by cleaning the grilles using a vacuum cleaner. • Do not use any abrasive products to clean the appliance. Clean it using a damp (not wet) cloth rinsed in soapy water. Remove the plug from the socket before performing any maintenance.
-
Page 5: Description Of Parts
• This smell is a normal effect of the initial heating up of the internal heating elements, and should not recur subsequently. WARNING: THE ON/OFF SWITCH IS NOT THE ONLY METHOD OF DISCONNECTING THE MAINS POWER. ALWAYS UNPLUG THE APPLIANCE DURING MAINTENANCE OPERATIONS, WHEN MOVING IT OR WHILE IT IS NOT IN USE. -
Page 6: Control Panel
HOW TO INSTALL THE FAN HEATER 1) Drill holes on the wall according to the instructions inside the box. Warning: Be sure to keep safe distances as shown in the drawing above. 2) Insert the fixing tube into the hole and fix the bracket to the wall with the screws 3) Gently hang the unit on the bracket, after making sure that the unit is fixed correctly, rotate the lock in the bracket as in the image shown. - Page 7 Touch the buttons to turn on the fan heater, the factory default settings, on first use, are as follows: • Heating mode: COMFORT • Set temperature: 22 °C • Open window function disabled • Timer disabled To switch off the fan heater touch HEATING MODE BUTTON Touch the buttons to select the desired heating mode in the following circular sequence:...
- Page 8 Press the buttons to confirm the selected day and set the desired time. 3.The display will show press the buttons to set the time (00-23). Then press the button for select the heating mode for each hour of operation (the icons will appear on the display corresponding to the set mode COMFORT mode , ECO mode 4.
-
Page 9: Remote Controller
OFF TIMER FUNCTION Touch the button once, the corresponding LED on the control panel lights up and flashes on the display “0 H”; keep the button pressed, the display will show the shutdown interval: 2H - 4H - 8H. Or touch the buttons to set the sleep timer from 0 to 9 hours. -
Page 10: Maintenance And Storage
WARNINGS FOR BATTERIES • Batteries must not be exposed to heat sources such as fire, sun or similar sources; remove batteries if they start to heat up or if the appliance is not used for a long time • Batteries must be installed correctly in the appropriate battery compartment; •... - Page 11 Table 2 - Annex II - Ecodesign requirements - Mandatory product information - COMMISSION REGULATION (EU) 2015/1188 of 28 April 2015 laying down detailed rules for the application of Directive 2009/125/EC of the European Parliament and of the Council on ecodesign requirements for local space heaters. Model identifier(s): WILLIS Item Symbol...
- Page 12 INFORMATION FOR THE CORRECT DISPOSAL OF THE PRODUCT pursuant to art. 26 Legislative Decree 14/03/14, no. 49 “IMPLEMENTATION OF EUROPEAN DIRECTIVE 2012/19/EU ON WASTE FROM ELECTRICAL AND ELECTRONIC EQUIPMENT” At the end of its useful life, this appliance must not be disposed of with household waste. We recall the important role of the consumer in contributing to the reuse, recycling and other forms of recovery of such waste.
