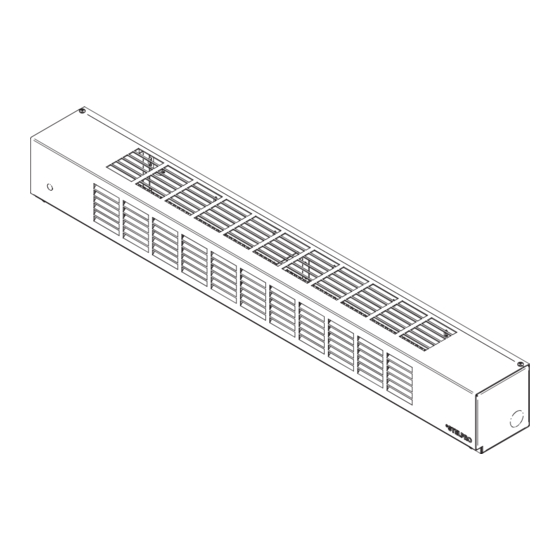

Patio door heater

Advertisement

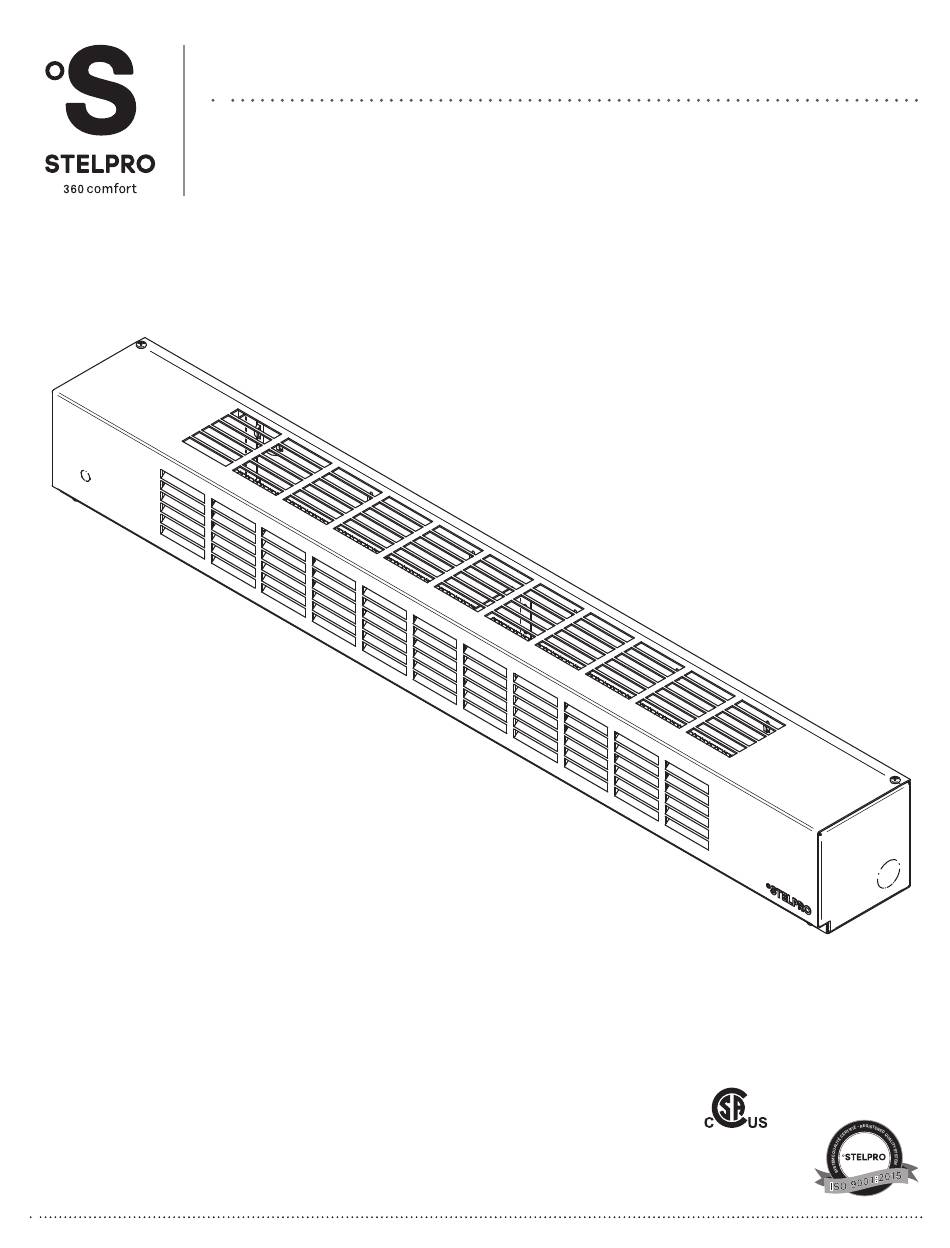

USER'S GUIDE
PDH SERIES
PATIO DOOR HEATER
For further information or to consult this guide online, please visit our website at www.stelpro.com
REPLACEMENT COMPONENT LIST INCLUDED
This unit
complies with
the CSA and
UL standards
INSPDH0217

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PDH0758W and is the answer not in the manual?

Questions and answers

Summary of Contents for Stelpro PDH0758W

  • Page 1 USER’S GUIDE PDH SERIES PATIO DOOR HEATER REPLACEMENT COMPONENT LIST INCLUDED This unit complies with the CSA and UL standards For further information or to consult this guide online, please visit our website at www.stelpro.com INSPDH0217...
  • Page 2: Important Instructions

    If needed, refer to a specialist (industrial and commercial buildings) who will be able to calculate these heat losses and optimize the required capacity or consult the “Online heating calculation” section of the Stelpro Design Web site (residential buildings).
  • Page 3 TECHNICAL DRAWINGS & INSTALLATION TECHNICAL DRAWINGS 7/8" 22mm 1 13/16" 46mm 1 1/2" 38mm 2 1/16" 3/8" 52mm 10mm 2 1/2" 63mm 4 1/16" LENGTH 103mm 7/8" 6 3/4" 22mm 171mm THERMOSTAT 1" 25mm 4 1/16" 3 1/2" 103mm 89mm 1 9/16"...
  • Page 4: Maintenance

    INSTALLATION, OPERATION, MAINTENANCE & TROUBLESHOOTING ELECTRICAL WIRING • This unit must be connected to a 240 volt power source. • To ground the heater, you must connect the green wire coming from the circuit breaker panel to the green screw located inside the junction box of the heater. ELECTRICAL DIAGRAM Thermal Element...
  • Page 5 REPLACEMENT COMPONENT LIST REPLACEMENT COMPONENT LIST REF. # PART # DESCRIPTION EH0500-*** ELEMENT 500W EH0750-*** ELEMENT 750W EH1000-*** ELEMENT 1000W EH1250-*** ELEMENT 1250W EH1500-*** ELEMENT 1500W EH1750-*** ELEMENT 1750W EH2000-*** ELEMENT 2000W M-PDH0508Z1 FRONT COVER (500 W) M-PDH0708Z1 FRONT COVER (750 W) M-PDH1008Z1 FRONT COVER (1000 W) M-PDH1208Z1...
  • Page 6: Limited Warranty

    . Stelpro reserves the right to examine or to ask one of its representatives to examine the product itself or any part of it before honoring the warranty. Stelpro reserves the right to replace the entire unit, refund its purchase price or repair a defective part.
