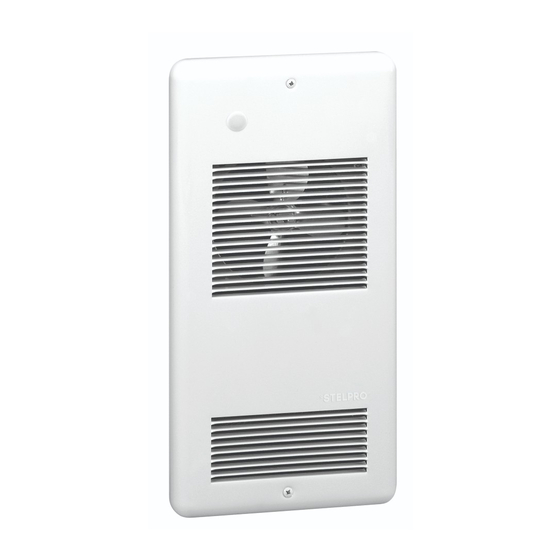

Stelpro pulsair RWF Series User Manual

USER'S GUIDE
RWF SERIES
WALL FAN HEATER
WARNING
Before installing and operating this product, the user and/or installer must read, understand and follow these instructions and keep them handy for future refer-
ence. If these instructions are not followed, the warranty will be considered null and void and the manufacturer deems no further responsibility for this product.
This product must be installed by a qualified person and connected by a
effective in your region.
The following instructions must be adhered to in order to avoid personal injuries or property damages, serious injuries and potentially fatal electric shocks.
Protect the heating unit with the appropriate circuit breaker or fuse, in accordance with the nameplate.
Make sure the line voltage (volt) is consistent with that indicated on the unit's nameplate.
grounded
This unit must be
Switch off the power at the circuit breaker/fuse before installing, repairing and cleaning the unit.
Make sure the unit is appropriate for the intended use (if needed, refer to the product catalog or a representative).
RECOMMENDED HEATING CAPACITY:
1,25 W/cubic foot (0.03 m³).
10 W/square foot (0.09 m²)
It corresponds to
for normal heating needs. Please note that the insulation quality of walls and windows are some of the factors that influence heat losses, which modify the
required capacity to heat a room. If needed, refer to a specialist who will be able to calculate these heat losses and optimize the required capacity or consult
the "Online heating calculation" section of the Stelpro Design Web site (residential buildings). To heat a large room and increase your comfort, it is recom-
mended to install several units instead of one. For example, 2 X 1000 W rather than 1 X 2000 W.
For further information or to consult this guide online, please visit our website at www.stelpro.com
