www.stelpro.com

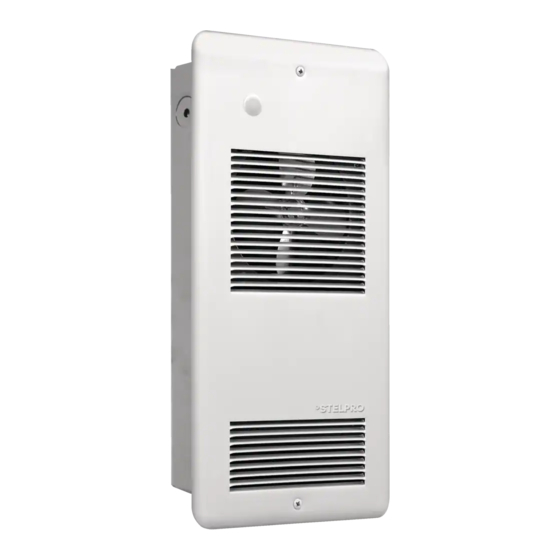

User's guide
"ARWF" series
Wall fan heater
Replacement Component List included
This unit complies with
the CSA and UL standards
For further information or to consult this guide on line, please visit our Web site.
INSARWF0509
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Stelpro ARWF series
Summary of Contents for Stelpro ARWF series
- Page 1 User’s guide “ARWF” series Wall fan heater Replacement component list included This unit complies with the CSA and UL standards For further information or to consult this guide on line, please visit our Web site. INSARWF0509...
- Page 2 If needed, refer to a specialist who will be able to calculate these heat losses and optimize the required capacity or consult the “Online heating calculation” section of the Stelpro Design Web site (residential buildings). To heat a large room and increase your comfort, it is recommended to install several units instead of one.
-
Page 3: Specifications
SPECIFICATIONS WALL FAN HEATER MODEL ARWF VOLTS 120, 208, 240, 277, 347 V WATTS 500 to 2000 W WEIGHT 6 lb/2.7 kg DEPTH 3 1/4”/82 mm WIDTH 8 11/16”/220 mm HEIGHT 17 1/8”/435 mm TECHNICAL DRAWINGS INSTALLATION N.B. Cut off power supply at circuit breaker/fuse before proceeding to installation. INSARWF0509... - Page 4 INSTALLATION OF THE BACK BOX IN A NEW BUILDING WARNING: When installing unit on a ceiling, leave a clearance space of at least 12” between the unit and adjacent walls. Note that it is impossible to install the RWF2000 (2000 W) series on a ceiling. For other installations, leave an 8-in clearance.
- Page 5 THERMOSTAT INSTALLATION - SINGLE POLE INTERNAL High Power Low Power BLACK BLACK BLACK BLACK THERMOSTAT INSTALLATION - DOUBLE POLE INTERNAL High Power Low Power BLACK BLACK BLACK BLACK THERMOSTAT INSTALLATION - SINGLE POLE EXTERNAL High Power Low Power BLACK BLACK THERMOSTAT THERMOSTAT THERMOSTAT INSTALLATION - DOUBLE POLE EXTERNAL...
-
Page 6: Troubleshooting
Important : Light Activation of the thermal protection is indicated by a light. It warns you that the heater has been subjected to abnormal conditions. If this occurs, it is highly recommended that the unit be disconnected and inspected by a qualified electrician in order to make sure it is not damaged. MAINTENANCE N.B. - Page 7 REPLACEMENT COMPONENT LIST N° DESCRIPTION ELF-RWF025 ELEMENT (KIT) 1250 W-277 V N° DESCRIPTION ELF-RWF026 ELEMENT (KIT) 1500 W-277 V BOUT-009 WHITE THERMOSTAT BUTTON ELF-RWF027 ELEMENT (KIT) 2000 W-277 V BOUT-010 BLACK THERMOSTAT BUTTON ELF-RWF028 ELEMENT (KIT) 500/1000 W-120 V BOUT-011 ALMOND THERMOSTAT BUTTON ELF-RWF029 ELEMENT (KIT) 750/1500 W-120 V...
-
Page 8: Limited Warranty
Stelpro reserves the right to examine or to ask one of its representatives to examine the product itself or any part of it before honoring the warranty. Stelpro reserves the right to replace the entire unit, refund its purchase price or repair a defective part.
