Chapter 6: Optional Components
Note: Consult the X13DET-B Motherboard Manual for more detailed information on setting
up Intel VMD.
Caution: VMD must only be enabled on NVMe port resources. If VMD is enabled on other
PCIe ports, the functionality of those ports will be impacted. See the table below.
4. Select "Intel VMD for Volume Management Device on" on Socket 0 (CPU1) or Socket 2
(CPU2) to enable VMD for devices under the respective CPU.

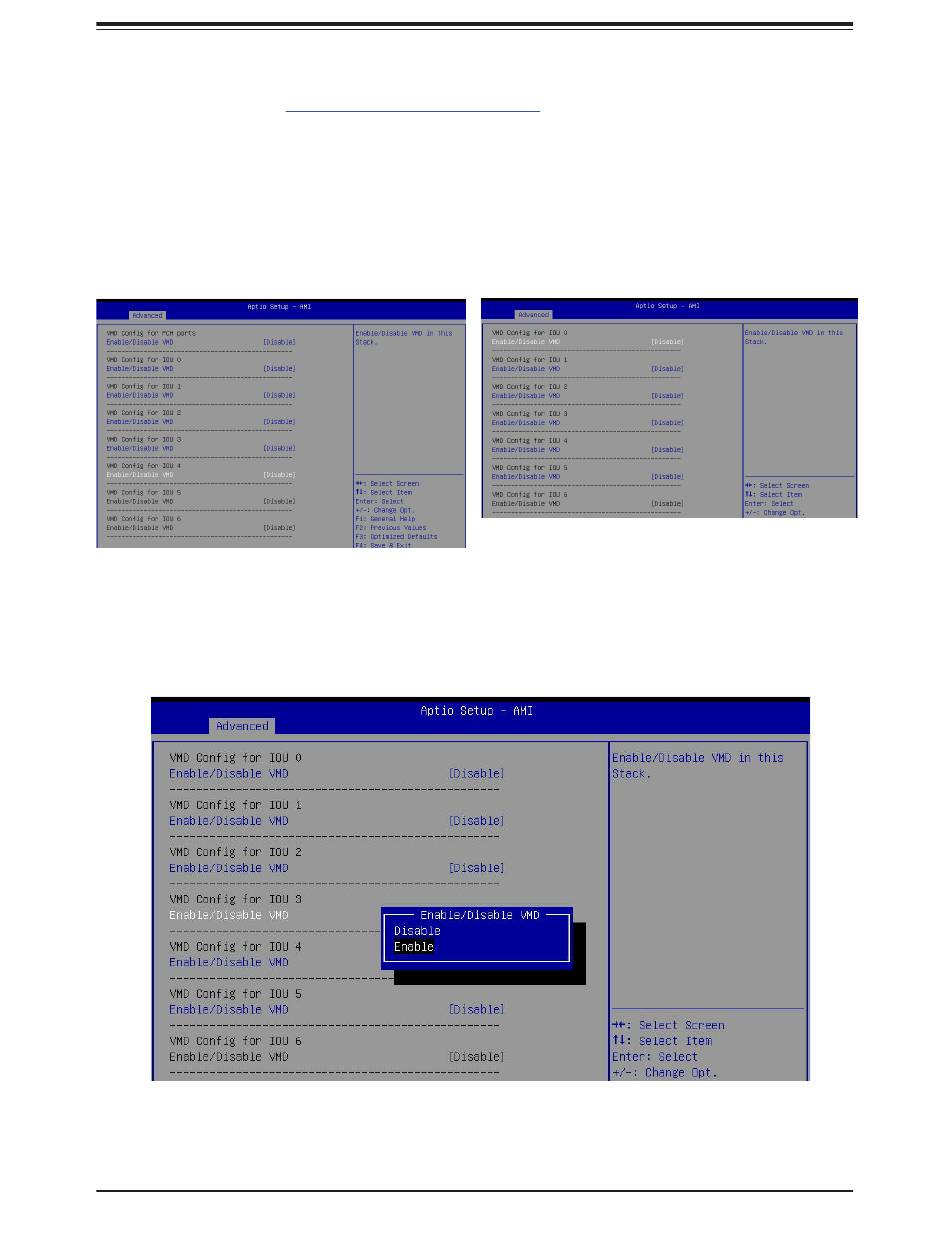

Figure 6-3. Intel VMD for Volume Management Device on Socket 0 and Socket 1
5. Choose Enable for "Enable/Disable VMD" for IOU 3 to list the available devices under
Figure 6-4. BIOS, Enabling VMD on Socket 1 (CPU2) (Example)
