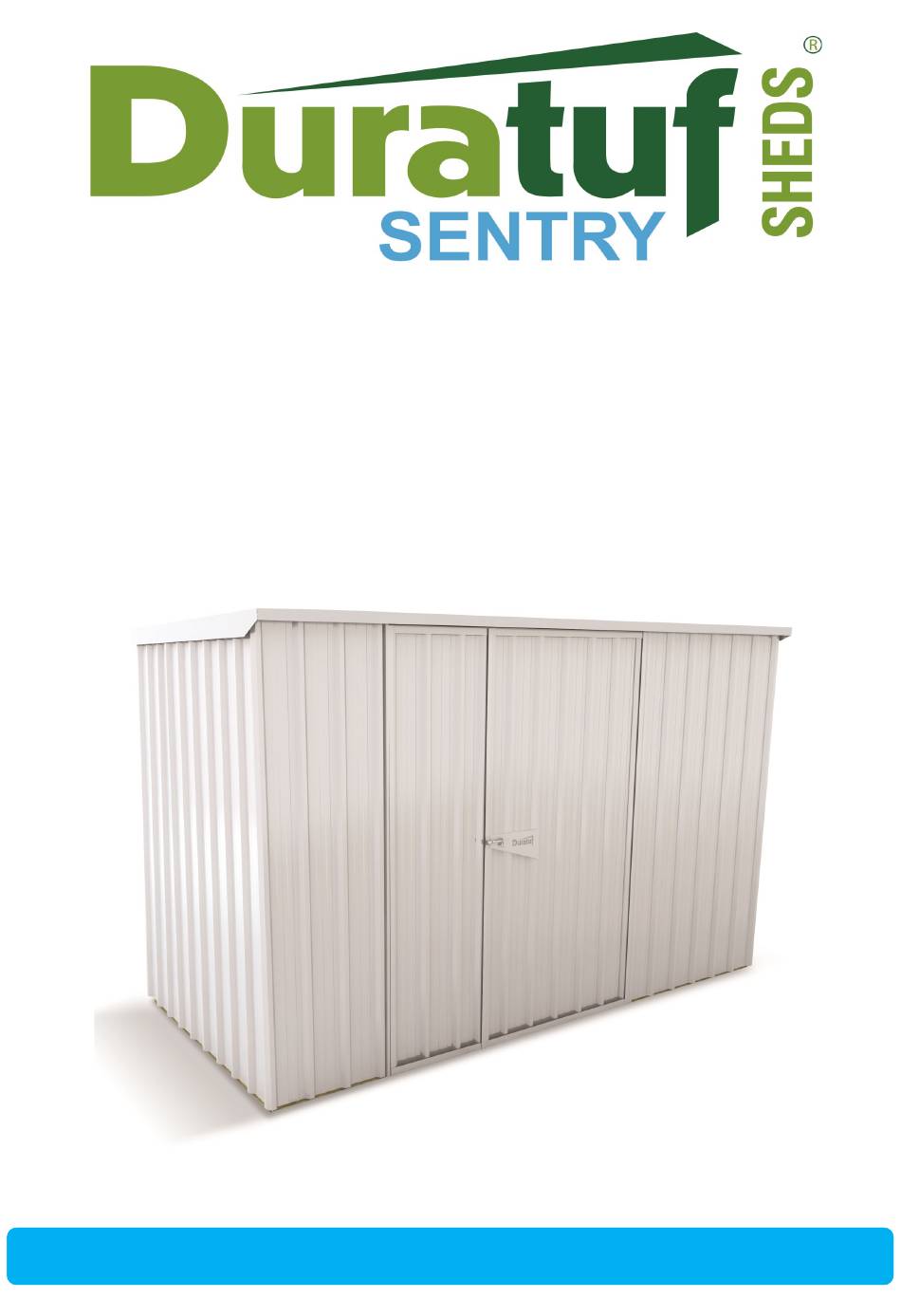

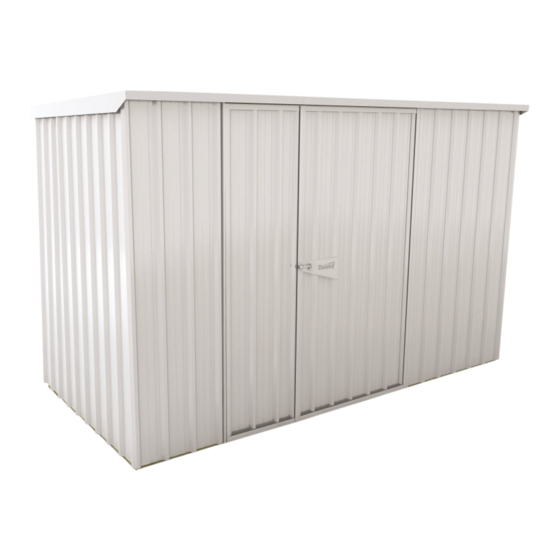

- Page 1 ASSEMBLY INSTRUCTIONS SL3015 BASE SIZE: 3.020m x 1.520m...
- Page 2 CHECK OUT OUR ASSEMBLY VIDEO...
-
Page 3: Before You Start
CONGRATULATIONS ON PURCHASING A DURATUF SENTRY SHED. BEFORE YOU BEGIN THE ASSEMBLY PLEASE NOTE SOME IMPORTANT POINTS: BEFORE YOU START: • Read all instructions carefully • Identify all parts and check quantities against parts list • Select a level site •... - Page 4 SL3015 PARTS LIST CLADDING + FLASHING + HARDWARE PACK 1 DESCRIPTION DIAGRAM CHECKED Front Wall - 1.890m Back Wall - 1.850m Side Wall - 1.850m Roof - 1.720m Door Sheet Narrow - 1.850m Door Sides - 1.850m Door Jamb - 1.890m Door Brace - 1.160m...
- Page 5 SL3015 PARTS LIST PACK 2 TIMBER PACK DESCRIPTION DIAGRAM Front/Back Bottom Plates - H4 (Green) 3.020 m Back Top Plate - H1 (Red) 3.020 m Front Top Plate - H1 (Red) 3.020 m Side Wall Bottom Plates - H4 (Green) 1.520m -...
-
Page 6: Parts Location
PARTS LOCATION Barge Flashing Roof Sheets Spouting Top Plate Side Back Wall Sheets Top Plate Back Top Plate Front Front Wall Sheets Hinge Door Sheets Door Jambs Door Brace Door Side Flashing Side Wall Sheets Bottom Plate Side Bottom Plate Front Front Wall Sheet Padbolt Support Door Top/Bottom Flashing... - Page 7 FOUNDATION No doubt by now you will have decided what sort of base you are putting down. Please read the section that applies to your situation. If you choose to pour a concrete base you will need to decide whether you wish to raise the base plate of your shed. This allows the cladding to protrude below the surface of the concrete and ensures a water tight pad.
- Page 8 ASSEMBLE DOOR SELECT: 3 x 1.850 m Door Sheets (Narrow) 2 x 0.945 m Door Top/Bottom Flashings 2 x 0.495m Door Top/Bottom Flashings 4 x 1.850 m Door Side Flashings 2 x 1.160m Door Brace Flashings 2 x 0.935m Door Brace Flashings 1 x 1.850m Weather Strip 1 x Padbolt Support Flashing fig.3...
- Page 9 ASSEMBLE SIDE PANELS IMPORTANT—IF YOU CHOOSE TO RAISE YOUR TIMBER SELECT: BASE PLATE –READ THE FOLLOWING; 6 x 1850 Wall Sheets For sheds with Raised Base Plate option only (see page 7), deduct 2 x 1.520 Top Plates (Red) 30mm from measurement shown between Top and Bottom Plates on 2 x 1.520 Bottom Plates (Green) all wall panels, so cladding protrudes 20mm below bottom plate 72 x 30mm Galv Clouts...
- Page 10 ASSEMBLE BACK PANEL IMPORTANT—IF YOU CHOOSE TO RAISE YOUR TIMBER SELECT: BASE PLATE –READ THE FOLLOWING; 6 x 1.850m Wall Sheets For sheds with Raised Base Plate option only (see page 7), deduct 1 x 3.020 m Top Plate (Red) 30mm from measurement shown between Top and Bottom Plates on 1 x 3.020 m Bottom Plate (Green) all wall panels, so cladding protrudes 20mm below bottom plate...
- Page 11 ASSEMBLE FRONT PANEL IMPORTANT—IF YOU CHOOSE TO RAISE YOUR TIMBER SELECT: BASE PLATE –READ THE FOLLOWING; 3 x 1.890 Wall Sheets For sheds with Raised Base Plate option only (see page 6), deduct 1 x 3.020 Top Plate (Red) 30mm from measurement shown between Top and Bottom Plates on 1 x 3.020 Bottom Plate (Green) all wall panels, so cladding protrudes 20mm below bottom plate 2 x 1.890 Door Jamb Flashings...
-
Page 12: Wall Panel Assembly
WALL PANEL ASSEMBLY SELECT: 4 x Pre-made Wall Panels 12 x 40mm Screws 40mm X 2 SIDE 4 x 75mm Screws OVERLAPS BACK 16 x Rivets TOP PLATE BACK WALL STEP 1: BOTTOM PLATE • Stand the Back Panel and the Side Panel up using someone to support the panels SIDE 40mm X 2... -
Page 13: Roof Assembly
ROOF ASSEMBLY IMPORTANT SELECT: Use 50mm Clouts only on outside ribs covered by Barge flashings. Predrill holes using a 3.5mm drill bit. Use Roofing Screws on all other ribs. Ensure 6 x 1.720 m Roof Sheets screws are not overtightened as this can damage the seals and cause the shed 1 x 3.055 m Spouting 2 x 1.720 m Barges to leak. - Page 14 Secure your shed using Treated Timber Pegs or a Bolt Down Kit TIMBER PEGS—WOODEN FLOOR • The optional Duratuf Timber Peg Down Kit includes six H5 treated timber pegs that can be hammered into the ground and then attached to the Base Plate with stainless steel screws.
-
Page 16: Year Warranty
20 YEAR WARRANTY Riverlea Group Ltd warrant that the cladding used in the manufacture of the Sentry shed will not rust within 20 years from the date of purchase. Any liability for product failure that may arise will be limited to repair or replacement of the defective product and will only apply for the benefit of the original purchaser.
